Запчасти Case IH 1212 (9-102) - HEATER AND VENTILATOR UNIT, SEKURA CAB (09) - CHASSIS/ATTACHMENTS

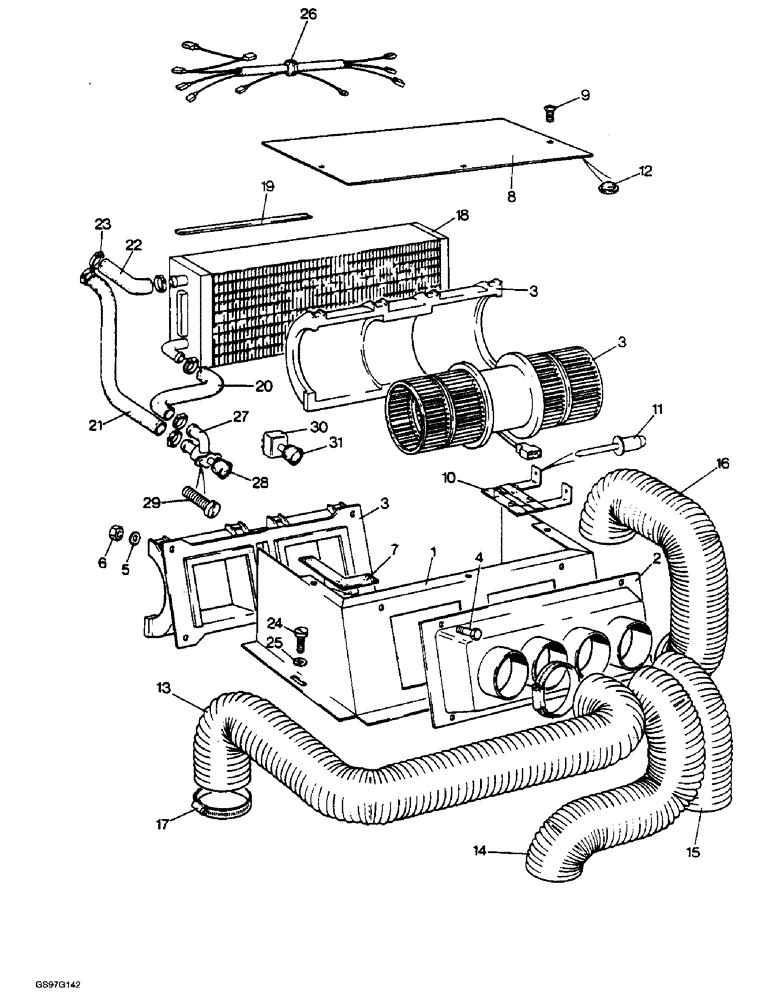

Схема запчастей Case IH 1212 - (9-102) - HEATER AND VENTILATOR UNIT, SEKURA CAB (09) - CHASSIS/ATTACHMENTS
23
3
6
27
21
30
7
13
14
25
18
29
2
22
11
24
8
10
19
31
9
4
16
3
26
20
3
15
17
1
12
5
28

Артикул

Название

Примечание

Количество

K965673

HEATER

AND VENTILATOR ASSEMBLY Sekura 40.897, no longer available, Includes: Ref. 1 - 26

1шт.

K965635

FAN

ASSEMBLY heater and ventilator, Sekura 40.676, no longer available, Includes: Ref. 1 - 17

1шт.

1

K965490

HOUSING

heater and ventilator, Sekura 20.665, no longer available

1шт.

2

K965489

BOX

distribution, Sekura 20.664, no longer available

1шт.

3

K965611

FAN

Sekura 961.037

1шт.

4

K965695

SCREW

set, distribution box to housing, M8 x 20 mm, Sekura 905.085, no longer available

4шт.

5

K965551

WASHER

flat, distribution box to housing, 5/16 inch, Sekura 912.091, no longer available

4шт.

6

K965678

NUT

hex, self-locking, M8, distribution box to housing, Sekura 910.082, no longer available

4шт.

7

K965588

FOAM

STRIP Sekura 931.015.680, no longer available

1шт.

8

K965654

COVER

top, Sekura 21.023, no longer available

1шт.

9

K965557

SCREW

self-tapping, Sekura 916.021, no longer available

3шт.

10

K965619

RESISTOR

heater and ventilator, Sekura 945.034, no longer available

1шт.

11

K965561

RIVET

3 x 10 mm, Sekura 916.010, no longer available

2шт.

12

K965690

STOP

rubber, Sekura 931.019, no longer available

2шт.

13

K965630

HOSE

flexible, heater and ventilator vents, Sekura 21.098, no longer available

1шт.

14

K965628

HOSE

flexible, heater and ventilator vents, Sekura 21.100, no longer available

1шт.

15

K965627

HOSE

flexible, heater and ventilator vents, Sekura 21.099, no longer available

1шт.

16

K965629

HOSE

flexible, heater and ventilator vents, Sekura 21.101, no longer available

1шт.

17

K965572

CLIP

hose, Sekura 918.007, no longer available

8шт.

K965670

RADIATOR

ASSEMBLY Sekura 40.675, no longer available, Includes: Ref. 18 - 23

1шт.

18

K965636

RADIATOR

Sekura 961.130, no longer available

1шт.

19

K965589

FOAM

STRIP Sekura 931.015.1280, no longer available

1шт.

20

K965624

HOSE

valve to radiator, 5/8 inch, Sekura 21.095, no longer available

1шт.

21

K965625

HOSE

inlet, 5/8 inch, Sekura 21.096, no longer available

1шт.

22

K965626

HOSE

outlet, 5/8 inch, Sekura 21.097, no longer available

1шт.

23

K965571

CLIP

hose, Sekura 918.772, no longer available

6шт.

24

K95536

SCREW housing to roof plate, Sekura 900.52

2шт.

25

K965556

WASHER

lock, housing to roof plate, Sekura 913.107, no longer available

2шт.

26

K965494

HARNESS

wiring, Sekura 40.677, no longer available

1шт.

27

K965634

COCK

VALVE regulating, Sekura 961.035, no longer available

1шт.

28

K965633

BUTTON

operating, regulating valve, Sekura 961.033, no longer available

1шт.

29

K965526

SCREW

regulating valve, Sekura 900.043, no longer available

2шт.

30

K965617

SWITCH

fan, Sekura 945.032, no longer available

1шт.

31

K965618

BUTTON

operating, Sekura 945.033, no longer available

1шт.

Выбрано товаров: 34
