Запчасти Case IH 1212 (9-096) - CAB HEATER SYSTEM, 1210SK AND 1212SK TRACTORS FOR EUROPE ONLY (09) - CHASSIS/ATTACHMENTS

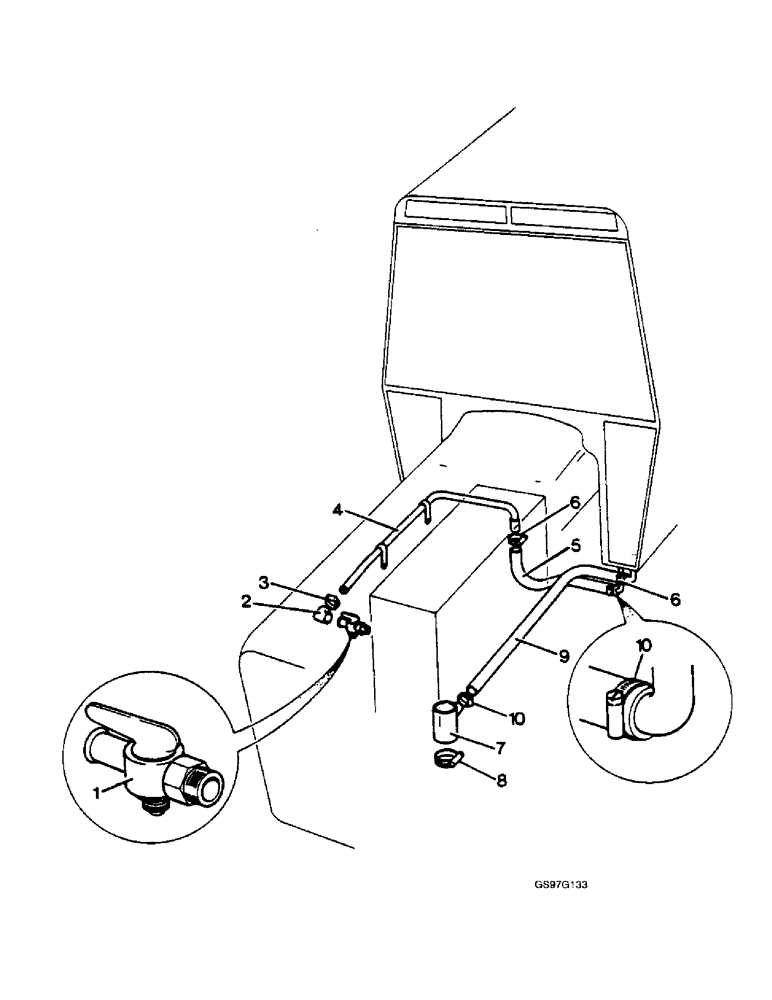

Схема запчастей Case IH 1212 - (9-096) - CAB HEATER SYSTEM, 1210SK AND 1212SK TRACTORS FOR EUROPE ONLY (09) - CHASSIS/ATTACHMENTS
10
10
3
6
1
2
5
4
7
8
6
9

Артикул

Название

Примечание

Количество

1

K952109

COCK

TAP water pump body, 3/8 BSP, no longer available

1шт.

2

K626806

FITTING

ELBOW rubber, no longer available

1шт.

3

214-1408

HOSE CLAMP,11.2mm - 19.8mm

CLAMP, HOSE, , Adj. (Replaces clamps K621770 and K622023) #08, 0.50/0.91 Type F Worm

2шт.

4

K953816

PIPE

water supply, no longer available

1шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer K19482) 3/8"

2шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut K607045) 3/8"-16, G5

2шт.

5

A136406

HOSE,0.64" ID x 29.00", SAE 20R3

- Sensor harness (Replaces hose K626829) 0.64" ID x 29.00", SAE 20R3

1шт.

6

K622024

CLAMP

hose, 7/8 inch (Replaces clamp K13070)

2шт.

7

K953814

ADAPTER

radiator outlet hose

1шт.

8

K13078

BRACKET

CLAMP hose, 1-7/8 inch

2шт.

9

T41087

HOSE ASSY.

46 inch (1168 mm) long (Replaces hose K626826)

1шт.

10

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP, HOSE, , Adjustable (Replaces clamps K13070 and K622024) #10, 0.56/1.06 Type F Worm

2шт.

K625007

ADHESIVE

TIE cable, heater hose to front main frame, no longer available

1шт.

Выбрано товаров: 13
