Запчасти Case IH 1212 (9-094) - CAB HEATER SYSTEM, 1210Q AND 1212Q TRACTORS FOR EUROPE ONLY (09) - CHASSIS/ATTACHMENTS

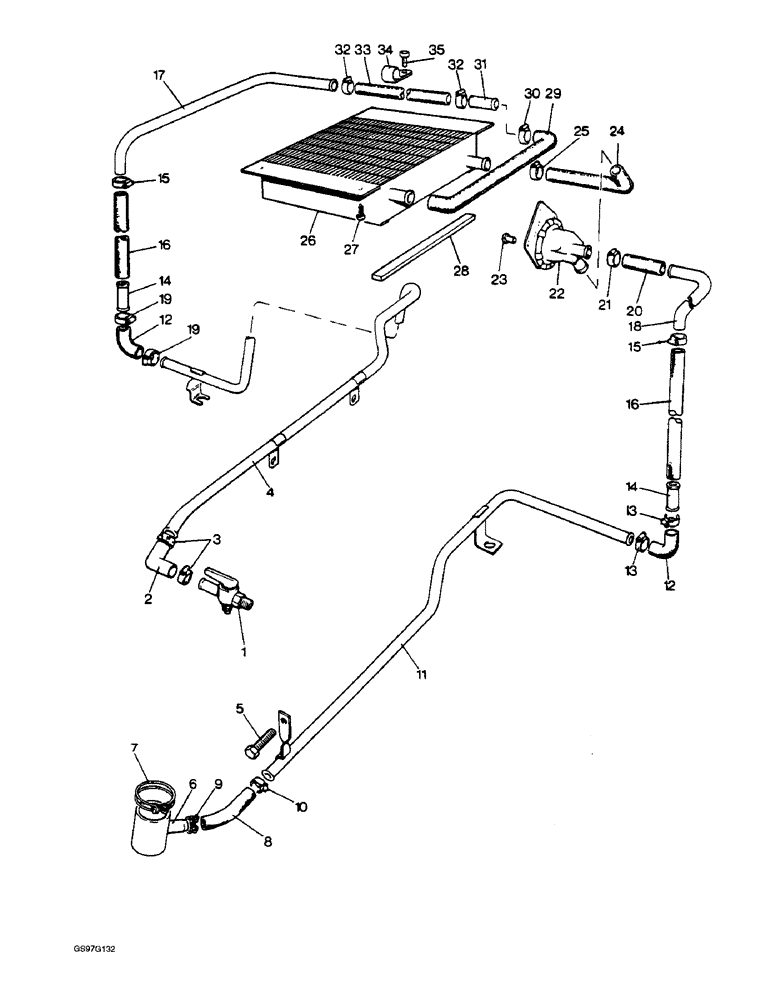

Схема запчастей Case IH 1212 - (9-094) - CAB HEATER SYSTEM, 1210Q AND 1212Q TRACTORS FOR EUROPE ONLY (09) - CHASSIS/ATTACHMENTS
8
2
19
13
30
7
23
13
9
10
31
17
14
16
25
26
35
11
5
18
1
15
27
6
3
24
19
32
28
15
20
22
32
21
34
16
12
4
33
12
14
29

Артикул

Название

Примечание

Количество

1

K952109

COCK

TAP water pump body, 3/8 BSP, no longer available

1шт.

2

K626806

FITTING

ELBOW rubber, no longer available

1шт.

3

214-1408

HOSE CLAMP,11.2mm - 19.8mm

CLAMP, HOSE, , Adj. (Replaces clip K622023) #08, 0.50/0.91 Type F Worm

2шт.

4

K952859

PIPE

water supply, no longer available

1шт.

5

413-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

hex, 5/16 NC x 1-3/8 inch (Replaces setscrew K602808)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer K19481) 5/16"

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut K607044)

1шт.

6

K953814

ADAPTER

radiator outlet hose

1шт.

7

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

CLAMP, HOSE, , Adjustable (Replaces clamp K13078) #32, 1.56/2.50 Type F Worm

2шт.

8

K626807

HOSE

adapter to return pipe, 1/2 x 5/8 x 5 inch (127 mm) long, no longer available

1шт.

9

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP, HOSE, , Adjustable (Replaces clamp K622024) #10, 0.56/1.06 Type F Worm

1шт.

10

214-1408

HOSE CLAMP,11.2mm - 19.8mm

CLAMP, HOSE, , Adj. (Replaces clamp K622023) #08, 0.50/0.91 Type F Worm

1шт.

11

K953529

PIPE

water return, no longer available

1шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer K19482) 3/8"

2шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut K607045) 3/8"-16, G5

2шт.

12

K626806

FITTING

ELBOW rubber

2шт.

13

214-1408

HOSE CLAMP,11.2mm - 19.8mm

CLAMP, HOSE, , Adj. (Replaces clamp K622023) #08, 0.50/0.91 Type F Worm

4шт.

14

K952106

CONNECTOR, ELEC

hose, 1/2 x 1-1/2 inch, no longer available

2шт.

15

214-1408

HOSE CLAMP,11.2mm - 19.8mm

CLAMP, HOSE, , Adj. (Replaces clamp K622023) #08, 0.50/0.91 Type F Worm

4шт.

16

K626825

HOSE

cab pillars, 1/2 x 63 inch (1600 mm) long, no longer available

2шт.

K627752

GROMMET

1 inch ID, no longer available

2шт.

17

K952782

HEATER

PIPE right-hand, no longer available

1шт.

18

K952781

HEATER

PIPE left-hand, no longer available

1шт.

19

K13069

HOSE

CLAMP, 3/4 inch (Replaces clamp K621770)

2шт.

20

K626827

HOSE

1/2 x 3 inch (76 mm) long, no longer available

1шт.

21

214-1408

HOSE CLAMP,11.2mm - 19.8mm

CLAMP, HOSE, , Adj. (Replaces clamp K621770) #08, 0.50/0.91 Type F Worm

2шт.

22

K952100

VALVE

water metering, no longer available

1шт.

23

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

- machine, pan Phillips, No. 10 NF x 1/2 inch, valve to mounting bracket (Replaces screw K614944)

2шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, , Valve to mounting bracket (Replaces washer K626340) #10

2шт.

225-14210

NUT,#10-32

Valve to mounting bracket (Replaces nut K617080) #10-32

2шт.

24

K953101

HOSE

valve to radiator, no longer available

1шт.

25

214-1408

HOSE CLAMP,11.2mm - 19.8mm

CLAMP, HOSE, , Adj. (Replaces clamp K622023) #08, 0.50/0.91 Type F Worm

2шт.

26

K951515

RADIATOR

cab heater, no longer available

1шт.

27

K624524

SCREW

self-tapping, No. 6 x 3/8 inch, radiator to plate, no longer available

4шт.

28

K953102

SEAL

STRIP radiator to plate, no longer available

2шт.

29

K953100

HOSE

radiator to connector, no longer available

1шт.

30

214-1408

HOSE CLAMP,11.2mm - 19.8mm

CLAMP, HOSE, , Adj. (Replaces clamp K622023) #08, 0.50/0.91 Type F Worm

2шт.

31

K952106

CONNECTOR, ELEC

hose, 1/2 x 1-1/2 inch

1шт.

32

214-1408

HOSE CLAMP,11.2mm - 19.8mm

CLAMP, HOSE, , Adj. (Replaces clamp K622023) #08, 0.50/0.91 Type F Worm

2шт.

33

K626826

HOSE

1/2 x 30 inch (762 mm) long, no longer available

1шт.

34

K621675

CLIP

hose to heater, no longer available

2шт.

35

K614964

SCREW

set, 1/4 NF x 1/2 inch, hose to heater, no longer available

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Hose to heater (Replaces washer K626341) 1/4"

2шт.

425-114

NUT,1/4"-28, G5

Hose to heater (Replaces nut K616980) 1/4"-28, G5

2шт.

Выбрано товаров: 44
