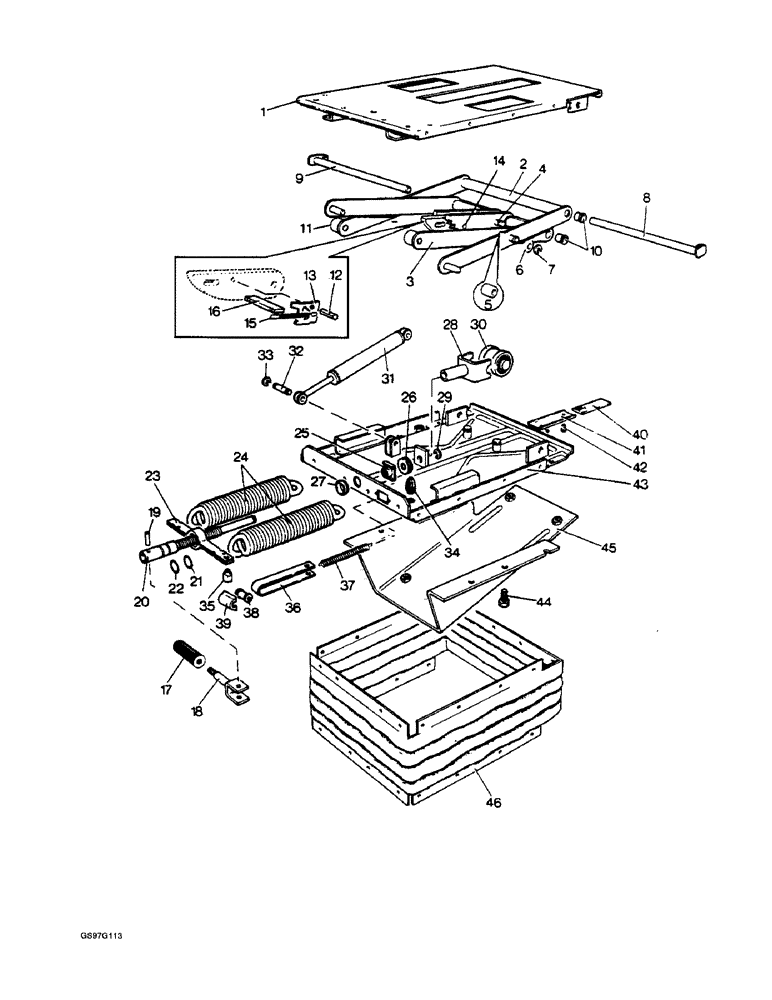

Запчасти Case IH 1212 (9-092) - ARMCHAIR SEAT SUSPENSION, 1210Q, 1212Q, 1210SK AND 1212SK TRACTORS (09) - CHASSIS/ATTACHMENTS

K953184

SEAT

SUSPENSION ASSEMBLY seat, no longer available, Includes: Ref. 1 - 46 and Rivet

1шт.

1

K964636

PLATE

top, no longer available

1шт.

2

K964663

FRAME

SCISSORS outer half, no longer available

1шт.

3

K262108

FRAME

SCISSORS inner half (Replaces scissors K964664)

1шт.

4

K964676

PIN

PEG brass, scissors inner half, no longer available

2шт.

5

K965085

BUSHING

nylon, no longer available

2шт.

6

K962686

FILTER, ELEMENT

WASHER flat, 1/2 inch

2шт.

7

A22795

RING snap (Replaces clip K621587)

2шт.

8

3225304R1

PIN

SHAFT pivot, upper, 10-1/8 inch (257 mm) long (Replaces shaft K964659)

1шт.

9

K262110

SHAFT

pivot, lower, 8-13/16 inch (224 mm) long (Replaces shaft K964660)

1шт.

10

3225373R1

BUSHING

pivot shaft (Replaces bushing K964668)

4шт.

11

3225310R1

ROLLER

nylon, 13/16 x 1/2 x 5/8 inch (Replaces roller K964667)

4шт.

12

3225320R1

PIN

cam plate (Replaces pin K964675)

1шт.

13

3225303R1

RATCHET

PLATE cam (Replaces plate K964658)

2шт.

14

K964677

SPRING

PEG brass, spring anchor, no longer available

2шт.

15

3225307R1

SPRING

cam plate (Replaces spring K964662)

2шт.

16

3225306R1

RETAINER

springs (Replaces retainer K964661)

1шт.

30788R1

LOCK PIN,M3 x 16, Slotted

ADJUSTER ASSEMBLY spring tension (Replaces adjuster assembly K964647), Includes: Ref. 17 - 22

1шт.

17

3223481R1

HANDLE

KNOB adjuster (Replaces knob K964641)

1шт.

18

3223482R1

FORK

adjuster (Replaces fork K964642)

1шт.

19

934903R1

GROOVED PIN,M5 x 28

threaded shaft (Replaces pin K964643)

1шт.

20

3225294R1

PIN

SHAFT threaded (Replaces shaft K964646)

1шт.

21

3225323R1

O-RING

O-RING red (Replaces O-ring K964678)

1шт.

22

3225324R1

O-RING

O-RING black (Replaces O-ring K964679)

1шт.

23

3225296R1

HOLDER

CARRIER spring (Replaces carrier K964648)

1шт.

24

3225330R1

SPRING

baseplate (Replaces spring K964651)

2шт.

25

3225317R1

NUT,Weld, M12

captive (Replaces nut K964672)

1шт.

K964690

WASHER

15/16 x 5/16 x 1/16 inch, no longer available

1шт.

26

3225318R1

BEARING, BALL

needle roller (Replaces bearing K964673)

1шт.

3225319R1

WASHER

1-3/16 x 3/8 x 1/8 inch (Replaces washer K964674)

1шт.

27

3225297R1

BUSHING

nylon (Replaces bushing K964649)

1шт.

28

3225302R1

FORK

baseplate (Replaces fork K964657)

1шт.

29

100-3321

SNAP RING,#X21, .185" Dia, E-Type

Ring, Retaining, (Replaces ring K621592) #X21, .185" Dia, E-Type

1шт.

30

3225301R1

NEEDLE BEARING

needle roller (Replaces bearing K964656)

1шт.

31

3225300R1

SHOCK ABSORBER

DAMPER hydraulic (Replaces damper K964655)

1шт.

32

K964654

PIN

9/32 x 1-1/8 inch, no longer available

2шт.

33

K621592

RING, SNAP

7/32 inch

4шт.

34

3134835R1

BUMPER

STOP rubber bump (Replaces stop K962434)

2шт.

35

3225315R1

BUTTON

nylon, tape to carrier (Replaces button K964670)

1шт.

36

K964650

INDICATOR

TAPE rubber bump stop, no longer available

1шт.

37

K964680

SPRING

rubber bump stop, no longer available

1шт.

38

3225299R1

ROLLER

nylon (Replaces roller K964653)

1шт.

39

3225282R1

GUIDE

COVER plastic, roller (Replaces cover K964638)

1шт.

40

K964669

PAD

rubber, no longer available

1шт.

41

K964671

PLATE

bearing, no longer available

1шт.

42

K964683

RIVET

plate to base plate, no longer available

2шт.

43

K964637

BASE

PLATE base, no longer available

1шт.

44

934679R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 4.6

M8 x 20 mm (Replaces screw K650029)

6шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer K626341) 1/4"

6шт.

45

K953185

SEAT

BRACKET support, no longer available

1шт.

46

K964684

COVER

suspension assembly, no longer available

1шт.

60-1613T1

FASTENER

RIVET plastic (Replaces rivet K964645)

30шт.
