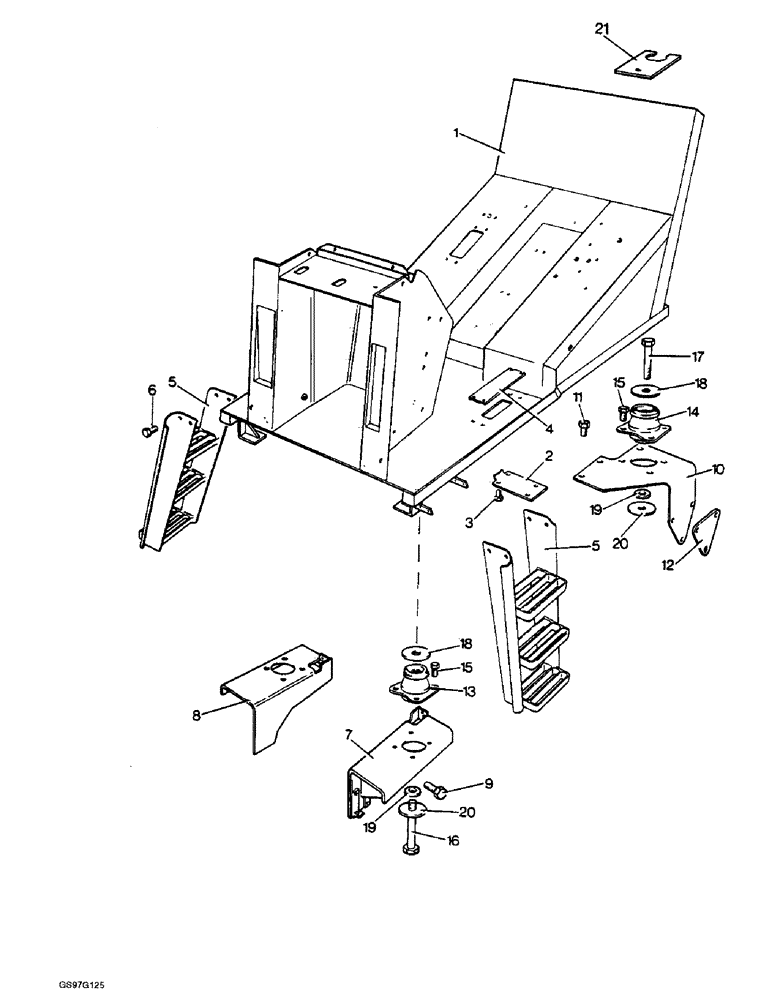

Запчасти Case IH 1212 (9-084) - CAB FLOOR AND MOUNTING, SEKURA CAB, TRACTORS FOR EUROPE ONLY (09) - CHASSIS/ATTACHMENTS

1

K955666

CAB

FLOOR tractor serial number 11158600 and after, no longer available

1шт.

1

K953843

FLOOR cab, tractor serial numbers prior to 11158600, no longer available

1шт.

K627738

GROMMET

rubber, 7/8 inch ID, no longer available

2шт.

K627743

PLUG

GROMMET rubber, 11/32 inch ID, used with 1210Sk and 1212Sk tractors

2шт.

K627742

GROMMET

rubber, 15/32 inch ID

2шт.

K627740

GROMMET

rubber, 1-1/32 inch ID, used with 1210Sk and 1212Sk tractors, no longer available

1шт.

2

K950382

COVER

PLATE shift lever aperture, no longer available

1шт.

3

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

(Replaces screw K602735) Hex, 1/4"-20 x 3/4", G5, Full Thd

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer K626341) 1/4"

4шт.

K627731

GROMMET

blind, 1-3/4 inch ID, used with 1212Sk tractors, no longer available

1шт.

K627732

GROMMET

split, 1-3/4 inch ID, used with 1210Sk and 1210Sk four-wheel drive tractors, no longer available

1шт.

4

K952246

COVER

PLATE used with 1212Sk tractors

1шт.

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

- machine, pan Phillips, No. 10 NF x 1/2 inch, used with 1212Sk tractors (Replaces screw K614944)

4шт.

5

K953955

STEP

cab, no longer available

2шт.

6

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

hex, steps to cab floor, 5/16 NC x 1 inch (Replaces screw K602847)

8шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , steps to cab floor (Replaces washer K19481) 5/16"

8шт.

425-105

NUT,5/16"-18, G5

- hex, steps to cab floor, 5/16 inch NC (Replaces nut K607044)

8шт.

7

K949483

MOUNTING PARTS

BRACKET left-hand front, no longer available

1шт.

8

K949479

MOUNTING PARTS

BRACKET right-hand front, no longer available

1шт.

K950378

BUSHING

SPACER distance, mounting brackets, no longer available

2шт.

9

413-1026

BOLT,Hex, 5/8" - 11 x 1-5/8", Gr 5

hex, 5/8 NC x 1-5/8 inch (Replaces bolt K603275)

6шт.

K601331

BOLT

hex, 5/8 NC x 5-1/4 inch

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Replaces washer K19485) 5/8"

8шт.

10

K950377

MOUNTING PARTS

BRACKET left-hand rear, used with 1210Sk and 1212Sk tractors, no longer available

1шт.

10

K950376

MOUNTING PARTS

BRACKET right-hand rear, used with 1210Sk and 1212Sk tractors, no longer available

1шт.

10

K951613

MOUNTING PARTS

BRACKET left-hand rear, used with 1210Sk four-wheel drive tractors, no longer available

1шт.

10

K951610

MOUNTING PARTS

BRACKET right-hand rear, used with 1210Sk four-wheel drive tractors, no longer available

1шт.

11

413-1026

BOLT,Hex, 5/8" - 11 x 1-5/8", Gr 5

hex, brackets to axle housing and reductions, 5/8 NC x 1-5/8 inch (Replaces bolt K603275)

6шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Brackets to axle housing and reductions (Replaces washer K19485) 5/8"

6шт.

413-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

Brackets to axle housing and reductions (Replaces bolt K600889) Hex, 1/2"-13 x 3 3/4", G5

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Brackets to axle housing and reductions 1/2"

4шт.

12

K952704

SHIM

brackets to axle housing and reductions, 1/16 inch, no longer available

2шт.

13

K949839

BUMPER

MOUNTING rubber, front, no longer available

2шт.

14

K949838

DAMPER

MOUNTING rubber, rear

2шт.

15

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, rubber mountings to brackets, 3/8 NC x 1 inch (Replaces screw K602984)

16шт.

K19472

WASHER

flat, rubber mountings to brackets, 3/8 inch

16шт.

492-11038

LOCK WASHER,3/8"

rubber mountings to brackets 3/8"

16шт.

425-106

NUT,3/8"-16, Cl 5

Rubber mountings to brackets (Replaces nut K607045) 3/8"-16, G5

16шт.

16

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

hex, front, 5/8 NC x 3-3/4 inch (Replaces bolt K601324)

2шт.

17

K601378

BOLT

hex, rear, 5/8 NC x 6-1/2 inch

2шт.

18

K949668

WASHER

grooved, 5/8 x 3-5/16 inch

4шт.

19

K626930

WASHER

special, 5/8 x 1-1/8 inch

4шт.

20

K955087

WASHER

special (Replaces washer K626931)

4шт.

K626855

WASHER

flat, 5/8 inch

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Replaces washer K19485) 5/8"

4шт.

425-1010

NUT,5/8"-11, G5

(Replaces nut K607048) 5/8"-11, G5

2шт.

K955524

PLATE

NUT special, 5/8 inch NC

2шт.

21

K200021

BRACKET

top link stowage, used with 1210Sk four-wheel drive tractors with serial number 11158600 and after, no longer available

1шт.

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

Bracket to rear cross beam, Used with 1210Sk four-wheel drive tractors with S/N 11158600 and after (Replaces bolt K602983) Hex, 3/8"-16 x 7/8", G5, Full Thd

1шт.

492-11038

LOCK WASHER,3/8"

bracket to rear cross beam, used with 1210Sk four-wheel drive tractors with serial number 11158600 and after (Replaces washer K19482) 3/8"

1шт.

K200022

NUT

special, bracket to rear cross beam, 3/8 inch NC, used with 1210Sk four-wheel drive tractors with serial number 11158600 and after, no longer available

1шт.
