Запчасти Case IH 1212 (9-076) - FRAME, GLAZING AND INTERNAL TRIM, SEKURA CAB (09) - CHASSIS/ATTACHMENTS

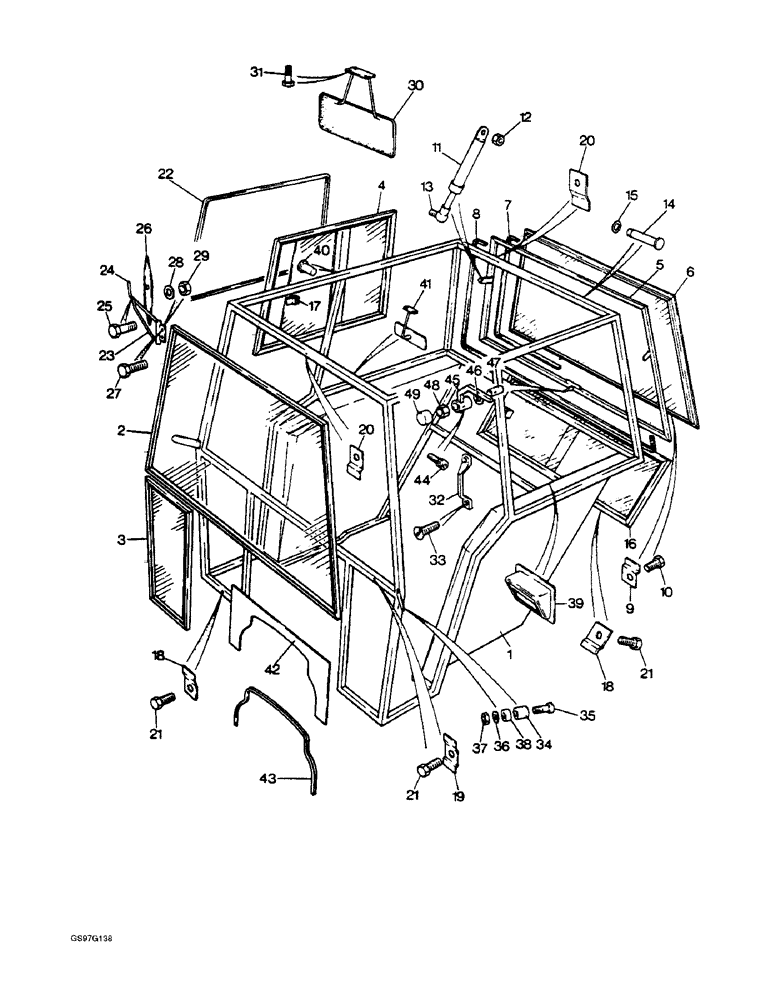

Схема запчастей Case IH 1212 - (9-076) - FRAME, GLAZING AND INTERNAL TRIM, SEKURA CAB (09) - CHASSIS/ATTACHMENTS
31
7
48
21
49
14
8
5
34
13
12
18
2
4
3
28
26
10
21
30
41
19
36
46
42
22
9
23
1
27
33
38
32
20
29
16
43
47
35
44
25
17
15
45
18
11
24
20
21
37
6
39

Артикул

Название

Примечание

Количество

1

K965509

CAB

FRAME Sekura 164.023, no longer available

1шт.

2

K965652

WINDSHIELD

green tinted, frame and glass, not for tractors for Germany, Sekura 40.601, no longer available

1шт.

3

K965470

WINDOW

PANEL bulkhead, right-hand, frame and glass, Sekura 40.974, no longer available

1шт.

K965469

WINDOW

PANEL bulkhead, left-hand, frame and glass, Sekura 40.973, no longer available

1шт.

4

K965573

GLASS

FRAME sliding window, right-hand, Sekura 40.999, no longer available

1шт.

K965574

GLASS

FRAME sliding window, left-hand, Sekura 40.998, no longer available

1шт.

K965466

WINDOW

rear, hinged, Sekura 40.341, no longer available

1шт.

5

K965467

FRAME

rear window, Sekura 40.344, no longer available

1шт.

6

K965468

WINDOW

GLASS AND FRAME rear window, Sekura 40.345, no longer available

1шт.

7

K965591

RUBBER

STRIP glazing, 138-1/2 inch (3520 mm) long, Sekura 931.018, no longer available

1шт.

8

K965592

STRIP

edging, 140 inch (3550 mm) long, Sekura 931.030.3550, no longer available

1шт.

9

K965454

CLIP

window, Sekura 20.237, no longer available

2шт.

10

K965566

SCREW

window clip to frame, Sekura 916.040, no longer available

2шт.

11

K965650

CYLINDER

SPRING gas pressure, Sekura 970.045, no longer available

2шт.

12

K965547

NUT

hex, self-locking, M6, Sekura 910.030, no longer available

2шт.

13

K965561

RIVET

JOINT ball, Sekura 970.046, no longer available

2шт.

14

K965496

PIN

cab frame, Sekura 20.724, no longer available

2шт.

15

K965569

RING

snap, Sekura 917.012, no longer available

2шт.

16

K965579

WINDOW

FRAME sliding window, rear, Sekura 40.988, no longer available

1шт.

17

K965456

HANDLE

sliding window, side, one set, Sekura 20.273

1шт.

18

K965442

CLIP

window, Sekura 20.066, no longer available

12шт.

19

K965453

CLIP

window, Sekura 20.220, no longer available

2шт.

20

K965446

WINDOW

CLIP window, Sekura 20.079, no longer available

1шт.

21

K965564

SCREW

M5 x 12 mm, Sekura 916.030, no longer available

4шт.

22

K965590

SEALING STRIP

glazing, 236 inch (6000 mm) long, Sekura 931.017

1шт.

23

K965498

ARM

BRACKET support, left-hand driving mirror, Sekura 40.756, no longer available

1шт.

K965499

ARM

BRACKET support, right-hand driving mirror, Sekura 40.757, no longer available

1шт.

24

K965500

ARM

adjusting, Sekura 20.758, no longer available

2шт.

25

K965539

SCREW

set, M8 x 15 mm, Sekura 905.083, no longer available

2шт.

26

K954821

MIRROR

driving, Sekura 944.205, no longer available

2шт.

27

K965537

SCREW

set, support bracket to cab, M6 x 25 mm, Sekura 905.065, no longer available

4шт.

28

K965556

WASHER

lock, support bracket to cab, 1/4 inch, Sekura 913.107, no longer available

4шт.

29

K965544

NUT

support bracket to cab, M6, Sekura 910.060, no longer available

4шт.

30

K200034

X

VISOR sun, Sekura 944.010, no longer available

1шт.

31

K965528

SCREW

M5 x 15 mm, Sekura 900.053, no longer available

2шт.

32

K965647

HANDLE

grab, Sekura 21.197, no longer available

4шт.

33

K965562

SCREW

No. 8 x 5/8 inch, Sekura 916.133, no longer available

8шт.

34

K965631

STOP

door, Sekura 958.002

2шт.

35

K965532

SCREW

door stop to cab, M6 x 35 mm, Sekura 900.067

2шт.

36

K965556

WASHER

door stop to cab, 1/2 inch, Sekura 913.107

2шт.

37

K965544

NUT

door stop to cab, M6, Sekura 910.060

2шт.

38

K965523

PLATE

WASHER special, door stop to cab, Sekura 21.088, no longer available

2шт.

39

K965487

TRAY

ash, Sekura 20.633, no longer available

1шт.

40

K965832

SUPPORT

PLUG plastic, Sekura 958.015, no longer available

4шт.

41

K965612

MIRROR

driving, interior, Sekura 944.015, no longer available

1шт.

42

K965510

PANEL

front, Sekura 164.036, no longer available

1шт.

43

K965581

STRIP

edging, Sekura 931.008.920, no longer available

1шт.

44

K965696

SCREW

handle, Sekura 906.051, no longer available

1шт.

45

K965657

HANDLE

later cab, Sekura 21.123, no longer available

1шт.

46

K965481

WASHER

handle, Sekura 21.196, no longer available

1шт.

47

K965435

PACKING RING

BUSHING rubber, Sekura 960.410, no longer available

1шт.

48

K965685

NUT

handle, Sekura 910.061, no longer available

1шт.

49

K965435

PACKING RING

PLUG plastic, Sekura 958.505

1шт.

K965472

HANDLE

rear window, early cabs, Sekura 40.455, no longer available

1шт.

Выбрано товаров: 54
