Запчасти Case IH 1212 (9-066) - CAB REAR PANEL, RIGID, 1210Q AND 1212Q TRACTORS (09) - CHASSIS/ATTACHMENTS

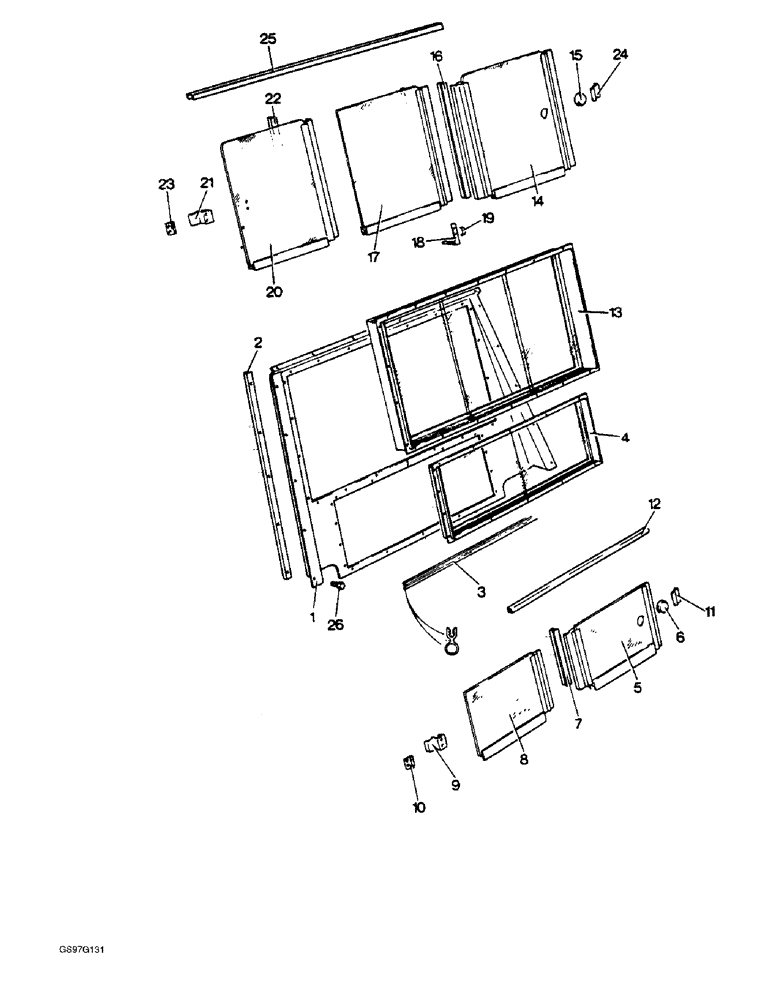

Схема запчастей Case IH 1212 - (9-066) - CAB REAR PANEL, RIGID, 1210Q AND 1212Q TRACTORS (09) - CHASSIS/ATTACHMENTS
24
21
15
5
1
20
11
18
26
3
2
14
25
23
22
4
8
13
17
12
10
6
16
19
7
9

Артикул

Название

Примечание

Количество

K956196

PANEL

ASSEMBLY rigid, rear, tractor serial number 11158600 and after, no longer available, Includes: Ref. 1 - 25

1шт.

K955683

PANEL

ASSEMBLY rigid, rear, tractor serial numbers prior to 11158600, no longer available, Includes: Ref. 1 - 25

1шт.

1

K955214

PANEL

rear, used with panel assembly K956196, no longer available

1шт.

1

K955022

PANEL

rear, used with panel assembly K955683, no longer available

1шт.

2

K955219

RUBBER

STRIP sealing, 1/4 x 5/8 x 33-1/2 inch, used with panel assembly K956196, no longer available

2шт.

2

K955387

SEAL

STRIP 1/4 x 5/8 x 35-1/4 inch, used with panel assembly K955683, no longer available

2шт.

3

K691979

PANEL

STRIP sealing, order bulk, no longer available

1шт.

4

K955322

WINDOW

ASSEMBLY double sliding, no longer available, Includes: Ref. 5 - 12

1шт.

5

K965117

PANEL

ASSEMBLY glass, no longer available, Includes: Ref. 6 and 7

1шт.

6

K965108

KNOB

PULL finger, circular, no longer available

1шт.

7

K965120

SEAL

weather, nylon, order bulk, no longer available

1шт.

8

K965118

PANEL

ASSEMBLY glass, no longer available, Includes: Ref. 9

1шт.

9

K965109

KNOB

PULL AND CATCH finger, no longer available

1шт.

10

K965112

CATCH

PLATE left-hand side, no longer available

1шт.

11

K965113

CATCH

PLATE right-hand side, no longer available

1шт.

12

K965119

WEB

nylon, order bulk, no longer available

1шт.

13

K955303

WINDOW

ASSEMBLY sliding, triple, used with panel assembly K956196, no longer available, Includes: Ref. 14 - 25

1шт.

13

K955321

WINDOW

ASSEMBLY sliding, triple, used with panel asembly K955683, no longer available, Includes: Ref. 14 - 25

1шт.

14

K965194

PANEL

ASSEMBLY glass, used with window assembly K955303, no longer available, Includes: Ref. 15 and 16

1шт.

14

K965103

PANEL

ASSEMBLY glass, used with window assembly K955321, no longer available, Includes: Ref. 15 and 16

1шт.

15

K965108

KNOB

PULL finger, circular

1шт.

16

K965120

SEAL

weather, nylon, order bulk

1шт.

17

K965193

PANEL

ASSEMBLY center, glass, used with window assembly K955303, no longer available, Includes: Ref. 18 and 19

1шт.

17

K965102

PANEL

ASSEMBLY center, glass, used with window assembly K955321, no longer available, Includes: Ref. 18 and 19

1шт.

18

K965107

BOLT

sliding, window catch

1шт.

19

K965106

SPRING

sliding bolt, no longer available

1шт.

20

K965195

PANEL

ASSEMBLY glass, used with window assembly K955303, no longer available, Includes: Ref. 21 and 22

1шт.

20

K965105

PANEL

ASESMBLY glass, used with window assembly K955321, no longer available, Includes: Ref. 21 and 22

1шт.

21

K965109

KNOB

PULL AND CATCH finger

1шт.

22

K965120

SEAL

weather, nylon, order bulk

1шт.

23

K965112

CATCH

PLATE left-hand side

1шт.

24

K965113

CATCH

PLATE right-hand side

1шт.

25

K965119

WEB

nylon, order bulk

1шт.

26

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

set, 5/16 NC x 3/4 inch

21шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer K19481) 5/16"

21шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut K607044)

21шт.

Выбрано товаров: 36
