Запчасти Case IH 1212 (9-062) - CAB DOORS, SEKURA CAB (09) - CHASSIS/ATTACHMENTS

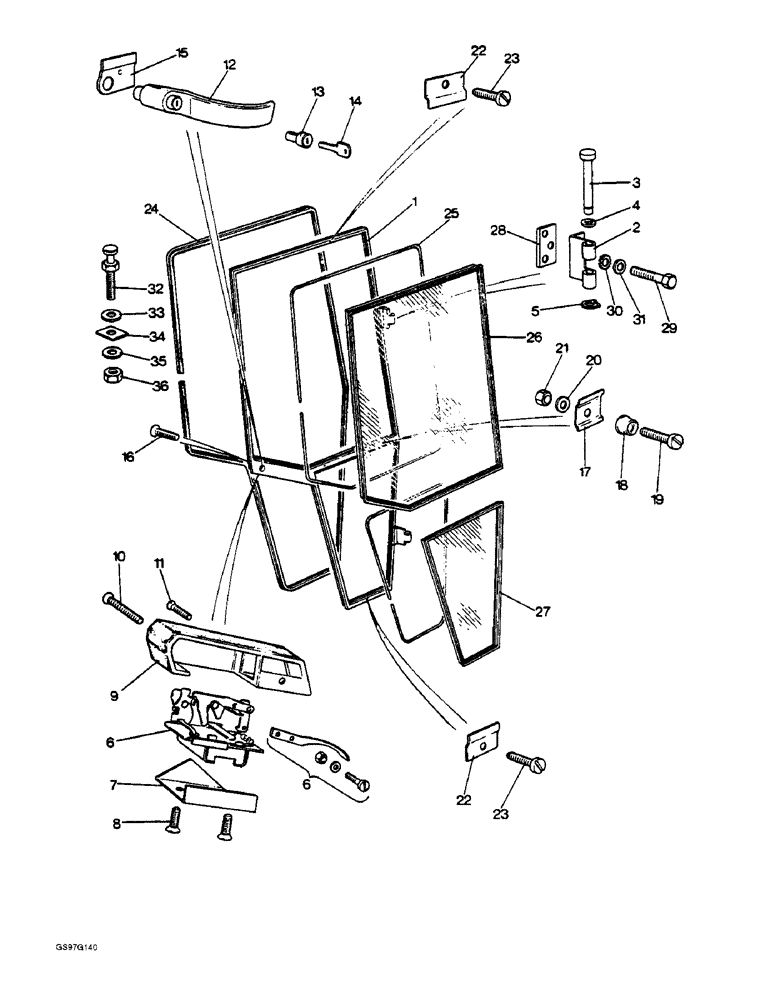

Схема запчастей Case IH 1212 - (9-062) - CAB DOORS, SEKURA CAB (09) - CHASSIS/ATTACHMENTS
19
6
7
1
30
8
25
34
13
17
23
15
14
35
32
20
2
26
6
11
10
31
36
16
22
3
4
5
9
23
33
21
29
12
18
22
27
28
24

Артикул

Название

Примечание

Количество

1

K965439

DOOR

ASSEMBLY - right-hand, Sekura 40.711, no longer available, Includes: Ref. 2 - 27 and Frame

1шт.

K965438

DOOR

ASSEMBLY - left-hand, Sekura 40.710, no longer available, Includes: Ref. 2 - 27 and Frame

1шт.

2

K965645

HINGE

top left-hand, bottom right-hand, Sekura 970.020, no longer available

2шт.

K965644

HINGE

top right-hand, bottom left-hand, Sekura 970.019, no longer available

2шт.

3

K965642

PIN

hinge, Sekura 21.111, no longer available

4шт.

4

K965643

WASHER

Sekura 970.018, no longer available

8шт.

5

K965688

SNAP RING

Sekura 917.009, no longer available

4шт.

6

K965648

LOCK

LATCH left-hand door, Sekura 20.274.01, no longer available

1шт.

K965649

LOCK

LATCH right-hand door, Sekura 20.274.02, no longer available

1шт.

7

K965443

MOUNTING PARTS

PLATE left-hand, Sekura 20.067.01, no longer available

1шт.

K965482

MOUNTING PARTS

PLATE right-hand, Sekura 20.067.02, no longer available

1шт.

8

K965660

SCREW

M6 x 16 mm, Sekura 900.063, no longer available

4шт.

9

K965444

ARMREST

left-hand, Sekura 20.076.01, no longer available

1шт.

K965445

ARMREST

right-hand, Sekura 20.076.02, no longer available

1шт.

10

K965534

SCREW

M6 x 78 mm, Sekura 906.368, no longer available

2шт.

11

K965530

SCREW

M6 x 12 mm, Sekura 906.361, no longer available

4шт.

K965684

SCREW

M6 x 20 mm, Sekura 906.364, no longer available

4шт.

12

K965646

HANDLE

ASSEMBLY includes key, Sekura 970.026, no longer available, Includes: Ref. 13 - 15 and Clip

2шт.

13

K965692

CYLINDER

LOCK Sekura 970.405

2шт.

14

K965693

KEY

Sekura 970.406, include order number and key number, no longer available

2шт.

15

K965447

CLIP

window, left-hand, Sekura 20.134.01, no longer available

1шт.

K965448

CLIP

window, right-hand, Sekura 20.134.02, no longer available

1шт.

16

K965683

SCREW

M6 x 16 mm, Sekura 906.363, no longer available

6шт.

17

K965453

CLIP

window, Sekura 20.220, no longer available

2шт.

18

K965623

PUSH BUTTON

STOP door, rubber, Sekura 958.001, no longer available

2шт.

19

K965531

SCREW

M6 x 30 mm, Sekura 900.066, no longer available

2шт.

20

K965550

WASHER

flat, 1/4 inch, Sekura 912.071, no longer available

2шт.

21

K965544

NUT

M6, Sekura 910.060, no longer available

2шт.

22

K965454

CLIP

window, Sekura 20.237, no longer available

6шт.

23

K965686

SCREW

self-tapping, m4 x 10 mm, Sekura 916.202, no longer available

6шт.

24

K965587

STRIP

edging, 168-1/2 inch (4280 mm) long, Sekura 931.014.4280, no longer available

2шт.

25

K965590

SEALING STRIP

sealing, 236 inch (6000 mm) long, Sekura 931.017, no longer available

1шт.

26

K965484

WINDOW

FRAME right-hand upper, includes glass, Sekura 40.960, no longer available

1шт.

K965483

WINDOW

FRAME left-hand upper, includes glass, Sekura 40.961, no longer available

1шт.

27

K965486

WINDOW

FRAME right-hand lower, includes glass, Sekura 40.890, no longer available

1шт.

K965485

WINDOW

FRAME left-hand lower, includes glass, Sekura 40.891, no longer available

1шт.

28

K965452

PLATE

spacer, Sekura 20.207, no longer available

4шт.

29

K965540

SCREW

M8 x 15 mm, hinge to cab, Sekura 906.183, no longer available

12шт.

30

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , hinge to cab (Replaces washer K19481) 5/16"

12шт.

31

K965551

WASHER

flat, 5/16 inch, hinge to cab, Sekura 912.091, no longer available

12шт.

32

K965541

PIN

CATCH door, Sekura 907.003, no longer available

2шт.

33

K965554

WASHER

Sekura 912.133, no longer available

2шт.

34

K965458

PLATE

spacer, Sekura 20.278, no longer available

2шт.

35

K965463

WASHER

Sekura 20.294, no longer available

2шт.

36

K965546

NUT

Sekura 910.121, no longer available

2шт.

Выбрано товаров: 45
