Запчасти Case IH 1212 (9-058) - CAB DOORS, 1210Q AND 1212Q TRACTORS (09) - CHASSIS/ATTACHMENTS

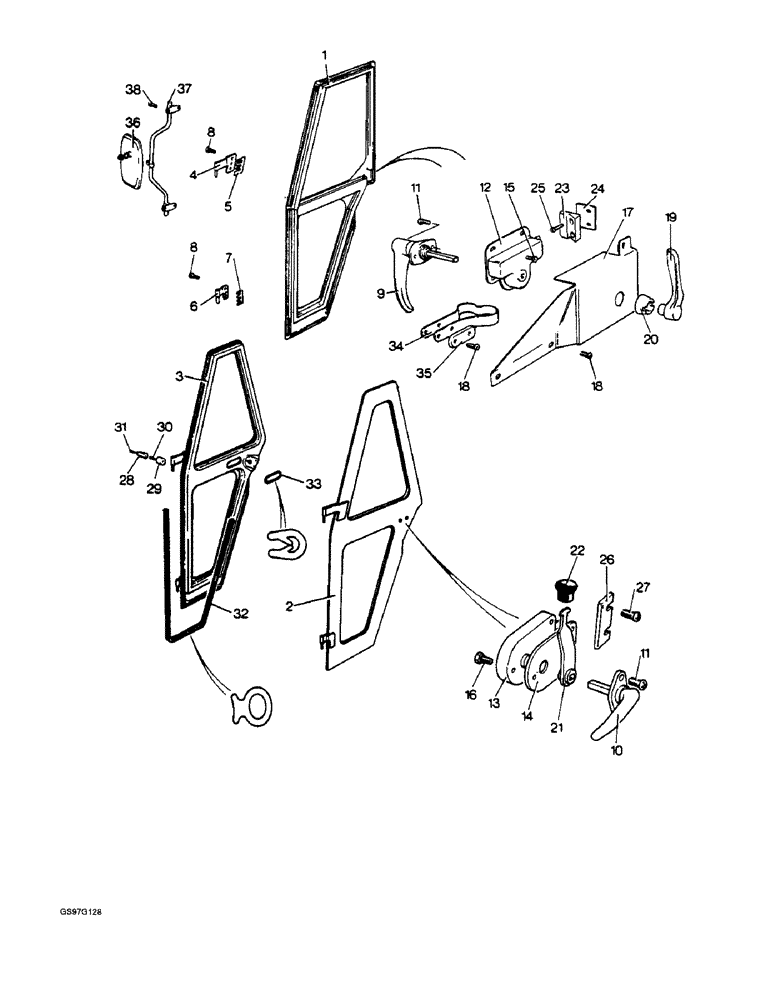

Схема запчастей Case IH 1212 - (9-058) - CAB DOORS, 1210Q AND 1212Q TRACTORS (09) - CHASSIS/ATTACHMENTS
2
4
8
22
20
38
15
8
5
37
14
19
18
33
18
25
9
10
1
28
31
29
11
32
6
27
17
34
13
24
35
16
23
21
12
3
36
7
26
30
11

Артикул

Название

Примечание

Количество

1

K955488

CAB

DOOR right-hand, tractor serial number 11158600 and after, no longer available

1шт.

2

K950358

DOOR

cab, left-hand, tractor serial numbers prior to 11158600, no longer available

1шт.

3

K955195

DOOR

cab, left-hand, tractor serial number 11158600 and after, no longer available

1шт.

3

K950357

CAB

DOOR right-hand, tractor serial numbers prior to 11158600, no longer available

1шт.

K626779

WASHER

thrust, door hinge, no longer available

2шт.

4

K955423

HINGE

upper, left-hand door, tractor serial number 11158600 and after, no longer available

1шт.

4

K955492

HINGE

upper, right-hand door, tractor serial number 11158600 and after, no longer available

1шт.

5

K955484

DOOR

PLATE packing, upper hinges, tractor serial number 11158600 and after, no longer available

1шт.

6

K955421

HINGE

lower, left-hand door, tractor serial number 11158600 and after, no longer available

1шт.

6

K955494

HINGE

lower, right-hand door, tractor serial number 11158600 and after, no longer available

1шт.

7

K955498

DOOR

PLATE packing lower hinges, tractor serial number 11158600 and after, no longer available

1шт.

8

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

set, hinges to doors, 5/16 NC x 3/4 inch, tractor serial number 11158600 and after

12шт.

K626682

WASHER

hinges to doors, flat, 5/16 inch, tractor serial number 11158600 and after

12шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , hinges to doors, tractor serial number 11158600 and after (Replaces washer K19481) 5/16"

12шт.

9

K955435

HANDLE

outer, locking, tractor serial number 11158600 and after

2шт.

10

K949336

HANDLE

outer, tractor serial numbers prior to 11158600, no longer available

2шт.

11

K614498

SCREW

No. 10 NF x 1/2 inch, no longer available

4шт.

12

K955426

LOCK ASSY

LATCH left-hand door, tractor serial number 11158600 and after, no longer available

1шт.

12

K955496

LOCK

LATCH right-hand door, tractor serial number 11158600 and after, no longer available

1шт.

13

K951133

LOCK

LATCH left-hand door, tractor serial numbers prior to 11158600, no longer available

1шт.

13

K773203

DOOR

LATCH right-hand door, tractor serial numbers prior to 11158600, no longer available

1шт.

14

K950206

RETAINER

PLATE door latch, tractor serial numbers prior to 11158600, no longer available

2шт.

15

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

- machine, pan Phillips, No. 10 NF x 1/2 inch, latches to doors, tractor serial number 11158600 and after (Replaces screw K614944)

8шт.

16

K614950

SCREW

set, No. 10 NF x 1/2 inch, latches to doors, tractor serial numbers prior to 11158600 (Replaces screw K615408)

6шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, , Latches to doors, 6 used with S/N's prior to 11158600, 8 used with S/N 11158600 and after #10

1шт.

17

K955419

LATCH

COVER left-hand door latch, tractor serial number 11158600 and after, no longer available

1шт.

17

K955497

DOOR

COVER right-hand door latch, tractor serial number 11158600 and after, no longer available

1шт.

18

K603925

SCREW,Pan, 1/4" - 20 x 5/8"

hex, 1/4 NC x 5/8 inch, tractor serial number 11158600 and after, no longer available

10шт.

K626662

WASHER

flat, 1/4 inch, tractor serial number 11158600 and after (Replaces washer K19470)

6шт.

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

Tractor S/N 11158600 and after (Replaces washer K626341) 1/4"

10шт.

19

K955448

HANDLE

LEVER inner, tractor serial number 11158600 and after, no longer available

2шт.

K955447

SHIM

Inner lever, Tractor S/N 11158600 and after, No longer available

1шт.

20

K955446

SPACER

ESCUTCHEON inner handle, tractor serial number 11158600 and after, no longer available

2шт.

21

K950360

LEVER

inner, tractor serial numbers prior to 11158600, no longer available

2шт.

22

K901738

KNOB

inner lever, tractor serial numbers, Serial Range: prior-11158600

2шт.

23

K955167

DOOR

PLATE striker, door latch, tractor serial number 11158600 and after, no longer available

2шт.

24

K955169

DOOR

PLATE packing, door striker plates, tractor serial number 11158600 and after, no longer available

1шт.

25

490-11010

SCREW,Cross Pan Hd, #10-32 x 5/8"

- machine, pan Phillips, No. 10 NF x 5/8 inch, tractor serial number 11158600 and after (Replaces screw K614945)

4шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, , Tractor S/N 11158600 and after #10

4шт.

225-14210

NUT,#10-32

Tractor S/N 11158600 and after #10-32

4шт.

26

K948970

STOP

PLATE door latch, tractor serial numbers prior to 11158600, no longer available

2шт.

27

470-12520

SCREW,Slotted Pan Hd, 1/4"-20 x 1 1/4"

machine, pan head slotted, plates to cab, 1/4 NC x 1-1/4 inch, tractor serial numbers prior to 11158600 (Replaces screw K603931)

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Plates to cab, tractor S/N's prior to 11158600 (Replaces washer K626341) 1/4"

4шт.

234-10025

NUT,Crown, 1/4"-20

dome, plates to cab, 1/4 inch NC, tractor serial numbers prior to 11158600

4шт.

28

K953495

DOOR

RETAINER male, no longer available

2шт.

29

K953496

DOOR

RETAINER female

2шт.

30

K616521

SCREW socket, 1/4 NC x 7/8 inch

2шт.

31

K603926

SCREW

hex, 1/4 NC x 3/4 inch

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer K626341) 1/4"

2шт.

425-104

NUT,1/4"-20, Cl 5

(Replaces nut K607043) 1/4"-20, G5

2шт.

32

K776153

SEAL

EXCLUDER draught, order bulk (Replaces excluder K949338)

1шт.

33

K951136

SEALING STRIP

edging, order bulk, no longer available

1шт.

34

K955485

STRAP

door pull, tractor serial number 11158600 and after, no longer available

2шт.

K955499

STRAP

COVER door pull strap, no longer available

2шт.

35

K955486

DOOR

RETAINER strap, tractor serial number 11158600 and after, no longer available

4шт.

36

K950922

MIRROR

ASSEMBLY driving, no longer available, Includes: Glass

1шт.

K965040

MIRROR

GLASS driving mirror, no longer available

1шт.

37

K950921

ARM

BRACKET support, driving mirror, no longer available

1шт.

38

K603926

SCREW

hex, 1/4 NC x 3/4 inch

4шт.

Выбрано товаров: 59
