Запчасти Case IH 1212 (9-054) - CAB ROOF AND TRIM, SEKURA CAB (09) - CHASSIS/ATTACHMENTS

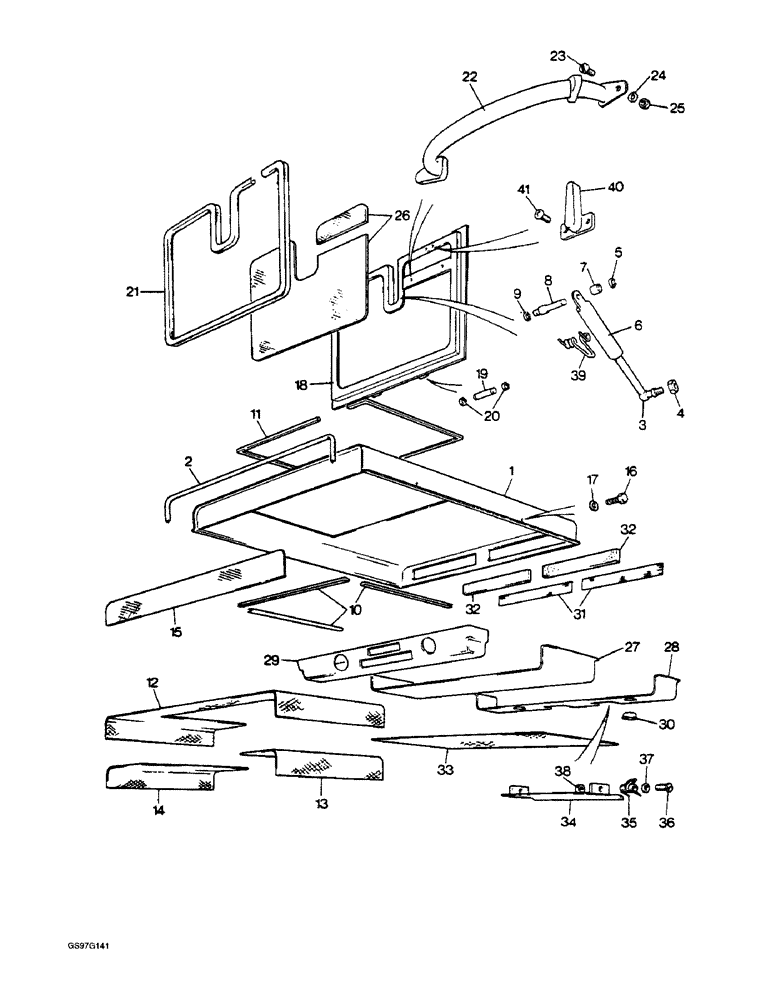

Схема запчастей Case IH 1212 - (9-054) - CAB ROOF AND TRIM, SEKURA CAB (09) - CHASSIS/ATTACHMENTS
16
10
30
26
27
40
15
29
41
7
19
13
37
18
35
33
6
22
25
2
32
12
36
34
31
14
8
32
24
23
28
5
3
20
11
17
9
38
4
21
1
39

Артикул

Название

Примечание

Количество

1

K965508

TOP

ROOF cab, Sekura 40.848, no longer available, Start Serial: C134898

1шт.

NSS

NOT SOLD SEPARAT

ROOF AND HATCH cab, order roof K965508, Serial Range: -C134898

1шт.

2

K965583

SEALING STRIP

STRIP edging, Sekura 931.008.1400, no longer available

2шт.

3

K965651

BALL

JOINT, Sekura 970.046, no longer available

1шт.

4

K965547

NUT

M6, Sekura 910.030, no longer available

1шт.

5

K965570

RING

snap, 6 mm OD, Sekura 917.013, no longer available

1шт.

6

K965650

CYLINDER

SPRING gas pressure, Sekura 970.045, no longer available

1шт.

7

K965497

WASHER

SPACER Sekura 20.730, no longer available

1шт.

8

K965503

PIN

gudgeon, Sekura 20.763, no longer available

1шт.

9

K965567

RING

snap, 8 mm OD, Sekura 917.001, no longer available

1шт.

10

K965585

STRIP

edging, Sekura 931.010.655, no longer available

1шт.

11

K965580

STRIP

edgine, Sekura 931.006.2500, no longer available

1шт.

12

K965664

FOAM

INSULATION, Sekura 20.861, no longer available, Start Serial: C134898

1шт.

13

K965480

FOAM

INSULATION, right-hand, Sekura 20.571.02, no longer available, Serial Range: -C134898

1шт.

14

K965479

FOAM

INSULATION, left-hand, Sekura 20.571.01, no longer available, Serial Range: -C134898

1шт.

15

K965450

FOAM

INSULATION rear, Sekura 20.203, no longer available

1шт.

16

K965565

SCREW

self-tapping, cab roof to frame, No. 14 x 1 inch, Sekura 916.034, no longer available

4шт.

17

K965552

WASHER

oval, cab roof to frame, Sekura 912.094, no longer available

4шт.

18

K965658

HATCH

roof, Sekura 40.841, no longer available, Start Serial: C134898

1шт.

K965449

HATCH

roof, Sekura 40.145, no longer available, Serial Range: -C134898

1шт.

19

K965437

HINGE

PIN, Sekura 10.211, no longer available

2шт.

20

K965568

RING

snap, Sekura 917.007, no longer available

4шт.

21

K965584

STRIP

edging, Sekura 931.008.2800, no longer available

1шт.

22

K965596

HANDLE

roof hatch, Sekura 970.027, no longer available

1шт.

23

K965543

NUT

SCREW, handle to roof hatch, M5 x 12 mm, Sekura 910.050

2шт.

24

K965555

WASHER

lock, handle to roof hatch, 3/16 inch, Sekura 913.105, no longer available

2шт.

25

K965543

NUT

M5, handle to roof hatch, Sekura 910.050, no longer available

2шт.

26

K965653

FOAM

INSULATION, Sekura 20.857, no longer available, Start Serial: C134898

1шт.

K965451

FOAM

INSULATION, Sekura 20.204, no longer available, Serial Range: -C134898

1шт.

27

K965462

PLATE

roof, Sekura 40.874, no longer available

1шт.

28

K965459

INSULATOR

PANEL front, Sekura 20.653, no longer available

1шт.

29

K965460

LINING

PANEL rear, Sekura 21.031, no longer available

1шт.

30

K965436

NOZZLE CAP

VENT heater/ventilator, Sekura 10.182, no longer available

4шт.

31

K965457

GRILLE

air intake, Sekura 40.275, no longer available

2шт.

32

K965594

FILTER

grill, Sekura 932.071, no longer available

2шт.

33

K965464

FOAM

INSULATION, Sekura 20.313, no longer available

1шт.

34

K965488

COVER

front panel, Sekura 20.652, no longer available

2шт.

35

K965493

SPRING

front panel cover, Sekura 20.671, no longer available

4шт.

36

K965537

SCREW

set, M6 x 25 mm, Sekura 905.065

4шт.

37

K965550

WASHER

flat, 1/4 inch, Sekura 912.071, no longer available

12шт.

38

K965547

NUT

M6, Sekura 910.062

4шт.

39

K965461

BRACKET

SPRING retaining, Sekura 963.001, no longer available

1шт.

40

K965662

PAWL

LOCK roof hatch, Sekura 970.053, no longer available

1шт.

41

K965557

SCREW

roof hatch lock, Sekura 916.021, no longer available

2шт.

Выбрано товаров: 44
