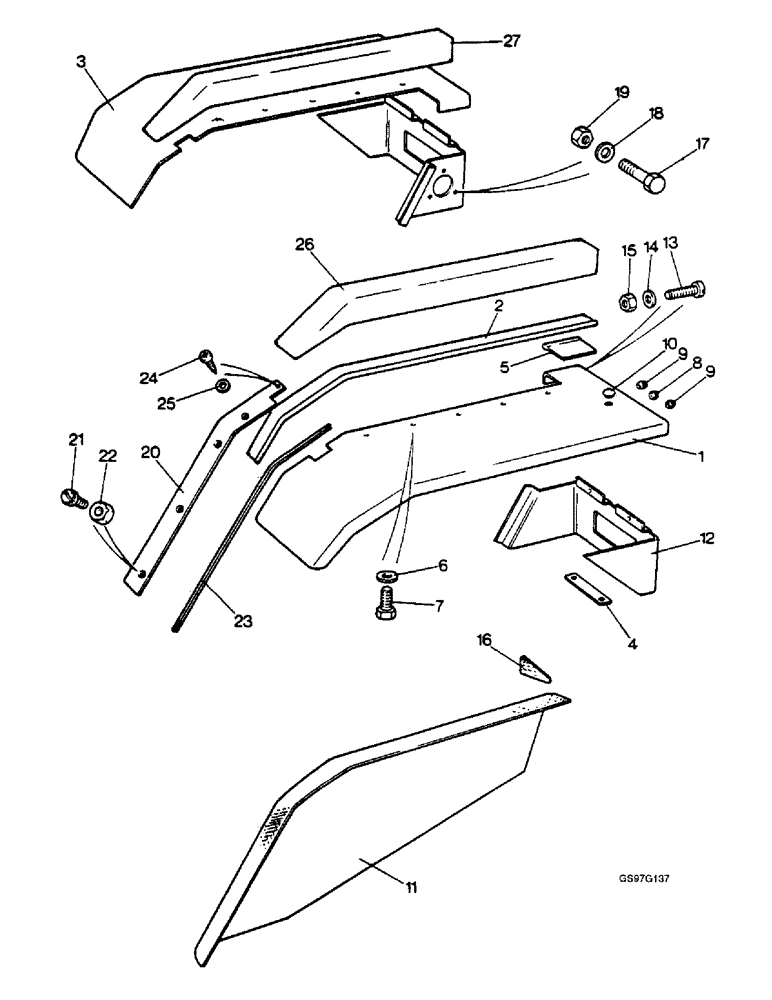

Запчасти Case IH 1212 (9-042) - FENDERS AND TRIM, SEKURA CAB (09) - CHASSIS/ATTACHMENTS

1

K965504

FENDER

left-hand, Sekura 40.776, no longer available

1шт.

2

K965586

GASKET

SEAL fender, Sekura 20.687, no longer available

2шт.

3

K965505

FENDER

right-hand, Sekura 40.777, no longer available

1шт.

4

K965465

CLAMP

PLATE, Sekura 20.321, no longer available

2шт.

5

K965478

SHIM

rubber, not for four-wheel drive tractors, Sekura 20.512, no longer available

2шт.

6

K965553

WASHER

M8, Sekura 912.092, no longer available

6шт.

7

K965565

SCREW

self-tapping, No. 14 x 1 inch, Sekura 916.034, no longer available

6шт.

8

K965621

PLATE

GROMMET holes for license plate, Sekura 946.029, no longer available

1шт.

9

K965620

PLATE

GROMMET holes for license plate, Sekura 946.027, no longer available

2шт.

10

K965622

LAMP

GROMMET holes for rear floodlamp, Sekura 946.052, no longer available

1шт.

11

K965513

FOAM

COVER left-hand fender, Sekura 164.049.01, no longer available

1шт.

K965514

FOAM

COVER right-hand fender, Sekura 164.049.02, no longer available

1шт.

12

K965491

BRACKET

HOUSING left-hand, stop/rear/flasher lamp, Sekura 20.668.01, no longer available

1шт.

K965492

BRACKET

HOUSING right-hand, stop/rear/flasher lamp, Sekura 20.668.02, no longer available

1шт.

13

K965529

SCREW

set, housing to fender, M5 x 25 mm, Sekura 900.055, no longer available

4шт.

14

K965549

WASHER

flat, housing to fender, 3/16 inch, Sekura 912.051, no longer available

4шт.

15

K965543

NUT

M5, Sekura 910.050, no longer available

4шт.

16

K965471

FOAM

COVER triangular, Sekura 20.420, no longer available

2шт.

17

K965535

SCREW

set, trailer socket to housing, M6 x 12 mm, Sekura 905.062, no longer available

3шт.

18

K965550

WASHER

flat, trailer socket to housing, 1/4 inch, Sekura 912.071, no longer available

3шт.

19

K965544

NUT

M6, trailer socket to housing, Sekura 910.060

3шт.

20

K965476

GUARD

STRIP edging, left-hand, Sekura 20.507.01, no longer available

1шт.

K965477

GUARD

STRIP edging, right-hand, Sekura 20.507.02, no longer available

1шт.

21

K965533

SCREW

M8 x 25 mm, Sekura 900.085, no longer available

8шт.

22

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10, Sekura 910.080, No Longer Available

8шт.

23

K965582

STRIP

edging, Sekura 931.009.1050, no longer available

2шт.

24

K965563

SCREW

self-tapping, No. 10 x 3/4 inch, Sekura 916.116, no longer available

2шт.

25

K965559

WASHER

flat, 3/4 inch, Sekura 914.001, no longer available

2шт.

26

K965677

PLATE

spacer, left-hand, four-wheel drive tractors only, Sekura 41.094, no longer available

1шт.

27

K965679

PLATE

spacer, right-hand, four-wheel drive tractors only, Sekura 41.095, no longer available

1шт.
