Запчасти Case IH 1212 (9-032) - BONNET ASSEMBLY, 1210, 1210G, 1212 AND 1212G TRACTORS (09) - CHASSIS/ATTACHMENTS

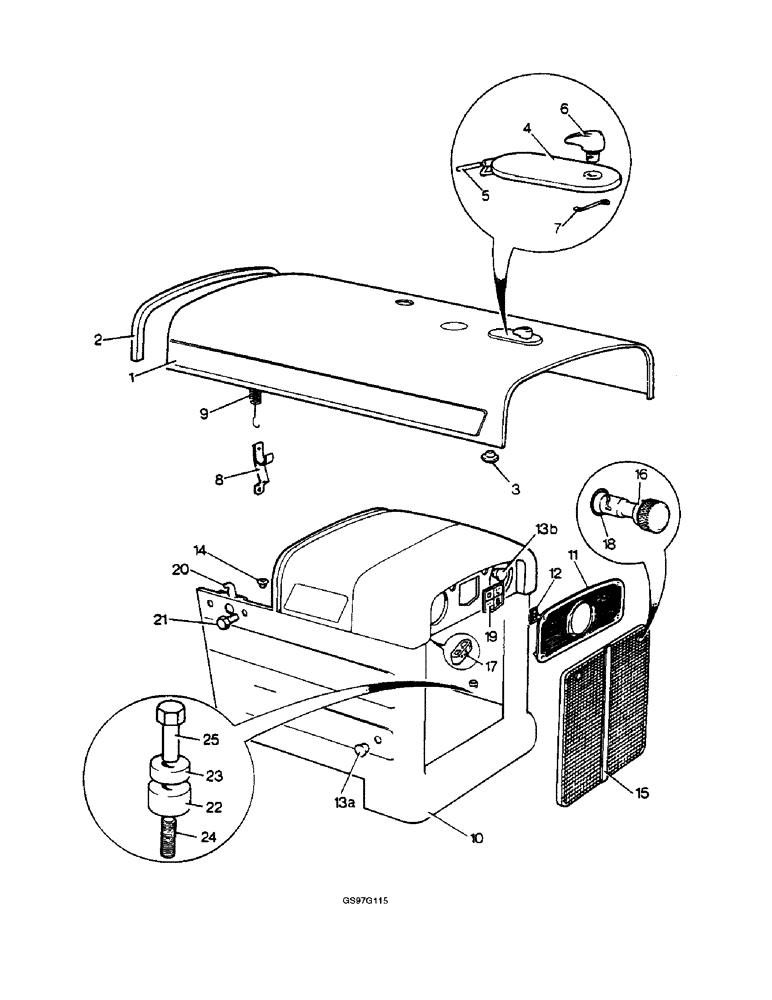

Схема запчастей Case IH 1212 - (9-032) - BONNET ASSEMBLY, 1210, 1210G, 1212 AND 1212G TRACTORS (09) - CHASSIS/ATTACHMENTS
9
6
22
13b
1
16
24
4
10
8
3
15
11
14
2
18
5
21
23
13a
17
19
20
25
7
12

Артикул

Название

Примечание

Количество

1

K916589

GUARD

BONNET ASSEMBLY top, Includes: Ref. 2 - 7, Rivet, and Washer

1шт.

2

K965011

BEAD

TRIM bonnet, 37 inch (940 mm) long (Replaces trim K915789)

1шт.

K624151

RIVET

1/8 x 1/8 inch, no longer available

9шт.

3

K916596

PLUG

rubber

4шт.

4

K962015

COVER

ASSEMBLY hatch, no longer available, Includes: Ref. 5 - 6, Pin, Lever, Washer's, and Ring

1шт.

5

K914557

SPRING

PIN hatch pivot

1шт.

6

K942158

LEVER

hatch fastener, no longer available

1шт.

K626956

WASHER

fibre, 7/16 inch

1шт.

K626899

SHIM

WASHER brass, 7/16 inch

1шт.

100-3343

SNAP RING,#43, .337" Dia, E-Type

Ring, Retaining, (replaces ring K621588) #43, .337" Dia, E-Type

1шт.

7

K917749

FASTENER

SPRING hatch fastener

1шт.

K11405

RIVET

1/8 x 3/8 inch

2шт.

K19495

WASHER

flat, 1/8 inch, no longer available

2шт.

8

K915791

GRIP

finger, no longer available

2шт.

9

K624911

SPRING

finger grip, no longer available

2шт.

10

K962333

HOOD

FRONT bonnet

1шт.

11

K915871

GRILLE

PLATE louvre, outboard headlamps, used with 1210 and 1212 tractors

1шт.

12

131-417

NUT

BUSHING retaining, louvre plate, outboard headlamps, used with 1210 and 1212 tractors

6шт.

13

K627999

PLUG

bonnet side, inboard headlamps, no longer available

2шт.

13

K914804

PLUG

bonnet nose, inboard headlamps

4шт.

14

K921172

SHIM

GROMMET bonnet top location

2шт.

15

K947843

GUARD

LOUVRE bonnet front, 17-1/4 x 19-1/4 inch (Replaces louvre K947642)

1шт.

16

K921811

FASTENER

stud

2шт.

17

K946846

HOLDER

CATCH stud fastener

2шт.

18

K625404

O-RING,0.362" ID x 0.103" Width

stud fastener (Replaces O-ring K623534)

2шт.

19

K951132

DECAL

motif, no longer available

1шт.

20

K915758

LOCK

bonnet, right-hand

1шт.

20

K915759

LOCK

bonnet, left-hand

1шт.

21

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

- machine, pan Phillips, locks to bonnet front, No. 10 NF x 1/2 inch (Replaces screw K614944)

4шт.

K626310

WASHER

flat, locks to bonnet front, 3/16 inch, no longer available

4шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, , Locks to bonnet front (Replaces washer K626340) #10

4шт.

225-14210

NUT,#10-32

Locks to bonnet front (Replaces nut K617080) #10-32

4шт.

22

K915799

RUBBER

GROMMET lower, bonnet front to front extension

4шт.

23

K915800

MISC PACKAGING

GROMMET upper, bonnet front to front extension

4шт.

24

K608160

STUD

bonnet front to front extension, 5/16 NC x 1-3/8 inch (Replaces stud K608128)

4шт.

K626916

WASHER

flat, bonnet front to front extension, 5/16 inch (Replaces washer K626669)

4шт.

K626686

WASHER

flat, bonnet front to front extension, 1/2 inch

4шт.

25

K915801

CLEVIS PIN

NUT special, 5/16 inch NC

4шт.

Выбрано товаров: 38
