Запчасти Case IH 1212 (9-014) - LINKAGE STABILIZERS, TELESCOPIC (09) - CHASSIS/ATTACHMENTS

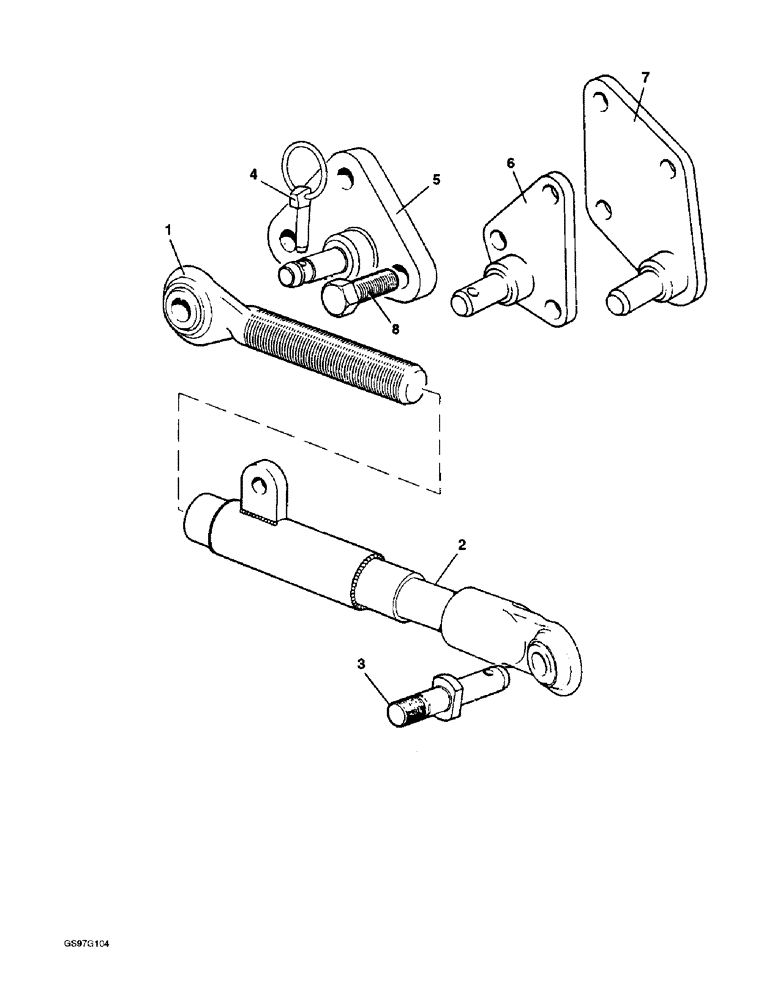

Схема запчастей Case IH 1212 - (9-014) - LINKAGE STABILIZERS, TELESCOPIC (09) - CHASSIS/ATTACHMENTS
3
4
2
5
6
1
8
7

Артикул

Название

Примечание

Количество

K208100

STABILIZER ASSEMBLY linkage (Replaces stabilizer assembly K932321)

1шт.

Used with 1210, 1212, 1210Q, 1212Q, 1210G, 1212G, 1210Sk and 1212Sk tractors.

1шт.

K401000

ASSEMBLY linkage (Replaces stabilizer assembly K932388)

1шт.

Used with 1210, 1212, 1210Q, 1212Q, 1210G, 1212G, 1210Sk and 1212Sk tractors.

1шт.

K954646

STABILIZER

BAR ASSEMBLY, no longer available as an assembly, order components, Includes: Ref. 1 and 2

2шт.

1

K914993

END

HOUSING ball, front

1шт.

2

K954647

TIE-ROD,8.125" L

HOUSING ball, rear

1шт.

3

K907008

PIN

lower link

2шт.

425-1012

NUT,3/4"-10, G5

(Replaces nut K607049) 3/4"-10, G5

2шт.

492-11075

LOCK WASHER,3/4"

(Replaces washer K19486) 3/4"

2шт.

4

A33509

PIN,11.18mm OD

linch (Replaces pin K920359)

4шт.

5

K922664

PLATE

BRACKET normal clearance

2шт.

Used with 1210, 1212, 1210Q, 1212Q, 1210G, 1212G, 1210Sk and 1212Sk tractors.

1шт.

6

K948528

PLATE

BRACKET high clearance, left-hand, no longer available

1шт.

Used with 1210, 1212, 1210Q, 1212Q, 1210G, 1212G, 1210Sk and 1212Sk tractors.

1шт.

6

K948529

PLATE

BRACKET high clearance, right-hand, no longer available

1шт.

Used with 1210, 1212, 1210Q, 1212Q, 1210G, 1212G, 1210Sk and 1212Sk tractors.

1шт.

7

K200189

SUPPORT

BRACKET left-hand (Replaces bracket K954571)

1шт.

Used with 1210, 1210G, 1210Q and 1210Sk four-wheel drive tractors with serial number 11158038 and after.

1шт.

7

K200190

SUPPORT

BRACKET right-hand (Replaces bracket K954572)

1шт.

Used with 1210, 1210G, 1210Q and 1210Sk four-wheel drive tractors with serial number 11158038 and after.

1шт.

8

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

hex, 5/8 NC x 1-3/8 inch (Replaces screw K603305)

6шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Replaces washer K19485) 5/8"

6шт.
