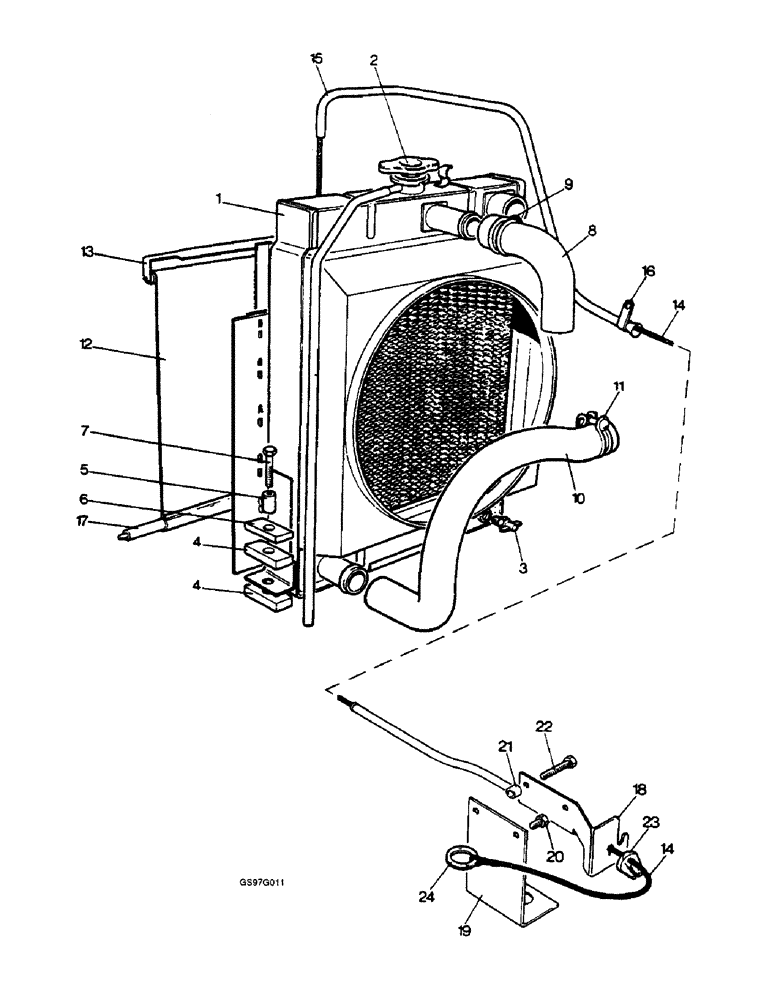

Запчасти Case IH 1212 (2-02) - RADIATOR AND BLIND (02) - ENGINE

1

K922080

RADIATOR

standard, 2-1/2 inch block

1шт.

1

K922081

RADIATOR

tropical, 2-3/4 inch block

1шт.

2

K945363

CAP

filler, 4 lb/square inch, used with radiator K922080

1шт.

2

E81942

RADIATOR CAP,Vented

filler, 7 lb/square inch, used with radiator K922081 (Replaces cap K945362)

1шт.

3

K622060

PLUG, DRAIN

TAP, 1/4 BSP

1шт.

K19501

WASHER

fibre

1шт.

4

K921836

WEDGE

PAD radiator foot

4шт.

5

K908823

TUBE,0.562" OD x 0.875" L

SPACER distance

2шт.

6

K921837

SHIM

PLATE clamping

2шт.

7

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

(Replaces K600406) Hex, 3/8"-16 x 1 3/4", G5

2шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer K19482) 3/8"

2шт.

8

K921972

HOSE

radiator inlet

1шт.

9

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

CLAMP, HOSE, , Adjustable (Replaces clamps K13078 and K622029) #28, 1.31/2.25 Type F Worm

3шт.

10

K948453

HOSE

radiator outlet

1шт.

11

K622029

CLAMP

hose, 2 inch ID (Replaces clamp K622081)

1шт.

K925877

COVER

BLIND ASSEMBLY radiator, hydrostatic steering, tractors for Europe only, no longer available, Includes: Ref. 12 - 24

1шт.

Blind assemblies K925877 and K918567 and their components are used with 1210, 1210G, 1212 and 1212G tractors.

1шт.

K918567

BLIND ASSEMBLY radiator, manual steering, tractors for Europe only, no longer available, Includes: Ref. 12 - 24

1шт.

Blind assemblies K925877 and K918567 and their components are used with 1210, 1210G, 1212 and 1212G tractors.

1шт.

12

K908846

COVER

BLIND radiator

1шт.

13

K64925

ROD

pull

1шт.

14

K67196

ROPE

CORD control, no longer available

1шт.

15

K921969

TUBE

control cord

1шт.

16

K621616

CLIP

CLAMP, Serial Range: tube-manifold

1шт.

K627749

GROMMET

3/8 inch, no longer available

1шт.

17

K921971

ROD

ANCHOR blind

1шт.

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), (Replaces pin K19520) 1/16" x 1/2"

1шт.

18

K919709

GUIDE

TUBE rear guide

1шт.

19

K928608

BRACKET

support, guide tube, hydrostatic steering

1шт.

20

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

hex, hydrostatic steering, 5/16 NC x 1/2 inch, (Replaces screw K602840)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , hydrostatic steering (Replaces washer K19481) 5/16"

2шт.

425-105

NUT,5/16"-18, G5

- hex, hydrostatic steering, 5/16 inch NC, (Replaces nut K607044)

2шт.

21

K919710

BUSHING

SPACER distance, manual steering, no longer available

2шт.

22

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

hex, manual steering, 5/16 NC x 1-1/2 inch, (Replaces screw K602809)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , manual steering (Replaces washer K19481) 5/16"

2шт.

23

K952633

ROD

ANCHOR control cord

1шт.

24

K952646

KEY

RING control cord, no longer available

1шт.
