Запчасти Case IH 1212 (9-010) - LINKAGE STABILIZERS, RIGID (09) - CHASSIS/ATTACHMENTS

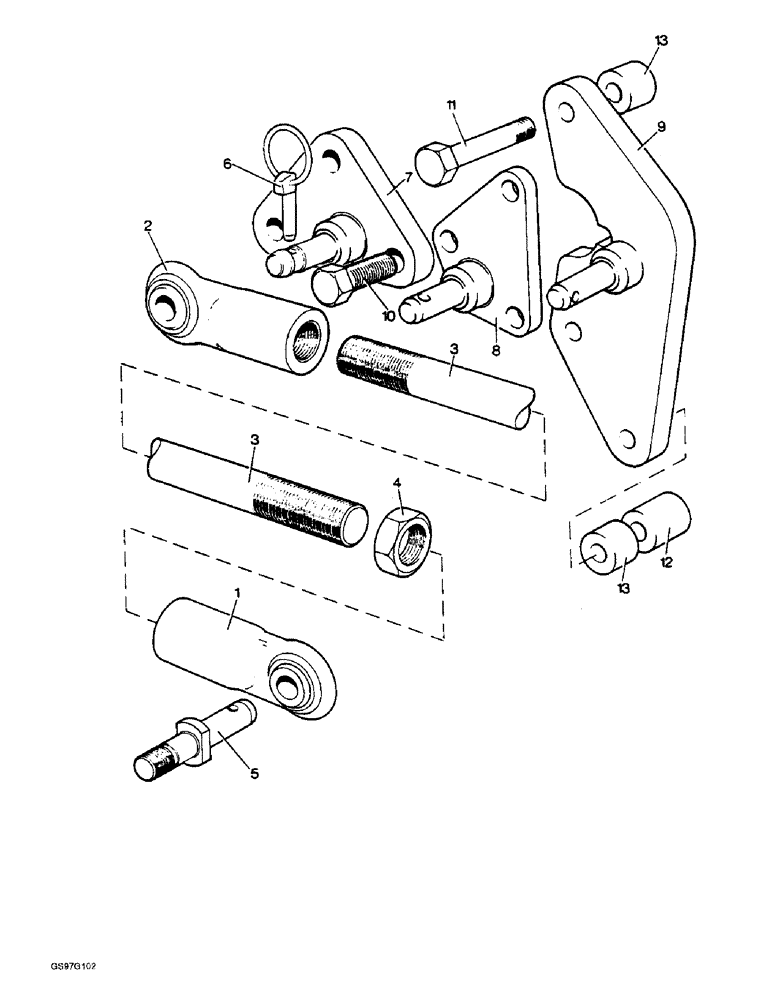

Схема запчастей Case IH 1212 - (9-010) - LINKAGE STABILIZERS, RIGID (09) - CHASSIS/ATTACHMENTS
1
11
2
12
3
9
8
10
7
6
3
5
13
4
13

Артикул

Название

Примечание

Количество

K918178

LINKAGE

STABILIZER ASSEMBLY - linkage, used with 1210, 1212, 1210Q, 1212Q, 1210Sk & 1212Sk tractors, no longer available, order housing K901821, Ref. 1; housing K901818, Ref. 2; bar K901815, Ref. 3; nut K11569, Ref. 4; pin K907008, Ref. 5; pin A33509

1шт.

K931482

SPARE PART

STABILIZER ASSEMBLY linkage, used with 1210, 1210Q and 1210Sk four-wheel drive tractors with serial number 11158038 and after, no longer available

1шт.

K912766

STABILIZER

BAR ASSEMBLY, no longer available as an assembly, order components, Includes: Ref. 1 - 4

2шт.

1

K901821

BALL

HOUSING, rear

1шт.

2

K901818

PIVOT

HOUSING ball, front

1шт.

3

K901815

SCREW,21-1/4mm

BAR threaded

1шт.

4

K11569

NUT

lock, 1 inch BSF, no longer available

1шт.

5

K907008

PIN

lower link

2шт.

492-11075

LOCK WASHER,3/4"

(Replaces washer K19486) 3/4"

2шт.

425-1012

NUT,3/4"-10, G5

(Replaces nut K607049) 3/4"-10, G5

2шт.

6

A33509

PIN,11.18mm OD

linch (Replaces pin K920359)

2шт.

7

K922664

PLATE

BRACKET standard clearance, used with 1210, 1212, 1210Q, 1212Q, 1210Sk and 1212Sk tractors

2шт.

8

K948529

PLATE

BRACKET right-hand, high clearance, used with 1210, 1212, 1210Q, 1212Q, 1210Sk and 1212Sk tractors, no longer available

1шт.

K948528

PLATE

BRACKET left-hand, high clearance, used with 1210, 1212, 1210Q, 1212Q, 1210Sk and 1212Sk tractors, no longer available

1шт.

9

K948477

STABILIZER

BRACKET right-hand, used with 1210, 1210Q and 1210Sk four-wheel drive tractors, no longer available

1шт.

K948478

STABILIZER

BRACKET left-hand, used with 1210, 1210Q and 1210Sk four-wheel drive tractors

1шт.

10

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

Brackets to reductions, Used with 1210, 1210Q and 1210Sk four-wheel drive tractors Hex, 5/8"-11 x 1 1/2", G5, Full Thd

6шт.

11

B90209

SCREW

BOLT hex, 5/8 NC x 3-1/4 inch, brackets to reductions, used with 1210, 1210Q and 1210Sk four-wheel drive tractors

6шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Brackets to reductions (Replaces washer K19485) 5/8"

6шт.

12

K627101

BUSHING

SPACER brackets to reductions, 1-9/16 inch, used with 1210, 1210Q and 1210Sk four-wheel drive tractors

2шт.

13

K627100

BUSHING

SPACER brackets to reductions, 1-3/32 inch, used with 1210, 1210Q and 1210Sk four-wheel drive tractors

4шт.

Выбрано товаров: 21
