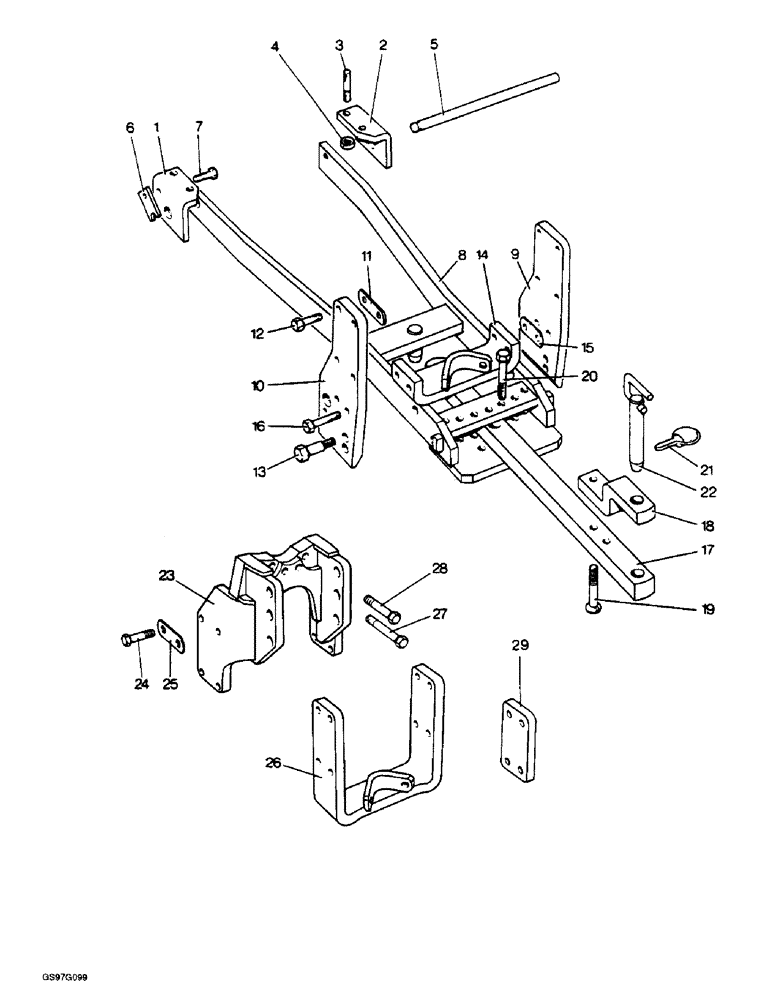

Запчасти Case IH 1212 (9-002) - DRAWBAR AND SUPPORT FRAME, 1210, 1212, 1210G, 1212G, 1210Q, 1212Q, 1210SK AND 1212SK TRACTORS (09) - CHASSIS/ATTACHMENTS

1

K929818

BRACKET

hinge, left-hand

1шт.

2

K929819

BRACKET

hinge, right-hand

1шт.

3

K608610

STUD

5/8 NC x 2-1/2 inch

4шт.

4

232-14110

LOCK NUT,5/8"-11, GC

NUT, LOCK, (Replaces nut K607306) 5/8"-11, GC

4шт.

5

K943026

HINGE

BAR

1шт.

6

K943027

PLATE

retaining

1шт.

7

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch (Replaces bolt K600475)

1шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer K19482) 3/8"

1шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut K607045) 3/8"-16, G5

1шт.

8

K947168

SUPPORT

drawbar

1шт.

9

K947173

BRACKET

PLATE hitch, right-hand, without support ram, multi-speed PTO, no longer available

1шт.

9

K307260

BRACKET

PLATE hitch, right-hand, with support ram, multi-speed PTO (Replaces plate K944983)

1шт.

9

K956125

HITCH ASSY

PLATE hitch, left-hand, reversible shaft PTO, no longer available

1шт.

Used with 1210, 1212, 1210Q, 1212Q, 1210Sk, 1212Sk, 1210 four-wheel drive, 1210Q four-wheel drive and 1210Sk four-wheel drive tractors.

1шт.

9

K956123

HITCH ASSY

PLATE, right-hand, without support ram, reversible shaft PTO, no longer available

1шт.

Used with 1210, 1212, 1210Q, 1212Q, 1210Sk, 1212Sk, 1210 four-wheel drive, 1210Q four-wheel drive and 1210Sk four-wheel drive tractors.

1шт.

9

K956229

BRACKET

PLATE hitch, right-hand, with support ram, reversible shaft PTO

1шт.

Used with 1210, 1212, 1210Q, 1212Q, 1210Sk, 1212Sk, 1210 four-wheel drive, 1210Q four-wheel drive and 1210Sk four-wheel drive tractors.

1шт.

10

K947171

BRACKET

PLATE hitch, left-hand, multi-speed PTO, no longer available

1шт.

11

K917071

SHIM

hitch plates to PTO, 1/16 inch

1шт.

11

K917072

SHIM

hitch plates to PTO, 1/32 inch

1шт.

12

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

hex, 5/8 NC x 1-3/4 inch, hitch plates to PTO (Replaces bolt K603308)

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Hitch plates to PTO (Replaces washer K19485) 5/8"

8шт.

13

K908290

STEP BOLT

special, drawbar support to hitch plates, 3/4 NC

2шт.

492-11075

LOCK WASHER,3/4"

drawbar support to hitch plates (Replaces washer K19486) 3/4"

2шт.

425-1012

NUT,3/4"-10, G5

Drawbar support to hitch plates (Replaces nut K607049) 3/4"-10, G5

2шт.

14

K947174

PLATE

bridge, without pick-up hitch, no longer available

1шт.

14

K947176

PLATE

bridge, with pick-up hitch, no longer available

1шт.

Used with 1210, 1212, 1210Q, 1212Q, 1210Sk, 1212Sk, 1210 four-wheel drive, 1210Q four-wheel drive and 1210Sk four-wheel drive tractors.

1шт.

15

K947200

SHIM

bridge plates to hitch plates, 1/16 inch

1шт.

15

K947201

SHIM

bridge plates to hitch plates, 1/32 inch

1шт.

16

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

Bridge plates to hitch plates (Replaces bolt K601208) Hex, 5/8"-11 x 2 1/2", G5

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Bridge plates to hitch plates (Replaces washer K19485) 5/8"

4шт.

129-107

NUT,5/8"-11, G5

Bridge plates to hitch plates (Replaces nut K607006) 5/8"-11, G5

4шт.

17

K947677

DRAWBAR, SWINGING

multi-speed PTO

1шт.

Used with 1210, 1212, 1210Q, 1212Q, 1210Sk, 1212Sk, 1210 four-wheel drive, 1210Q four-wheel drive and 1210Sk four-wheel drive tractors.

1шт.

17

K948406

DRAWBAR, SWINGING

reversible shaft PTO

1шт.

Used with 1210, 1212, 1210Q, 1212Q, 1210Sk, 1212Sk, 1210 four-wheel drive, 1210Q four-wheel drive and 1210Sk four-wheel drive tractors.

1шт.

18

K916516

CLEVIS

BRACKET

1шт.

Used with 1210, 1212, 1210Q, 1212Q, 1210Sk, 1212Sk, 1210 four-wheel drive, 1210Q four-wheel drive and 1210Sk four-wheel drive tractors.

1шт.

19

K601664

BOLT

hex, special, 5/8 NC x 3-1/4 inch (Replaces bolt K601664)

2шт.

Used with 1210, 1212, 1210Q, 1212Q, 1210Sk, 1212Sk, 1210 four-wheel drive, 1210Q four-wheel drive and 1210Sk four-wheel drive tractors.

1шт.

K607463

NUT

hex, self-locking, 5/8 inch NC

2шт.

Used with 1210, 1212, 1210Q, 1212Q, 1210Sk, 1212Sk, 1210 four-wheel drive, 1210Q four-wheel drive and 1210Sk four-wheel drive tractors.

1шт.

20

413-1068

BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 5

hex, 5/8 NC x 4-1/2 inch (Replaces bolt K601334)

2шт.

232-14110

LOCK NUT,5/8"-11, GC

NUT, LOCK, (Replaces nut K607306) 5/8"-11, GC

2шт.

21

A33509

PIN,11.18mm OD

linch (Replaces pin K920359)

1шт.

Used with 1210, 1212, 1210Q, 1212Q, 1210Sk, 1212Sk, 1210 four-wheel drive, 1210Q four-wheel drive and 1210Sk four-wheel drive tractors.

1шт.

22

K946789

HITCH PIN

hitch

1шт.

Used with 1210, 1212, 1210Q, 1212Q, 1210Sk, 1212Sk, 1210 four-wheel drive, 1210Q four-wheel drive and 1210Sk four-wheel drive tractors.

1шт.

23

K947278

SUPPORT

drawbar, no longer available, high hitch, tractors for Europe only

1шт.

Used with 1210G, 1212G and 1210G four-wheel drive tractors.

1шт.

24

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

(Replaces bolt K601208), High hitch drawbar tractors for Europe only Hex, 5/8"-11 x 2 1/2", G5

8шт.

Used with 1210G, 1212G and 1210G four-wheel drive tractors.

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Replaces washer K19485), high hitch drawbar tractors for Europe only 5/8"

8шт.

Used with 1210G, 1212G and 1210G four-wheel drive tractors.

1шт.

25

K917071

SHIM

1/16 inch, high hitch drawbar tractors for Europe only

1шт.

Used with 1210G, 1212G and 1210G four-wheel drive tractors.

1шт.

25

K917072

SHIM

1/32 inch, high hitch drawbar tractors for Europe only

1шт.

Used with 1210G, 1212G and 1210G four-wheel drive tractors.

1шт.

26

K924213

CHAIN (AG)

ANCHOR check, no longer available, high hitch drawbar tractors for Europe only

1шт.

Used with 1210G, 1212G and 1210G four-wheel drive tractors.

1шт.

27

K601322

BOLT

hex, 5/8 NC x 2-1/2 inch (Replaces bolt K601208), high hitch drawbar tractors for Europe only

2шт.

Used with 1210G, 1212G and 1210G four-wheel drive tractors.

1шт.

28

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

hex, 5/8 NC x 2-1/4 inch (Replaces bolt K601206), high hitch drawbar tractors for Europe only

2шт.

Used with 1210G, 1212G and 1210G four-wheel drive tractors.

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Replaces washer K19485), high hitch drawbar tractors for Europe only 5/8"

4шт.

Used with 1210G, 1212G and 1210G four-wheel drive tractors.

1шт.

29

K919616

BUSHING

SPACER used if anchor K924213, item 26, is not fitted, no longer available, high hitch drawbar tractors for Europe only

2шт.

Used with 1210G, 1212G and 1210G four-wheel drive tractors.

1шт.
