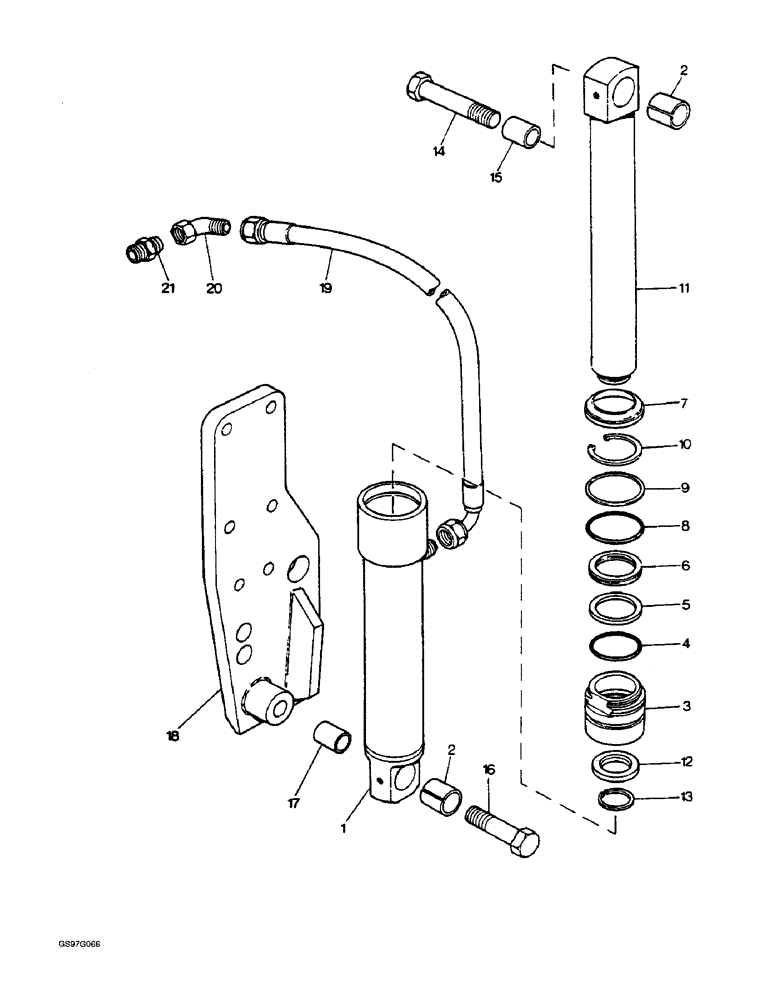

Запчасти Case IH 1212 (8-68) - LINKAGE SUPPORT RAM (08) - HYDRAULICS

K161600

ASSEMBLY

RAM linkage support, multi-speed PTO (Replaces ram assembly K930884), Includes: Ref. 1 - 21

1шт.

K932659

CYLINDER

RAM ASSEMBLY linkage support, reversible shaft PTO, no longer available, Includes: Ref. 1 - 21

1шт.

K932586

RAM ASSEMBLY linkage support, four-wheel drive tractors with serial number 11158038 and after, Includes: Ref. 1 - 21

1шт.

K924497

CYLINDER

RAM ASSEMBLY support, Includes: Ref. 1 - 21

1шт.

1

K924634

CYLINDER

HOUSING ram

1шт.

2

K690720

BUSHING

tension

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper (Replaces fitting K13176) 1/4"-28 NPT x .54" lg

2шт.

3

K924639

SLEEVE

ram rod

1шт.

K962911

SEAL

seal, no longer available as a kit, order components, Includes: Ref. 4 - 9

1шт.

4

238-6327

O-RING,0.21" Thk x 1.725" ID, -327, Cl 6, 90 Duro

(Replaces O-ring K961287) -327, 90 Duro, 1.725" ID x .210" Thk

1шт.

5

K691286

RING

anti-extrusion, 1-3/4 inch ID

1шт.

6

K691285

SEAL

1-3/4 inch ID

1шт.

7

K691505

SEAL,44.45mm ID x 12.7mm Thk

scraper, 1-3/4 inch ID

1шт.

8

238-6228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

(Replaces O-ring K24844) -228, 90 Duro, 2.234" ID x .139" Thk

1шт.

9

K623529

RING,56.95mm ID x 1.83mm OD x 3.3mm Thk

anti-extrusion, 2-1/4 inch ID

1шт.

10

100-21250

SNAP RING,2.50", Int, #250

Ring, Snap, (Replaces K11735) 2.50", Int, #250

1шт.

11

K924640

ROD

ram

1шт.

12

K924643

STOP

RING

1шт.

13

K11129

RING, SNAP

1-1/4 inch

2шт.

14

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

hex, cylinder to lift arm, 3/4 NC x 4 inch (Replaces bolt K601466)

1шт.

K19476

WASHER

flat, cylinder to lift arm, 3/4 inch

1шт.

15

K901963

BUSHING

cylinder to lift arm

1шт.

K607446

NUT

hex, self-locking, cylinder to lift arm, 3/4 inch NC

1шт.

16

413-1428

BOLT,Hex, 7/8" - 9 x 1-3/4", Gr 5

hex, cylinder to hitch plate, 3/4 NC x 3 inch (Replaces bolt K601462)

1шт.

492-11075

LOCK WASHER,3/4"

cylinder to hitch plate (Replaces washer K19486) 3/4"

1шт.

K199476

WASHER flat, cylinder to hitch plate, 3/4 inch

1шт.

17

K901963

BUSHING

cylinder to hitch plate

1шт.

18

K307260

BRACKET

PLATE hitch, right-hand, multi-speed PTO (Replaces plate K944983)

1шт.

18

K956229

BRACKET

PLATE hitch, right-hand, reversible shaft PTO

1шт.

19

K924211

HOSE

PIPE flexible, 3/4 NF x 45 inch (1143 mm) long

1шт.

20

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, three-way valve, 3/4-16 inch flare x swivel flare (Replaces elbow K622115)

1шт.

21

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER straight, 3/4-16 inch flare x O-ring boss (Replaces union K626039)

1шт.
