Запчасти Case IH 1210 (E38) - SELECTAMATIC HYDRAULIC SYSTEM, THREE WAY SELECTOR VALVE UNITS - ALL MODELS, OPTIONAL EQUIPMENT (07) - HYDRAULIC SYSTEM

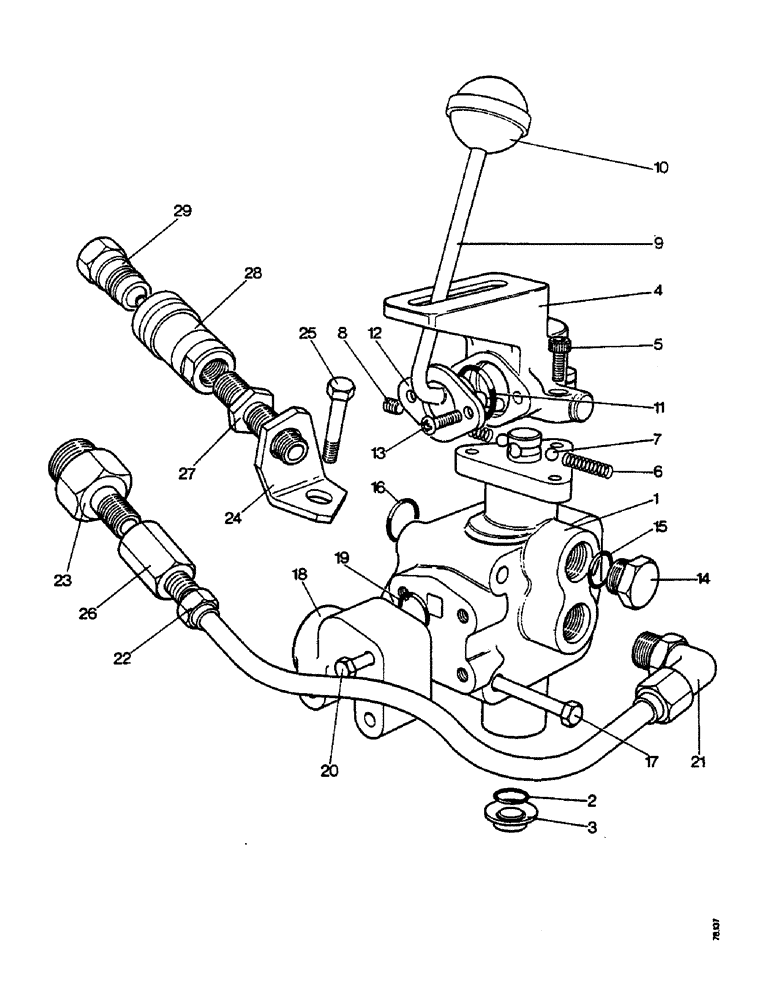

Схема запчастей Case IH 1210 - (E38) - SELECTAMATIC HYDRAULIC SYSTEM, THREE WAY SELECTOR VALVE UNITS - ALL MODELS, OPTIONAL EQUIPMENT (07) - HYDRAULIC SYSTEM
27
1
23
4
26
29
24
20
12
21
6
28
18
13
8
17
7
11
3
25
15
19
9
16
10
5
22
2
14

Артикул

Название

Примечание

Количество

K918505

NO LONGER SERVICED

THREE-WAY VALVE, with Exactor coupling - U1116 (1210, 1212)

1шт.

K918358

NO LONGER SERVICED

THREE-WAY VALVE, with quick release coupling - U1057 (1210, 1212)

1шт.

K918197

NO LONGER SERVICED

THREE-WAY VALVE, less pipe and coupling - U958 (1210, 1212)

1шт.

K922498

NO LONGER SERVICED

THREE-WAY VALVE, with Exactor coupling - U1230 (885, 990, 995, 996)

1шт.

K122900

LOCK VALVE

THREE-WAY VALVE, with quick release coupling - U1229 (885, 990, 995, 996) (replaces K922497)

1шт.

K918360

VALVE

THREE-WAY VALVE, less pipe and coupling - U1054 (885, 990, 995, 996)

1шт.

1

K919825

NO LONGER SERVICED

VALVE ASSEMBLY, Includes: Ref. 2 - 13 and spring washer

1шт.

2

K625408

O-RING

'O' RING, 7/16 in internal dia. replaces K24779

2шт.

3

K919826

BREATHER

1шт.

4

K919611

COVER

1шт.

K944527

GASKET,0.15mm Thk

1шт.

K915393

FOAM

BREATHER PAD

1шт.

5

K606501

SCREW

1/4 UNC x 5/8 in

3шт.

6

K625208

SPRING

2шт.

7

K17063

BALL

STEEL BALL, 1/4 in

2шт.

8

K606020

SCREW

GRUBSCREW, 5/16 x 1/4 in

1шт.

9

K919612

LEVER

1шт.

10

K902270

KNOB

1шт.

11

K16351

O-RING,3.53mm Thk x 24.99mm ID

'O' RING, 1 in internal dia.

1шт.

12

K919613

SHIM

PLATE

1шт.

13

K614924

SCREW

10 UNF x 1/2 in

2шт.

K19488

SPRING WASHER

SPRING WASHER, 3/8 in

2шт.

14

K920826

O-RING

PLUG, 3/4 UNF

2шт.

15

K623589

O-RING

'O' RING, 5/8 in internal dia.

2шт.

16

K24556

O-RING,0.734" ID x 1.012" OD x 0.139"

'O' RING, 3/4 in internal dia.

2шт.

17

K600416

BOLT

3/8 UNC x 3 in

4шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in

4шт.

18

K919614

ADAPTER

ADAPTOR (885, 990, 995, 996)

1шт.

19

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

'O' RING, 11/16 in internal dia. (885, 990, 995, 996)

1шт.

20

K600209

BOLT

5/16 UNC x 2 in, replaces K600208 (885, 990, 995, 996)

3шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in (885, 990, 995, 996)

3шт.

21

K622114

FITTING

ELBOW, 3/4 UNF, 90 deg.

1шт.

22

K921215

PIPE

, Serial Range: valve-coupling

1шт.

23

K921964

COUPLING, BREAK AWAY

EXACTOR COUPLING, tractor half, units, all models

1шт.

K960657

BREAKER POINTS

DUST COVER, Exactor coupling, units, all models

1шт.

K627920

CONNECTOR, ELEC

EXACTOR COUPLING, hose half, units, all models

1шт.

24

K921160

BRACKET

coupling units, all models

1шт.

25

K600816

BOLT

1/2 UNC x 3-1/2 in, bracket to sensing unit, coupling, all models

2шт.

K626686

WASHER

1/2 in, bracket to sensing unit, coupling, all models

1шт.

26

K921858

ADAPTER

ADAPTOR, 1/2 BSP, pipe to Exactor coupling, units, all models

1шт.

27

K921178

ADAPTER

ADAPTOR, 1/2 BSP, pipe to quick release coupling, units, all models

1шт.

K921216

COUPLING, BREAK AWAY

QUICK RELEASE COUPLING, complete, units, all models, Includes: Ref. 28 & 29A

1шт.

28

K929247

BREAKER POINTS

TRACTOR HALF, coupling units, all models

1шт.

29a

K921982

BREAKER POINTS

HOSE HALF, coupling units, all models

1шт.

K921217

PLUG

DUST COVER, coupling units, all models

1шт.

K626783

WASHER

SEALING WASHER, 7/8 in, coupling units, all models

1шт.

K19647

NUT

LOCKNUT, 1/2 BSP, coupling units, all models

1шт.

29b

K921982

BREAKER POINTS

QUICK RELEASE COUPLING, hose half (U1122 (918520), units, all models

1шт.

K15737

SEALING WASHER

7/8 in (universal coupling), units, all models

2шт.

K627134

SPACER

DISTANCE PIECE (universal coupling), coupling units, all models

1шт.

K921964

COUPLING, BREAK AWAY

EXACTOR COUPLING, tractor half (universal coupling), units, all models

1шт.

29c

K921982

BREAKER POINTS

QUICK RELEASE COUPLING, hose half (U1123 (918521), units, all models

1шт.

K15737

SEALING WASHER

7/8 in (universal coupling), units, all models

2шт.

K627134

SPACER

DISTANCE PIECE (universal coupling), coupling units, all models

1шт.

K921984

COUPLING, BREAK AWAY

DOWTY COUPLING, tractor half (universal coupling), units, all models

1шт.

Выбрано товаров: 55
