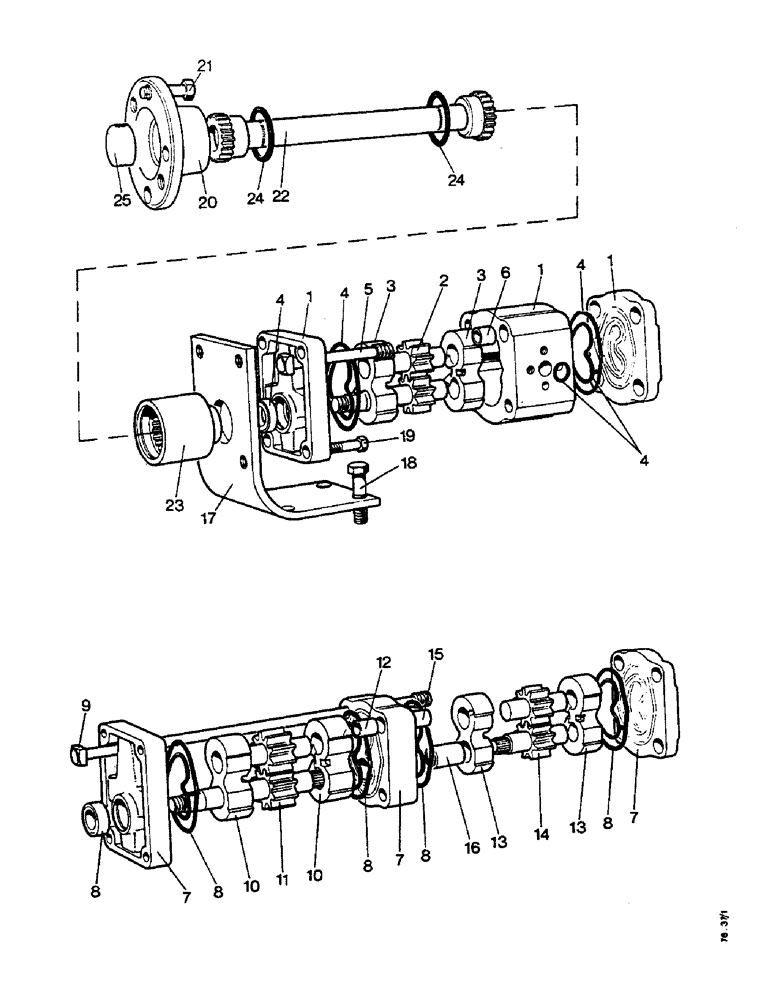

Запчасти Case IH 1210 (E18) - SELECTAMATIC HYDRAULIC SYSTEM, HYDRAULIC PUMP, 1210 AND 1212 TRACTORS (07) - HYDRAULIC SYSTEM

1

K919048

PUMP

SINGLE PUMP ASSEMBLY, (Plessey A25UT)

1шт.

K962112

COVER

front, Includes: Ref. 2 - 6

1шт.

2

K962090

GEAR

ROTORS, one pair

1шт.

3

K962089

BEARING

2шт.

4

K962088

RING

SEAL PACK, single pump

1шт.

5

K962103

BOLT, 3/8 UNF, special

4шт.

6

K962099

PIN

RING DOWEL

8шт.

K962100

PLATE

FLANGE

1шт.

K616982

NUT

3/8 UNF

4шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in

4шт.

7

K916535

PUMP

TANDEM PUMP ASSEMBLY, 13 gal.

1шт.

K916535R

REMAN-HYD PUMP

1210, 1212 BOTH (1/71-12/76)

1шт.

K916535C

CORE-HYDRAULIC PUMP

Return Number

1шт.

K962112

COVER

front, Includes: Ref. 8 - 16

1шт.

8

K962117

PUMP

SEAL PACK, both pump sections

1шт.

9

K962111

BOLT

3/8 UNF

4шт.

K616982

NUT

3/8 UNF

4шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in

4шт.

10

K962116

BEARING ASSY

BEARING, 6.5 pump section

2шт.

11

K962109

GEAR

ROTORS, one pair, 6.5 pump section

1шт.

12

K962099

PIN

RING DOWEL, 6.5 pump section

4шт.

13

K962089

BEARING

5.0 pump section

2шт.

14

K962105

GEAR

ROTORS, one pair, 5.0 pump section

1шт.

15

K962110

PIN

RING DOWEL, 5.0 pump section

4шт.

16

K962107

COUPLING, BREAK AWAY

MUFF COUPLING, 5.0 pump section

1шт.

K962100

PLATE

FLANGE

1шт.

17a

K944951

SUPPORT

BRACKET

1шт.

Used on model 1212, S/N 1004792 and after

1шт.

Used on model 1210, S/N 730832 and after

1шт.

17b

K924855

SUPPORT

BRACKET

1шт.

Used on model 1210, up to S/N 730832

1шт.

Used on model 1212, up to S/N 1004792

1шт.

18

K603107

BOLT,1/2" x 1 3/8"

BOLT, 1/2 UNC x 1-3/8 in, Serial Range: bracket-frame

4шт.

K603109

BOLT

1/2 UNC x 1-5/8 in, bracket to frame (tandem pump)

2шт.

Used on model 1212, S/N 1004792 and after

1шт.

Used on model 1210, S/N 730832 and after

1шт.

K19484

LOCK WASHER

SPRING WASHER, 1/2 in, Serial Range: bracket-frame

3шт.

K19474

HARDWARE

WASHER, 1/2 in, Serial Range: bracket-frame

1шт.

19

K600006

BOLT

1/4 UNC x 1-1/2 in, Serial Range: pump-bracket

4шт.

K19480

SPRING WASHER

SPRING WASHER, 1/2 in, Serial Range: pump-bracket

4шт.

K607000

NUT

1/4 UNC, Serial Range: pump-bracket

4шт.

23a

K944947

COUPLING, BREAK AWAY

COUPLING, crankshaft pulley, 1-3/4"

1шт.

Used on model 1212, S/N 1004792 and after

1шт.

Used on model 1210, S/N 730832 and after

1шт.

20

K910538

COUPLING, BREAK AWAY

COUPLING, crankshaft pulley

1шт.

Used on model 1210, up to S/N 730832

1шт.

Used on model 1212, up to S/N 1004792

1шт.

21

K600359

BOLT

5/16 UNC x 1-1/4 in, coupling to crankshaft pulley

4шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in, coupling to crankshaft pulley

4шт.

22

K912149

DRIVE SHAFT

DRIVESHAFT, 9 1/8" long

1шт.

23b

K917058

COUPLING, BREAK AWAY

COUPLING, pump, .677 Bore w/ taper, 2 3/4" long

1шт.

K19604

KEY

Woodruff No. 405

1шт.

425-157

JAM NUT,Jam, 7/16"-20, G5

7/16 UNF

1шт.

K626380

WASHER

TABWASHER

1шт.

24

K623555

O-RING,1.396" OD x 0.255" Width

'O' RING, 1-7/16 in internal dia.

2шт.

25

K627581

BUSHING

RUBBER DISC, 7/16 in, alternatives

1шт.

K627582

BUSHING

RUBBER DISC, 9/16 in, alternatives

1шт.

K627583

BUSHING

RUBBER DISC, 3/8 in, alternatives

1шт.

K918171 Kit Pump for 1210/1212

1шт.
