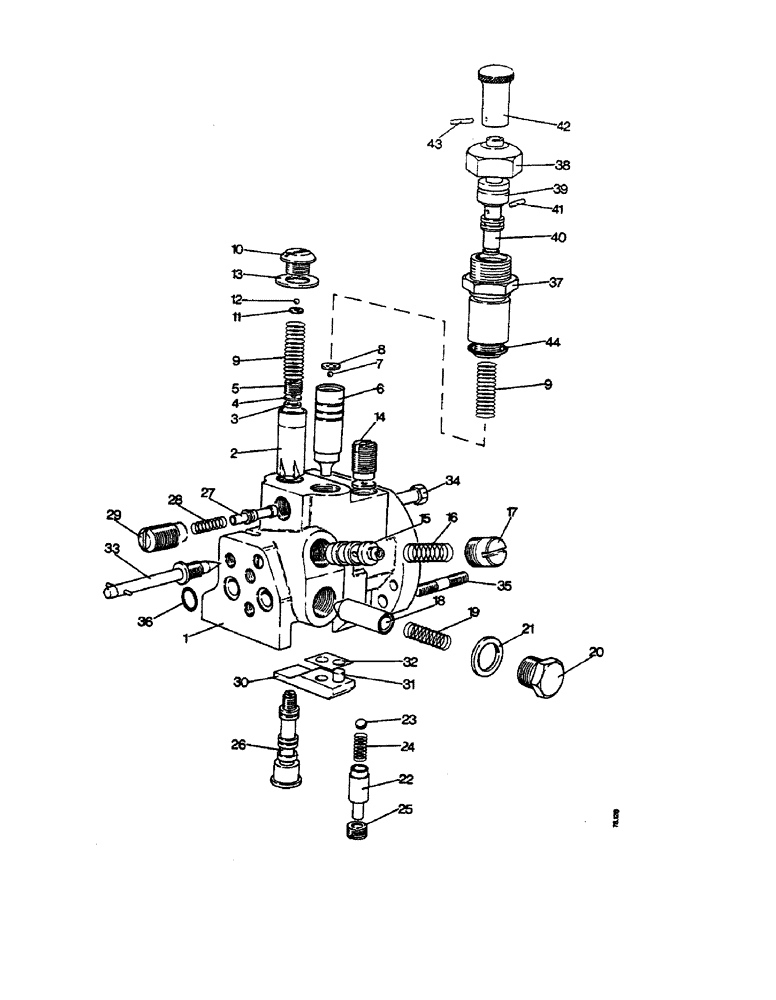

Запчасти Case IH 1210 (E14) - SELECTAMATIC HYDRAULIC SYSTEM, CONTROL VALVE - ALL MODELS (07) - HYDRAULIC SYSTEM

1

K947765

VALVE

CONTROL VALVE ASSEMBLY, complete

1шт.

2

PLUNGER, by-pass valve (not supplied separately), Includes: Ref. 3 - 13

1шт.

3

K921154

FILTER

by-pass plunger

1шт.

4

K913621

WASHER

RESTRICTOR WASHER

1шт.

5

K947759

PLUG

3/8 UNF, special

1шт.

6

PLUNGER, hold valve (not supplied separately)

1шт.

7

K11548

BALL

STEEL BALL, 1/8 in, hold valve plunger

1шт.

8

K920136

SHIM

RETAINER, ball, hold valve plunger

1шт.

9

K24832

SPRING

by-pass and hold valves

2шт.

10a

K948067

PLUG

5/8 UNF, special

1шт.

Used on model 885, S/N 632189 and after

1шт.

Used on model 885G, S/N 651547 and after

1шт.

Used on model 990, S/N 860534 and after

1шт.

Used on model 995, S/N 929540 and after

1шт.

Used on model 996, S/N 984571 and after

1шт.

Used on model 1210, S/N 725191 and after

1шт.

Used on model 1212, S/N 1002647 and after

1шт.

11

K947977

RETAINER

ball

1шт.

Used on model 885, S/N 632189 and after

1шт.

Used on model 885G, S/N 651547 and after

1шт.

Used on model 990, S/N 860534 and after

1шт.

Used on model 995, S/N 929540 and after

1шт.

Used on model 996, S/N 984571 and after

1шт.

Used on model 1210, S/N 725191 and after

1шт.

Used on model 1212, S/N 1002647 and after

1шт.

12

K11548

BALL

STEEL BALL, 1/8 in dia.

1шт.

Used on model 885, S/N 632189 and after

1шт.

Used on model 885G, S/N 651547 and after

1шт.

Used on model 990, S/N 860534 and after

1шт.

Used on model 995, S/N 929540 and after

1шт.

Used on model 996, S/N 984571 and after

1шт.

Used on model 1210, S/N 725191 and after

1шт.

Used on model 1212, S/N 1002647 and after

1шт.

10b

K942892

PLUG

5/8 UNF, special

1шт.

Used on model 885, up to S/N 632189

1шт.

Used on model 885G, up to S/N 651547

1шт.

Used on model 990, up to S/N 860534

1шт.

Used on model 995, up to S/N 929540

1шт.

Used on model 996, up to S/N 984571

1шт.

Used on model 1210, up to S/N 725191

1шт.

Used on model 1212, up to S/N 1002647

1шт.

13

K623515

SEAL,16.38mm ID x 25.53mm OD x 3.2mm Thk

ING WASHER, 5/8 in

1шт.

14

K961794

VALVE

RELIEF VALVE, (pre-set assembly)

1шт.

K625160

SPRING

relief valve, Includes: Ref. 15 - 27

1шт.

15

K944592

SPOOL

rate of lowering valve, replaces K913221

1шт.

16

K625108

SPRING

rate of lowering valve

1шт.

17

K909397

SPRING

PLUG, 3/8 BSP, special

1шт.

18

K916395

PLUNGER

non-return valve

1шт.

19

K625167

SPRING

non-return valve

1шт.

20

K916397

PLUG

3/4 UNF, special

1шт.

21

K623530

SEAL

ING WASHER, 3/4 in

1шт.

22

PLUNGER, TCU valve (not supplied separately)

1шт.

23

K17063

BALL

STEEL BALL, 1/4 in

1шт.

K626843

WASHER

1/8 in special

1шт.

24

K625190

SPRING

TCU valve

1шт.

25

K909398

CAP

FERRULE, 1/4 BSP

1шт.

26

SPOOL VALVE (not supplied separately)

1шт.

27

PLUNGER, latching valve (not supplied separately)

1шт.

K616412

SCREW

GRUBSCREW, 1/4 UNF special

1шт.

425-154

JAM NUT,Jam, 1/4"-28, G5

LOCKNUT, 1/4 UNF

2шт.

K19470

WASHER

1/4 in

1шт.

K625272

BEARING

SPRING, spool valve, Includes: Ref. 28 & 29

1шт.

28

K625180

SPRING

latching valve

1шт.

29

K913971

PLUG

9/16 UNF, special

1шт.

30

K912464

WASHER

ABUTMENT PLATE

1шт.

31

K24853

PIN

DOWEL, 1/4 x 11/16 in, abutment plate to valve body

1шт.

K606803

SCREW

WEDGLOCK SCREW, 1/4 UNC, abutment plate to valve body

1шт.

32

K912465

SHIM,.003" Thk

Abutment plate to valve body .003" Thk

1шт.

K912466

SHIM,.007" Thk

Abutment plate to valve body .007" Thk

1шт.

K912467

SHIM,.015" Thk

Abutment plate to valve body .015" Thk

1шт.

33

K920132

NEEDLE

VALVE, 3/8" UNC

1шт.

Ref 33 - K944593 Needle valve is 7/16" UNC

1шт.

34

K600211

BOLT

5/16 UNC x 2-1/4 in, valve to ramshaft bracket

1шт.

35

K608143

STUD

5/16 UNC x 1-1/2 in, valve to ramshaft bracket

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC, valve to ramshaft bracket

2шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in, valve to ramshaft bracket

3шт.

36

K24779

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

'O' RING, 7/16 in internal dia., valve to ramshaft bracket

2шт.

K962813

GASKET

SEAL PACK, control valve, K962584

1шт.

K919777

NO LONGER SERVICED

DUMP VALVE ASSEMBLY, optional equipment, Includes: Ref. 37 - 44

1шт.

37

K940576

GUIDE

BODY, dump valve, optional equipment

1шт.

38

K918983

NUT

1 in UNF, special, dump valve, optional equipment

1шт.

39

K918985

BUSHING

BUSH, dump valve, optional equipment

1шт.

40

K962194

SET OF PARTS

PLUNGER, dump valve, optional equipment

1шт.

41

K24871

GROOVED PIN,1/8" x 1/2", Type D

Pin, Grooved, , Mills, dump valve, optional equipment 1/8" x 1/2", Type D

1шт.

42

K919666

KNOB

dump valve, optional equipment

1шт.

43

K623724

PIN

MILLS PIN, 1/8 x 5/8 in, dump valve, optional equipment

1шт.

44

K964568

SEAL

SEAL PACK, dump valve, replaces K962584, optional equipment

1шт.
