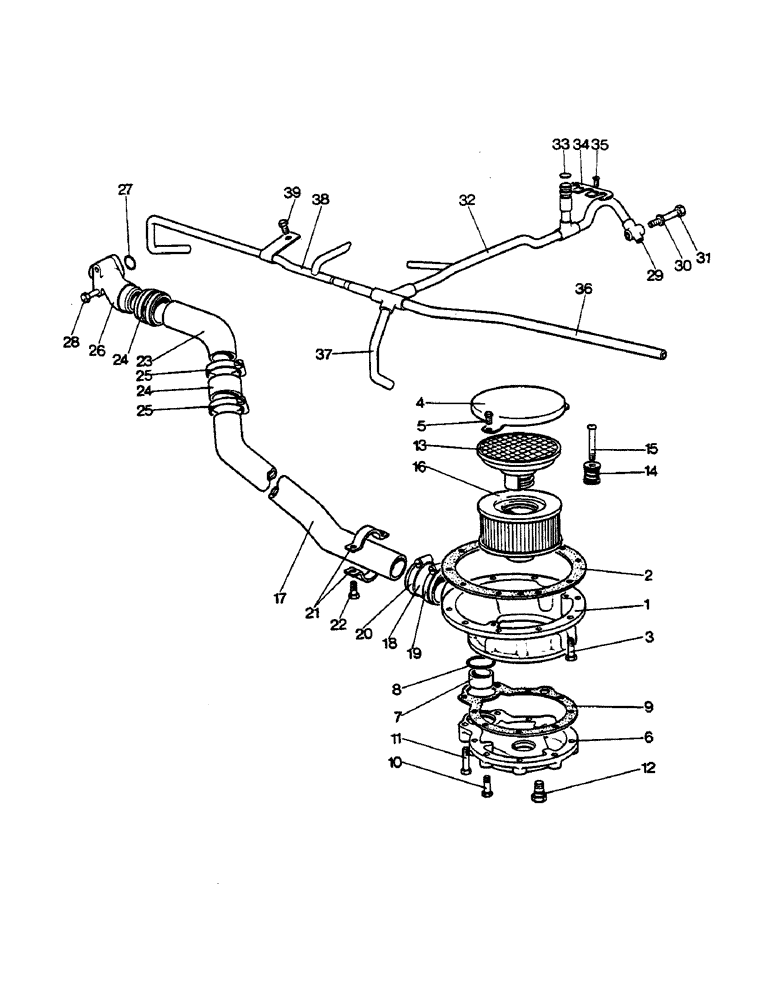

Запчасти Case IH 1210 (E04) - SELECTAMATIC HYDRAULIC SYSTEM, OIL FILTER AND LOW-PRESSURE PIPES, 1210 TRACTORS, UP TO S/N 730828 (07) - HYDRAULIC SYSTEM

1

K924377

HOUSING

oil filter

1шт.

2

K924267

GASKET

housing to main frame

1шт.

3

K602806

BOLT

SCREW, 5/16 UNC x 1-1/8 in., housing to main frame

10шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in., housing to main frame

10шт.

4

K921886

COVER

filter housing

1шт.

5

K613984

SCREW

No. 10 UNF x 1/2 in

3шт.

K19488

SPRING WASHER

SPRING WASHER, 3/16 in

3шт.

6

K921880

COVER

gearbox sump

1шт.

7

K921882

SEAL

INSERT, sump cover

1шт.

8

K15533

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

'O' RING, 1-3/4 in internal dia., sump cover to filter housing

1шт.

9

K921881

GASKET

sump cover to filter housing

1шт.

10

K600205

BOLT

5/16 UNC x 1-1/2 in., sump cover to filter housing

6шт.

11

K600209

BOLT

5/16 UNC x 2 in., sump cover to filter housing

3шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in., sump cover to filter housing

9шт.

12

K623842

PLUG

DRAIN PLUG, 5/8 UNC

1шт.

K14573

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

'O' RING, 5/16 in internal dia., drain plug

1шт.

K626795

WASHER

SEALING WASHER, 5/8 in

1шт.

K920806

FILTER, ELEMENT

FILTER ASSEMBLY, Includes: Ref. 13 - 16

1шт.

13

K920521

VALVE

AND SCREEN, Includes: Ref. 14 & 15 and nyloc nut

1шт.

14

K942788

PLUG

MAGNET

1шт.

15

K624300

SCREW

2 BA x 1-1/2 in

1шт.

K623002

LOCK NUT

NYLOC NUT, 2 BA

1шт.

16

K920522

FILTER, ELEMENT

PAPER ELEMENT

1шт.

17

K945282

PIPE

INLET PIPE (replaces K944368)

1шт.

18

K924378

HOSE

CONNECTION, pipe to filter housing

1шт.

19

K11806

HOSE

CLIP, 2-1/2 in., pipe to filter housing

1шт.

20

K621960

HOSE

CLIP, 2-1/4 in., pipe to filter housing

1шт.

21

K916897

SHIM

BRACKET, pipe to main frame

4шт.

22

K602803

BOLT

SETSCREW, 5/16 UNC x 3/4 in., pipe to main frame

2шт.

K19471

WASHER

5/16, pipe to main frame

4шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in., pipe to main frame

4шт.

K608128

STUD

5/16 UNC x 3/8 in

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC

2шт.

23

K919088

PIPE

CONNECTING PIPE

1шт.

24

K917126

HOSE

CONNECTION

1шт.

25

K621960

HOSE

CLIP, 2-1/4 in

3шт.

26

K950129

FITTING

ELBOW, pump inlet (replaces K919063)

1шт.

27

K623561

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

'O' RING, 1 in internal dia., elbow to pump

1шт.

28

K600211

BOLT

5/16 UNC x 2-1/4 in., Serial Range: elbow-pump

2шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in., Serial Range: elbow-pump

2шт.

29

K915339

TUBE

PIPE, control, Serial Range: valve-tee-piece

1шт.

30

K912269

BUSHING

SCREWED BUSH, 1/2 - 5/16 UNC

1шт.

K626577

WASHER

SEALING WASHER, 1/2 in

1шт.

86632558

JAM NUT,Jam, 1/2"-13, G5

LOCKNUT, 1/2 UNC

1шт.

31

K602816

SCREW

SETSCREW, 5/16 UNC x 2-3/8 in

1шт.

K607081

LOCK NUT

LOCKNUT, 5/16 UNC

1шт.

32

K916891

PIPE

distribution, Serial Range: block-cross-piece

1шт.

33

K623557

O-RING

'O' RING, 9/16 in internal dia.

1шт.

34

K915344

WASHER

LOCATING PLATE

1шт.

35

K603662

SCREW

1/4 UNC x 5/8 in

2шт.

36

K919662

PIPE

PTO lubrication

1шт.

37

K913785

PIPE,0.5" OD

ram cylinder lubrication

1шт.

38a

K951641

PIPE

gearbox lubrication, replaces K940995 (12-speed)

1шт.

38b

K943055

PIPE

gearbox lubrication (6-speed)

1шт.

39

K602701

BOLT

SETSCREW, 1/4 UNC x 1/2 in

1шт.

K19480

SPRING WASHER

SPRING WASHER, 1/4 in

1шт.
