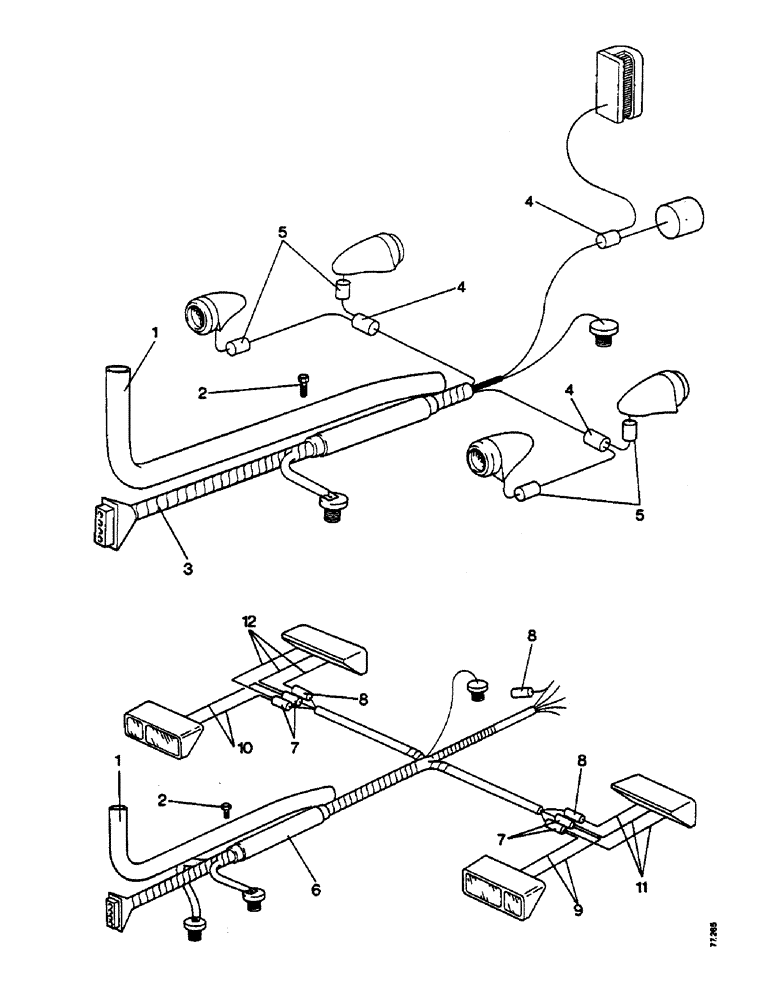

Запчасти Case IH 1210 (M44) - ELECT. EQUIP., ELECT. WIRING, SIDE & REAR LAMPS, 1210, 1212 TRACTORS, S/N A AND AFTER (06) - ELECTRICAL SYSTEMS

1

K947708

CONDUIT

rear harness

1шт.

K625002

FASTENER

CLIP, harness to gearbox cover

3шт.

2

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW set, 1/4 UNC x 1/2 in, conduit to gearbox cover.

3шт.

K626341

SPRING WASHER

WASHER spring, 1/4 in, conduit to gearbox cover.

3шт.

3a

K947880

HARNESS

rear, with 4-way connector (1210 shell/fan fenders)

1шт.

3b

K947890

HARNESS

rear, with 4-way connector (1212 shell/fan fenders)

1шт.

K625005

CLIP

Kwik, 1/4 in dia., harness to axle case (shell/fan fenders)

3шт.

K625006

CLIP

Kwik, 1/4 in deg., harness to seat (shell/fan fenders)

4шт.

K627727

GROMMET

5/8 in deg. (shell/fan fenders)

1шт.

K627709

GROMMET

5/8 in deg. (shell/fan fenders)

2шт.

4

K86230

CONNECTOR, ELEC

CONNECTOR double (shell/fan fenders)

2шт.

5

K67916

ELEC CONNECTOR

CONNECTOR single (shell/fan fenders)

3шт.

K921240

ELECTRICAL WIRE

LEAD, side and rear lamps (shell/fan fenders)

4шт.

6a

K947739

HARNESS

wiring, rear, with 7-way connector (1210 full fenders)

1шт.

6b

K947740

HARNESS

wiring, rear, with 7-way connector (1212 full fenders)

1шт.

K627726

GROMMET

1 in deg. (full fenders)

1шт.

K627725

GROMMET

1-1/4 in deg. (full fenders)

2шт.

K625006

CLIP

Kwik, 1/4 in dia., harness to axle case and seat (full fenders)

4шт.

K621633

CABLE

CLIP, stoplamp lead to frame platform (full fenders)

3шт.

7

K86230

CONNECTOR, ELEC

CONNECTOR double (full fenders)

2шт.

8

K67916

ELEC CONNECTOR

CONNECTOR single(full fenders)

1шт.

K945631

ELECTRICAL WIRE

LEAD, connector to tail lamp (full fenders)

1шт.

9

K945589

HARNESS

left-hand side/flasher lamp (full fenders)

1шт.

10

K945591

HARNESS

right-hand side/flasher lamp (full fenders)

1шт.

K625000

CLIP

3/8 in deg., harness to fenders (full fenders)

14шт.

86625206

SCREW,Phillips Drive, Pan HD, #10 - 32 x 1/2"

No. 10 UNF x 1/2 in, harness to fender. (full fenders)

2шт.

K626310

WASHER

3/16 in, harness to fender. (full fenders)

2шт.

K626340

RING

WASHER spring, 3/16 in, harness to fender. (full fenders)

2шт.

K617080

NUT

No. 10 UNF, harness to fender. (full fenders)

2шт.

K626341

SPRING WASHER

WASHER spring, 1/4 in, harness to fender. (full fenders)

12шт.

K607043

NUT

1/4 UNC, harness to fender. (full fenders)

12шт.

K86230

CONNECTOR, ELEC

CONNECTOR double (full fenders)

2шт.

K67916

ELEC CONNECTOR

CONNECTOR single, harness to fender. (full fenders)

1шт.

11

K945590

HARNESS

left-hand stop/tail/flasher lamp (full fenders)

1шт.

12

K945592

HARNESS

right-hand stop/tail/flasher lamp

1шт.

K921078

COIL

LEAD, rear number plate lamp

1шт.

K621644

CLIP

, Serial Range: lead-seat

1шт.
