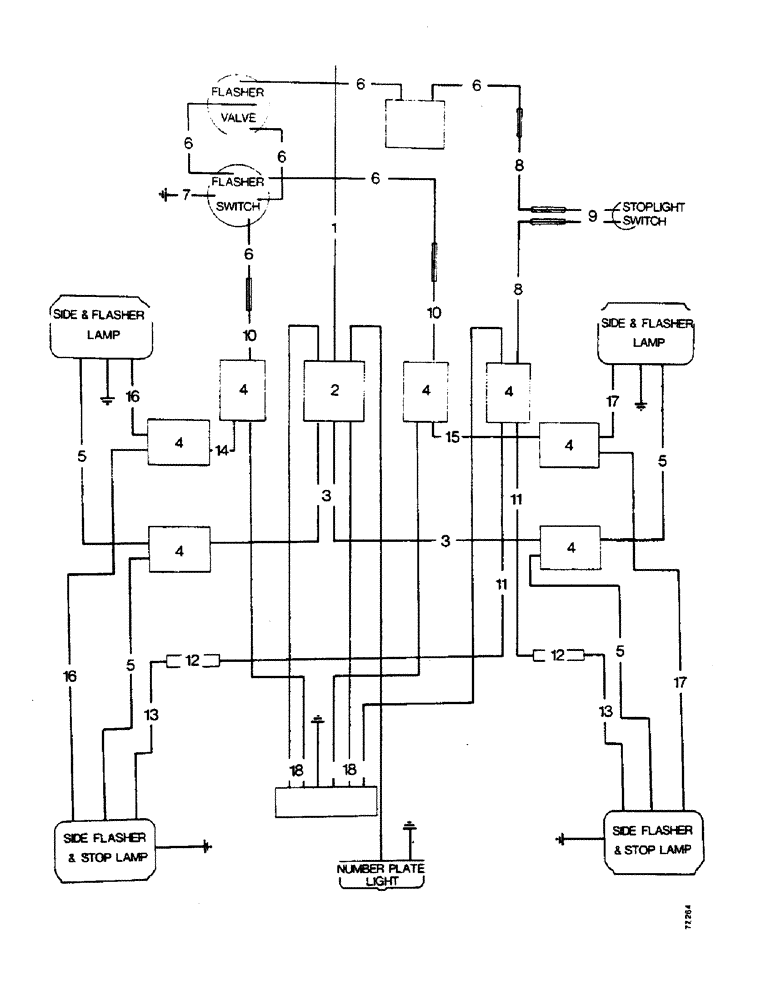

Запчасти Case IH 1210 (M42) - ELECT. EQUIP., ELECT. WIRING, SIDE & REAR LAMPS, 1210, 1212, W/O LIGHT DUTY FULL FENDER, A AND AFTER (06) - ELECTRICAL SYSTEMS

1

K940375

WIRE

LEAD, lighting, Serial Range: switch-connector

1шт.

2

K908905

CONNECTOR, ELEC

CONNECTOR three-way

1шт.

3a

K925283

NO LONGER SERVICED

LEAD, side/rear lamps, Serial Range: connector-connector

2шт.

4

K86230

CONNECTOR, ELEC

CONNECTOR double

7шт.

5a

K940639

ELECTRICAL WIRE

LEAD, side and rear lamps

4шт.

6

K929555

HARNESS

direction indicators

1шт.

7

K923592

ELECTRICAL WIRE

LEAD, indicator, Serial Range: switch-earth

1шт.

8

K940384

NO LONGER SERVICED

LEAD, (stop lamps), Serial Range: connectors-connectors

1шт.

9

K929739

ELECTRICAL WIRE

LEAD, stop lamp switch

1шт.

K621633

CABLE

CLIP, leads to frame platform

1шт.

10

K940383

NO LONGER SERVICED

LEAD, (indicators), connector to, Serial Range: connector-connectors

1шт.

11

K925284

ELECTRICAL WIRE

LEAD, stop lamps, connector to, Serial Range: connector-connectors

2шт.

12

K67916

ELEC CONNECTOR

CONNECTOR single

2шт.

13

K940645

ELECTRICAL WIRE

LEAD, stop lamps

2шт.

14

K925286

ELECTRICAL WIRE

LEAD, indicators, left-hand

1шт.

15

K926215

CABLE

LEAD, indicators, right-hand

1шт.

16

K940640

ELECTRICAL WIRE

LEAD, left-hand indicator lamps

2шт.

17

K940641

NO LONGER SERVICED

LEAD, right-hand indicator lamps

2шт.

K920926

CABLE

TUBE cable, right-hand

1шт.

K920927

CABLE

TUBE cable, left-hand

1шт.

K19930

GROMMET,3/8" ID x 5/8" Groove Dia

5/8 in, fenders.

4шт.

K627708

GROMMET

1-1/4 in, fenders.

2шт.

K627704

GROMMET

1 in, fenders.

4шт.

K621698

CLIP

leads to fender supports.

2шт.

K602983

SCREW

set, 3/8 UNC x 7/8 in, leads to fender supports.

2шт.

K19482

SPRING WASHER

WASHER spring, 3/8 in, leads to fender supports.

2шт.

280136

NUT,3/8"-16, G8

Leads to fenders supports. 3/8"-16, G8

2шт.

K627715

GROMMET

13/16 in

2шт.

18

K925489

HARNESS, 7-point socket

1шт.

K921078

COIL

LEAD, number-plate lamp

1шт.

K621644

CLIP

, Serial Range: lead-seat

1шт.

3b

K921240

ELECTRICAL WIRE

LEAD, side/rear lamps, connector to connector (tractors with shell)

2шт.

4

K86230

CONNECTOR, ELEC

CONNECTOR double (fenders)

2шт.

5b

K921240

ELECTRICAL WIRE

LEAD, side and rear lamps (fenders)

4шт.

K919375

CABLE

TUBE cable, right-hand (fenders)

1шт.

K917231

CABLE

TUBE cable, left-hand (fenders)

1шт.

K621652

PIPE

CLIP, tubes to fenders. (fenders)

4шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC, tubes to fenders. (fenders)

2шт.

K19481

SPRING WASHER

WASHER spring, 5/16 in, tubes to fenders. (fenders)

2шт.
