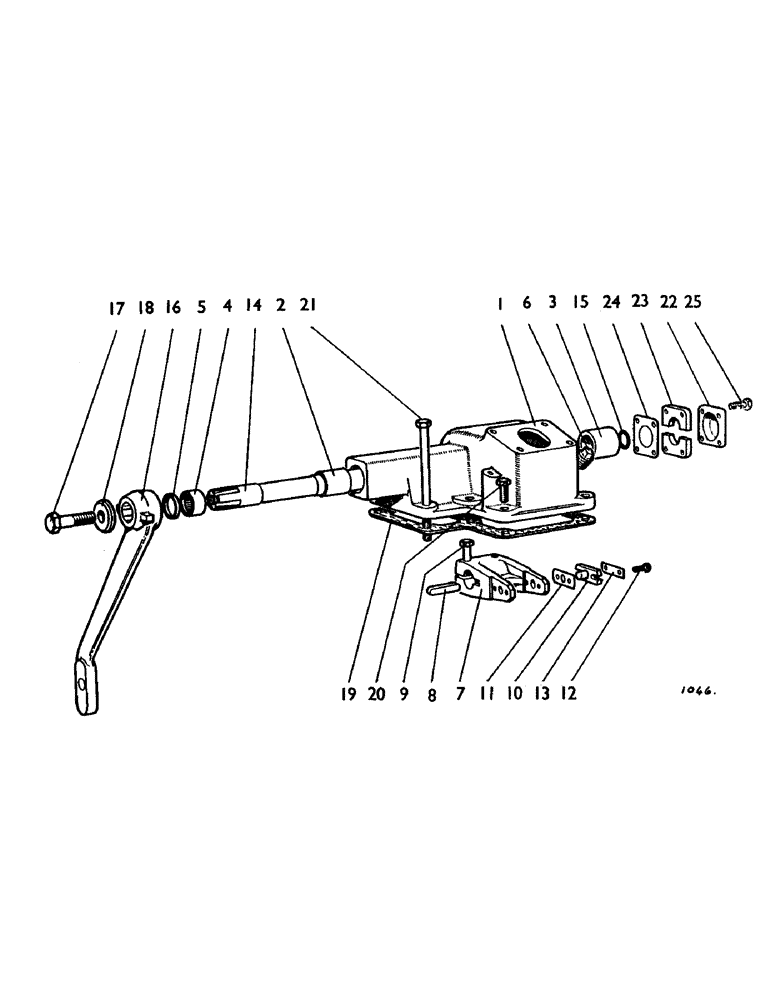

Запчасти Case IH 1210 (H06) - STEERING AND FRONT AXLE, STEERING-BOX AND DROP ARM, 1210 TRACTORS Steering & Front Axle

1

K963553

BOX

STEERING-BOX, with bushes, Includes: Ref. 2 - 5

1шт.

2

K621365

BUSHING

BUSH

1шт.

3

K917090

BUSHING

BUSH

1шт.

4

K690321

NEEDLE BEARING

BEARING

1шт.

5

K623418

OIL SEAL

OIL SEAL

1шт.

6

K14659

PLUG

TAPER PLUG, 1/2 BSP

1шт.

7

K915950

ROCKER LEVER

ROCKER ARM

1шт.

8

K622323

KEY

3/8 square inch x 3-3/8 in

1шт.

9

K600610

BOLT

7/16 UNC x 2-1/2 in

2шт.

K19483

SPRING WASHER

SPRING WASHER, 7/16 in

2шт.

10

K912108

BALL

PEG

2шт.

11a

K900945

GASKET

SHIM, 0.003 in

1шт.

11b

K900946

SHIM,.005" Thk

1шт.

11c

K900947

GASKET

SHIM, 0.007 in

1шт.

11d

K900948

SHIM,.010" Thk

1шт.

12

K602702

SCREW

SETSCREW, 1/4 UNC x 5/8 in

4шт.

13

K912109

WASHER

TABWASHER

2шт.

14

K915953

SHAFT

drop arm

1шт.

15

K15596

RING,3.63mm Thk x 31.34mm ID

'O' RING, 1-1/4 in internal dia.

1шт.

16

K923468

ARM

DROP ARM

1шт.

17

K601240

BOLT

5/8 UNC x 3-1/4 in, replaces K601213, drop, Serial Range: arm-shaft

1шт.

K19485

WASHER

SPRING WASHER, 5/8 in, drop, Serial Range: arm-shaft

1шт.

18

K15595

WASHER

5/8 in, special, drop, Serial Range: arm-shaft

1шт.

19

K915949

GASKET

steering-box to gearbox cover

1шт.

20

K600806

BOLT

1/2 UNC x 2 in, steering-box to gearbox cover

8шт.

K19484

LOCK WASHER

SPRING WASHER, 1/2 in, steering-box to gearbox cover

10шт.

21

K600835

BOLT

1/2 UNC x 9 in, steering-box to gearbox cover

2шт.

22

K915960

COVER

END COVER

1шт.

23

K915959

PLATE

THRUST PLATE

2шт.

24a

K915955

SHIM

0.003 in

1шт.

24b

K915956

SHIM

0.005 in

1шт.

24c

K915957

SHIM

0.010 in

1шт.

24d

K915958

SHIM

0.030 in

1шт.

25

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

SETSCREW, 5/16 UNC x 1 in, cover to steering-box

4шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in, Serial Range: cover-steering-box

4шт.
