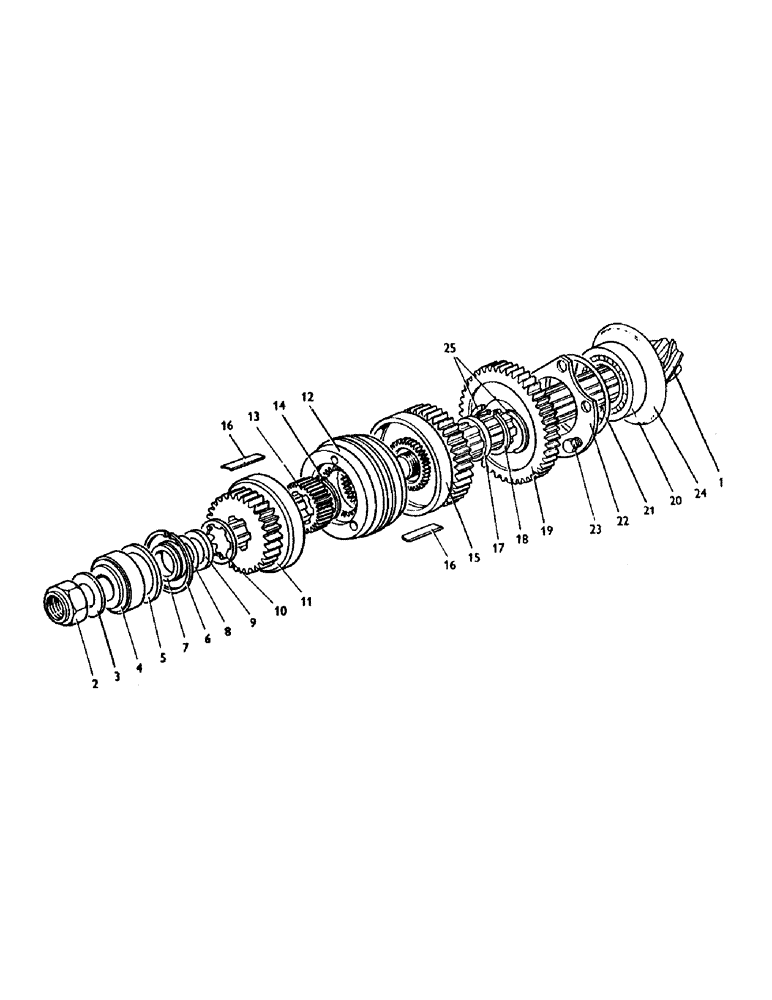

Запчасти Case IH 1210 (C18) - GEARBOX, BEVEL PINION SHAFT, 1210 TRACTORS Gearbox
№
Артикул
Название
Примечание
Количество
1a
K964873
GEAR-SET
BEVEL PINION AND SPIRAL GEAR, (7/43 teeth)
1шт.
Used on model 1210, S/N 729430 and after
1шт.
1b
K964871
WHEEL
BEVEL PINION AND SPIRAL GEAR KIT, replaces K963564
1шт.
Used on model 1210, S/N 729430 and after
1шт.
2
K622803
NUT
NYLOC NUT, 1-1/8 BSF, left-hand
1шт.
3
K14687
WASHER
1-1/8 in.
1шт.
4
K620061
BEARING, ROLLER
ROLLER BEARING
1шт.
5
K627253
BUSHING
SPACER
1шт.
6
K17023
CIRCLIP
3 in. internal dia.
1шт.
7
K917844
BUSHING
DISTANCE PIECE
1шт.
8a
K917845
SHIM,35.32mm ID x 50.8mm OD x 0.05mm Thk
0.002 in.
1шт.
8b
K917846
SHIM
0.005 in.
1шт.
8c
K917847
SHIM
0.010 in.
1шт.
8d
K917848
SHIM
0.030 in.
1шт.
9
K940969
BUSHING
DISTANCE PIECE
1шт.
10
K940975
DISC
WASHER, special
1шт.
11
K942816
GEAR
high (28 teeth)
1шт.
12
K928223
GEAR
SLIDING GEAR AND CONES
1шт.
K926266
SPRING
sliding gear
6шт.
13
K943435
GEAR
dog clutch
2шт.
14
K621865
RING, SNAP
CIRCLIP, 50mm external
1шт.
15
K942817
GEAR
medium (35 teeth)
1шт.
16
K940989
PLATE
BEARING PAD
12шт.
17a
K948670
WASHER
SPECIAL, use with K964873 (part kit K964871)
1шт.
Used on model 1210, S/N 729430 and after
1шт.
25
K945962
PACKING RING
SPLIT RING, half, use with K964873 (part kit K964871)
2шт.
Used on model 1210, S/N 729430 and after
1шт.
17b
K940975
DISC
WASHER, special, use with K963564
1шт.
Used on model 1210, S/N 729430 and after
1шт.
18
K621865
RING, SNAP
CIRCLIP, 50mm external, use with K963564
1шт.
Used on model 1210, S/N 729430 and after
1шт.
19
K942461
GEAR
low (41 teeth)
1шт.
20
K620062
BEARING, ROLLER
TAPERED ROLLER BEARING
1шт.
21a
K910457
SHIM,.002" Thk
1шт.
21b
K910456
SHIM,.005" Thk
1шт.
21c
K910455
SHIM
0.015 in
1шт.
21d
K910454
SHIM,.030" Thk
1шт.
22
K940982
COVER
BEARING, rear bearing
1шт.
23
K602954
SCREW
SETSCREW, 7/16 UNC x 1 in.
5шт.
24
K945133
TROUGH
CIRCULAR TROUGH
1шт.
Ref #24 - Use shims K910454, 5, 6, & 7
1шт.
