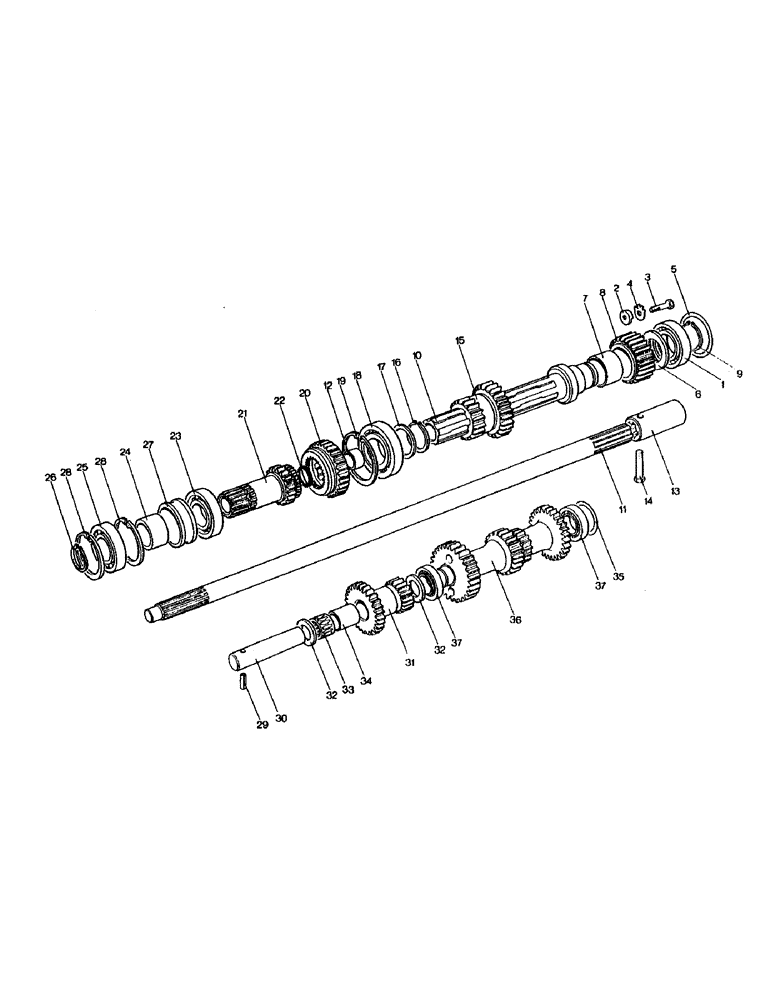

Запчасти Case IH 1210 (C14) - GEARBOX, DRIVESHAFT AND LAYSHAFTS, 1210 TRACTORS Gearbox
№
Артикул
Название
Примечание
Количество
1
K19047
BALL BEARING
1шт.
2
K910447
WASHER
RETAINING WASHER
1шт.
3
K600144
BOLT
1/4 UNC x 1-3/8 in.
1шт.
4
K33127
WASHER
TABWASHER
1шт.
5a
K908372
SHIM,.003" Thk
1шт.
5b
K908373
SHIM,.005" Thk
1шт.
5c
K908374
SHIM,.020" Thk
1шт.
6
K908940
WASHER
THRUST WASHER
1шт.
7
K621376
BUSHING
BUSH
1шт.
8
K963566
GEAR
REVERSE GEAR, (22 teeth), with bush
1шт.
9
K12922
RING, SNAP
CIRCLIP, 1-3/4 in. external
1шт.
10
K940993
COLLAR
DRIVESHAFT, 12-speed Livedrive
1шт.
11
K915583
PTO
LIVE PTO CARDAN SHAFT
1шт.
12
K24774
BUSHING
BUSH, driveshaft
1шт.
13
K89181
COUPLING, BREAK AWAY
COUPLING SLEEVE
1шт.
14
K600009
BOLT
1/4 UNC x 1-7/8 in., coupling to cardan shaft
1шт.
K607440
NUT
CLEVELOC NUT, 1/4 UNC, coupling to cardan shaft
1шт.
15
K942452
GEAR
RANGE PINION, (18/26 teeth)
1шт.
16
K621865
RING, SNAP
CIRCLIP, 50mm external
1шт.
17
K942829
BUSHING
SPACER
1шт.
18
K12311
BEARING, ROLLER, CYL
ROLLER BEARING
1шт.
19
K12236
RING, SNAP
CIRCLIP, 4 in. internal
1шт.
20
K942464
GEAR
DRIVEN GEAR, (28 teeth)
1шт.
21
K942462
GEAR
DRIVING GEAR, (18 teeth)
1шт.
22
K623634
SEAL
ING RING, 1-1/8 in. internal dia.
1шт.
23
K12275
BEARING, ROLLER, CYL
ROLLER BEARING
1шт.
24
K627238
BUSHING
SPACER, driving gear
1шт.
25
K19047
BALL BEARING
1шт.
26
K12922
RING, SNAP
CIRCLIP, 1-3/4 in. external
1шт.
27
K627302
BUSHING
SPACER, end plate
1шт.
28
K11481
RING, SNAP
CIRCLIP, 85mm internal
2шт.
29
K623895
PIN
SPRING PIN, 5/16 x 2 in.
1шт.
30
K917918
SHAFT
SPINDLE, layshaft
1шт.
K606261
SCREW
PLUG, 7/16 UNC
1шт.
31
K942463
SHAFT
LAYSHAFT, with integral gears
1шт.
32
K626714
WASHER
THRUST WASHER
2шт.
33
K620273
BEARING, NEEDLE,28.57mm ID x 38.1mm OD x 25.02mm W
NEEDLE ROLLER BEARING
2шт.
34
K924495
BUSHING
DISTANCE PIECE
1шт.
35a
K914702
SHIM,50.8mm ID x 67.06mm OD x 0.05mm Thk
1шт.
35b
K914703
SHIM,.003" Thk
1шт.
35c
K914704
SHIM,50.8mm ID x 67.06mm OD x 0.18mm Thk
1шт.
35d
K914705
SHIM,50.8mm ID x 67.06mm OD x 0.25mm Thk
1шт.
36
K942460
SHAFT
LAYSHAFT, with integral gears
1шт.
37
K620076
BEARING, ROLLER
ROLLER BEARING
2шт.
Выбрано товаров: 44
