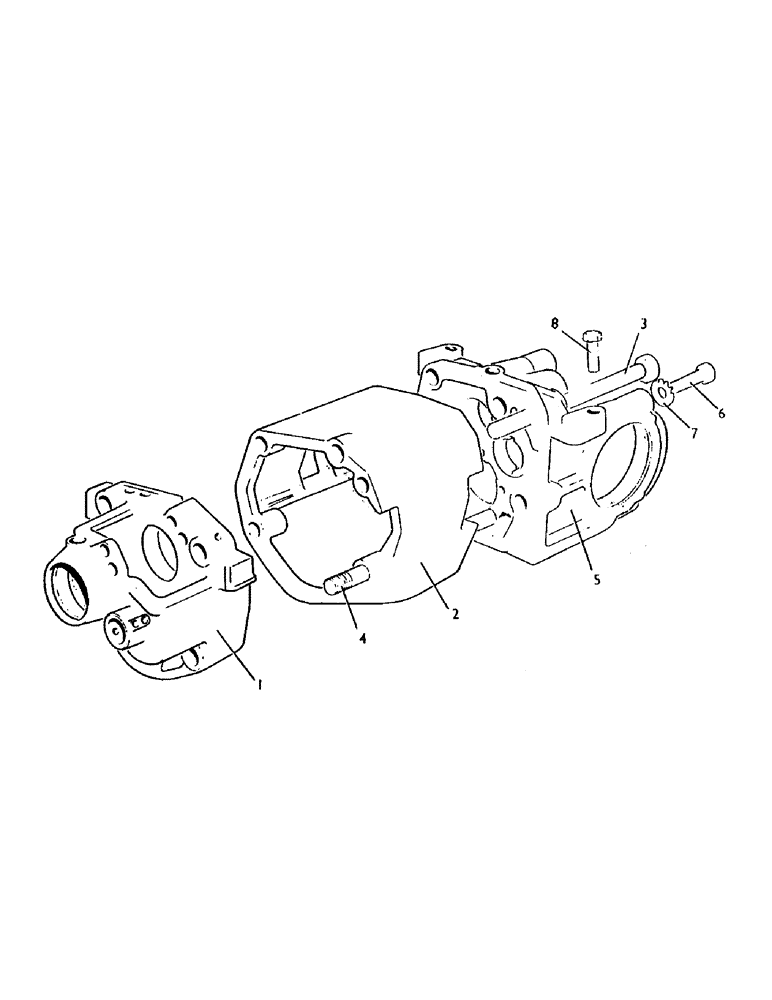

Запчасти Case IH 1210 (C12) - GEARBOX, GEARBOX, 1210 TRACTORS Gearbox

K941115

GEARBOX

complete (12-speed synchromesh) (Livedrive)

1шт.

1

K917726

PLATE

END PLATE, front, gearbox case

1шт.

2

K940964

SPACER

gearbox case

1шт.

3

K940990

STUD

end plates, upper, gearbox case

2шт.

4

K940991

STUD

end plates, lower, gearbox case

2шт.

K607331

NUT

NYLOC NUT, 5/8 UNC, gearbox case

4шт.

5

K963565

END PLATE

rear (complete with bearing caps), gearbox case

1шт.

6

K601242

BOLT

5/8 UNC x 3-3/4 in., caps to end plate, gearbox case

4шт.

7

K626389

BEARING WASHER

TABWASHER, caps to end plate, gearbox case

4шт.

8

K601306

BOLT

5/8 UNC, special, gearbox to main frame, case

2шт.

K920656

BUSHING

BUSH, gearbox to main frame, case

2шт.

K626239

SHIM,.010" Thk

Gearbox case .010" Thk

1шт.
