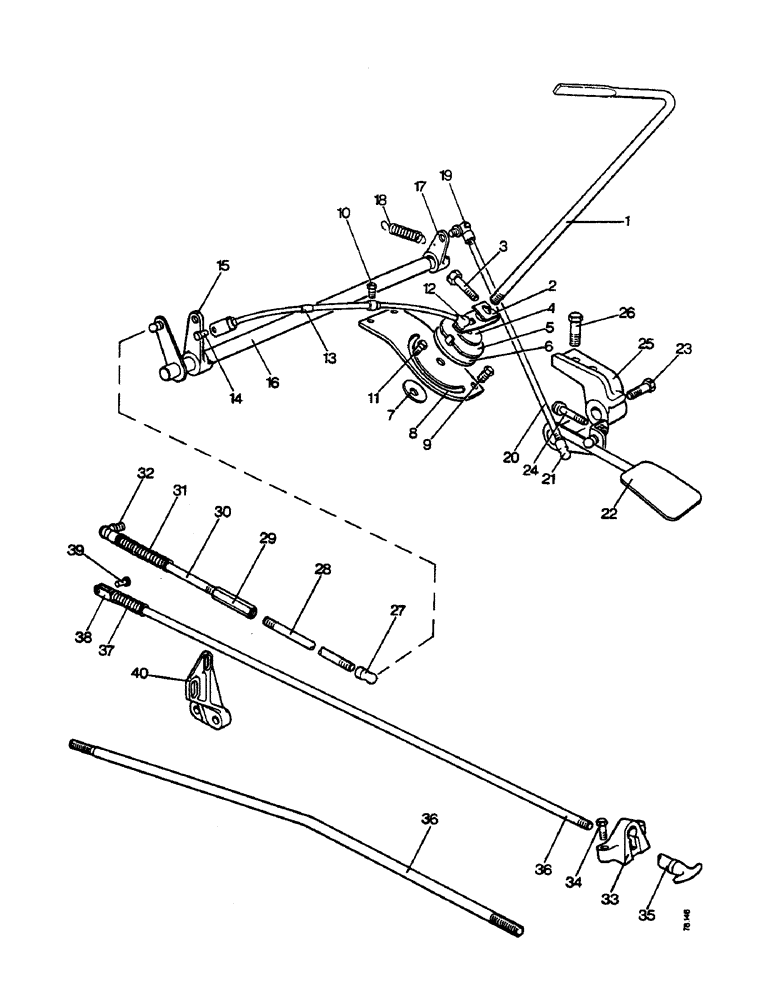

Запчасти Case IH 1210 (F08) - ENGINE CONTROLS AND INSTRUMENTS, THROTTLE AND STOP CONTROLS, 1210 TRACTORS Engine Controls & Instruments
№
Артикул
Название
Примечание
Количество
1
K919002
LEVER
HAND LEVER
1шт.
K919618
SUPPORT
BLOCK, hand lever
1шт.
2
K919003
LEVER
1шт.
3
K600144
BOLT
1/4 UNC x 1-3/8 in, lever to hand lever
1шт.
K19480
SPRING WASHER
SPRING WASHER, 1/4 in, lever to hand lever
1шт.
K607000
NUT
1/4 UNC, lever to hand lever
1шт.
4
K19472
WASHER
3/8 in
1шт.
5
K919004
DRIVE
PLATE
1шт.
6
K917612
DISC
FRICTION DISC
1шт.
7
K626741
WASHER
BELLEVILLE WASHER, 3/8 in
1шт.
232-1416
LOCK NUT,3/8"-16, GC
NYLOC NUT, 3/8 in
1шт.
8
K919001
SUPPORT
BRACKET
1шт.
9
K602703
SCREW
SETSCREW, 1/4 UNC x 3/4 in, bracket to steering box
1шт.
K19480
SPRING WASHER
SPRING WASHER, 1/4 in, bracket to steering box
1шт.
10
K613984
SCREW
SETSCREW, No. 10 UNF x 1/2 in, bracket to steering box
2шт.
K19488
SPRING WASHER
SPRING WASHER, 3/16 in, bracket to steering box
2шт.
11
88542
BOLT,Hex, 1/4"-20 x 1/2", Gr 5
SETSCREW, 1/4 UNC x 1/2 in, hand lever stops
2шт.
K19470
WASHER
1/4 in, hand lever stops
4шт.
K626341
SPRING WASHER
SPRING WASHER, 1/4 in, hand lever stops
2шт.
K607043
NUT
1/4 UNC, hand lever stops
2шт.
12
K621900
UNIVERSAL JOINT
BALL JOINT, 1/4 BSF
1шт.
K19480
SPRING WASHER
SPRING WASHER, 1/4 in
1шт.
K19401
NUT
1/4 BSF
1шт.
K617080
NUT
No. 10 UNF
1шт.
13
K923283
CABLE
inner and outer
1шт.
14
K920004
PIN
CLEVIS PIN
1шт.
K11934
PIN
SPLIT PIN, 1/16 x 1/2 in
1шт.
15
K929561
LEVER
cross shaft
1шт.
16
K928189
SHAFT
CROSS SHAFT
1шт.
17
K928178
LEVER
cross shaft
1шт.
K623747
SPLIT PIN/SAFETY PIN
MILLS PIN, 5/32 x 3/4 in
2шт.
18
K624938
SPRING
RETURN SPRING
1шт.
19
K621902
END ASSY.
SOCKET END
1шт.
K621906
PIN
BALL END
1шт.
K19480
SPRING WASHER
SPRING WASHER, 1/4 in
1шт.
K19401
NUT
1/4 BSF
1шт.
20
K928188
ROD
pedal to cross shaft
1шт.
K19440
NUT
LOCKNUT, 1/4 BSF
2шт.
21
K621902
END ASSY.
SOCKET END
1шт.
22
K942134
PEDAL
ACCELERATOR PEDAL
1шт.
K19476
WASHER
3/4 in
1шт.
K88751
WASHER
7/8 in
1шт.
K19482
SPRING WASHER
SPRING WASHER, 3/8 in
1шт.
23
K602902
SCREW
SETSCREW, 3/8 UNC x 3/4 in
1шт.
24
K620500
BOLT
1/4 BSF x 1-1/16 in, pedal stop
1шт.
K19440
NUT
LOCKNUT, 1/4 BSF
1шт.
25
K940909
BRACKET
SUPPORT BRACKET, pedal
1шт.
219-8
LUBE NIPPLE,1/4" - 28 NPTF
NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg
1шт.
K19481
SPRING WASHER
SPRING WASHER, 5/16 in, Serial Range: bracket-frame
2шт.
27
K621902
END ASSY.
SOCKET END
1шт.
K19440
NUT
LOCKNUT, 1/4 BSF
3шт.
28a
K929575
ROD
cross shaft to adjusting sleeve (Simms pump)
1шт.
28b
K947231
ROD
cross shaft to adjusting sleeve (Bosch pump)
1шт.
29
K38598
SLEEVE
ADJUSTING SLEEVE, 1/4 BSF
1шт.
K12285
NUT
LOCKNUT, 1/4 BSF, left-hand
1шт.
30
K929574
ROD
sleeve to injection pump
1шт.
31
K625260
SPRING
throttle return
1шт.
K19470
WASHER
1/4 in
2шт.
32
K621902
END ASSY.
SOCKET END
1шт.
K621906
PIN
BALL END
1шт.
K19480
SPRING WASHER
SPRING WASHER, 1/4 in
1шт.
K19401
NUT
1/4 BSF
1шт.
33a
K928168
HOUSING
BRACKET, stop control (Simms pump)
1шт.
33b
K948326
HOUSING
BRACKET, stop control (Bosch pump)
1шт.
34
K602705
SCREW
SETSCREW, 1/4 UNC x 1 in, bracket to steering box
2шт.
K19480
SPRING WASHER
SPRING WASHER, 1/4 in, bracket to steering box
2шт.
35a
K947418
HANDLE
KNOB, stop control (Simms pump)
1шт.
35b
K948342
KNOB
stop control (Bosch pump)
1шт.
K12939
WASHER
3/16 in, special
1шт.
K617080
NUT
No. 10 UNF
2шт.
36a
K928122
ROD
engine stop (Simms pump)
1шт.
36b
K947232
ROD
engine stop (Bosch pump)
1шт.
37
K24780
SPRING
RETURN SPRING, stop control
1шт.
K12939
WASHER
3/16 in, special
2шт.
38
K622203
FORK
END, No. 10 UNF (Sims pump)
1шт.
39
K913180
PIN
CLEVIS PIN, 1/4 x 5/8 in (Sims pump)
1шт.
K11934
PIN
SPLIT PIN, 1/16 x 1/2 in (Sims pump)
1шт.
K621902
END ASSY.
SOCKET END (Bosch pump)
1шт.
K621906
PIN
BALL END (Bosch pump)
1шт.
K19440
NUT
LOCKNUT, 1/4 BSF (Bosch pump)
1шт.
40
K928761
BRACKET
injection pump controls
1шт.
K19481
SPRING WASHER
SPRING WASHER, 5/16 in, bracket to injection pump
2шт.
9635082
NUT,5/16" - 18, Gr 5
5/16 UNC, bracket to injection pump
2шт.
