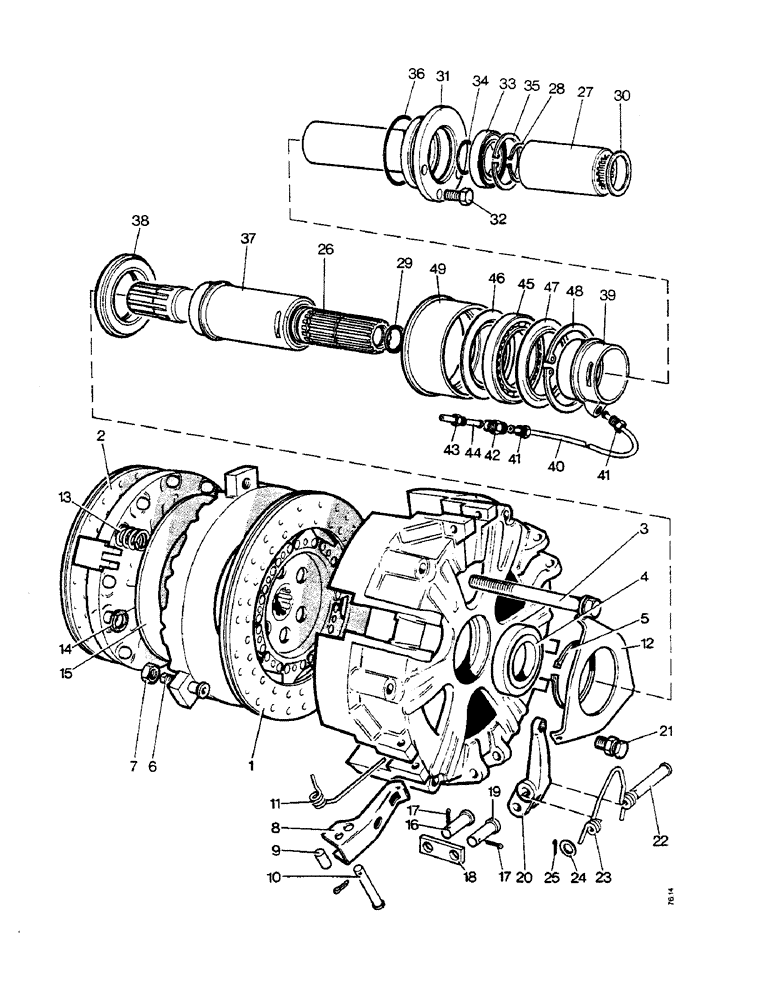

Запчасти Case IH 1210 (B23A) - CLUTCH, DUAL CLUTCH, 1210 TRACTORS, S/N 11154230 AND AFTER (03.1) - CLUTCH

K951600

CLUTCH

ASSEMBLY, Laycock 12 in. (marked red), Includes: Ref. 1 and facings

1шт.

1

K950877

PLATE

DRIVEN PLATE, with 12 in. Thermoid facings, transmission

1шт.

K963632

FACING

S, 12 in. Thermoid (2) and rivets (44)

1шт.

2

K947089

CLUTCH & DISC ASSY

DRIVEN PLATE, with 12 in. F30C facings, PTO (not supplied with K951600)

1шт.

K963633

FACING

S, 12 in. F30C (2) and rivets (18) (not supplied with K951600)

1шт.

3

K600421

BOLT

SETSCREW, 3/8 UNC x 4-1/4 in., clutch to flywheel (not supplied with K951600)

6шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in., clutch to flywheel (not supplied with K951600), Includes: Ref. 4 - 25

6шт.

4

K947051

BEARING

1шт.

5

K947052

CIRCLIP

1шт.

6

K964946

BOLT

ADJUSTING BOLTS, transmission, set of 3

1шт.

7

K947042

NUT

3шт.

8

K964945

LEVER

RELEASE LEVER, transmission, set of 3

1шт.

9

K947046

ROLLER

3шт.

10

K947044

PIN

PIVOT PIN

3шт.

K947036

WASHER

plain

3шт.

K947035

COTTER PIN

SPLIT PIN

3шт.

11

K947049

SPRING

ANTI-RATTLE SPRING

3шт.

12

K947050

RING

RELEASE LEVER PLATE

3шт.

13

K951917

SPRING

THRUST SPRING, pink

12шт.

14

K947039

DISC

FIBRE WASHER

24шт.

15

K952509

BELLEVILLE SPRING

1шт.

16

K947041

PIN

PIVOT PIN, lower

3шт.

17

K947038

PIN

SPLIT PIN

3шт.

18

K964947

DRAG LINK

LINK, lever to PTO pressure plate, set of 3

1шт.

19

K947060

PIN

LINK PIN, upper

3шт.

17

K947038

PIN

SPLIT PIN

3шт.

20

K964948

LEVER

RELEASE LEVER, PTO, set of 3

1шт.

21

K963626

LOCK NUT,M10 x 1.25 x 30mm, Cl 10.9

SCREW AND NUT, 3/8 UNF x 1 in. special, release lever height

3шт.

22

K947058

PIVOT PIN

PTO

3шт.

23

K947037

SPRING

ANTI-RATTLE SPRING

3шт.

24

K947036

WASHER

plain

6шт.

25

K947035

COTTER PIN

SPLIT PIN

3шт.

26

K928941

CLUTCH

DRIVESHAFT

1шт.

27

K945961

COUPLING, BREAK AWAY

MUFF COUPLING, 12 speed

1шт.

28

K12922

RING, SNAP

CIRCLIP, 1-3/4 in. external

2шт.

29

K628123

RING

SEALING RING, 1-1/8 in. internal dia.

1шт.

30

K902106

SHIM,.032" Thk

1шт.

31

K947903

BRACKET

SUPPORT SNOUT, thrust bearing carrier

1шт.

32

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

SETSCREW, 5/16 UNC x 1 in.

3шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in.

3шт.

33

K620190

BALL BEARING

1шт.

34

K628864

O-RING

'O' RING, 1-1/2 in. internal dia.

1шт.

35

K621430

CIRCLIP

75mm internal

1шт.

36

K623545

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

'O' RING, 3 in. internal dia.

1шт.

37

K928937

BEARING CARRIER,54.04mm ID x 76.2mm OD x 107.95mm L

THRUST BEARING CARRIER

1шт.

38

K620153

THRUST BEARING,69.84mm ID x 103.17mm OD x 21.59mm W

1шт.

39

K928939

CARRIER

HOUSING, release bearing

1шт.

40

K928740

TUBE

PLASTIC TUBE, 1/8 x 14-1/2 in., release bearing lubrication

1шт.

41

K617956

NUT

UNION NUT, 3/8 UNF, release bearing lubrication

2шт.

K622407

FERRULE

OLIVE, 1/4 in., release bearing lubrication

2шт.

42

K626045

FITTING

UNION, 3/8 UNF, release bearing lubrication

1шт.

K19588

FERRULE

OLIVE, 3/16 in., release bearing lubrication

1шт.

43

K617956

NUT

TUBING NUT, 3/8 UNF, release bearing lubrication

1шт.

44

K926411

TUBE,0.187" OD x 2.625" L

PIPE, 3/16 x 2-7/8 in., main frame, release bearing lubrication

1шт.

45

K19177

BALL BEARING,76.2mm ID x 114.3mm OD x 19.05mm W

1шт.

46

K928741

RETAINER,76.33mm ID x 111.13mm OD x 0.79mm Thk

SHIELD, front

1шт.

47

K928742

RETAINER

SHIELD, rear

1шт.

48

K12777

RING, SNAP

CIRCLIP, 4-1/2 in. internal dia.

1шт.

49

K928938

SLEEVE,104.78mm ID x 139.7mm OD x 55.56mm L

THRUST PLATE, PTO

1шт.
