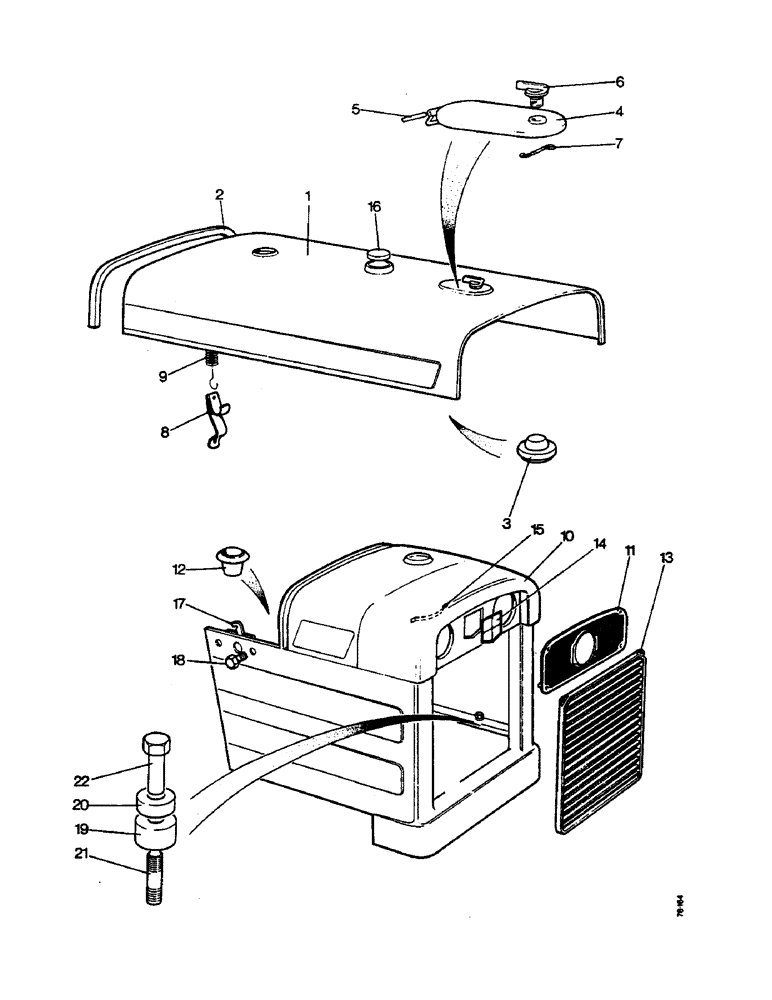

Запчасти Case IH 1210 (L34) - CHASSIS, BONNET, 1210 AND 1212 TRACTORS (12) - CHASSIS

1

K916589

GUARD

BONNET TOP ASSEMBLY, Includes: Ref. 2 - 7 and rivet

1шт.

For breakdown of Bonnet S B 12-79 10/13/95

1шт.

2

K915789

BEAD

ING

1шт.

K624151

RIVET

1/8 x 1/8 in

9шт.

3

K916596

PLUG

RUBBER PLUG

4шт.

4

K962015

COVER

HATCH COVER, Includes: Ref. 5 & 6 and fibre washer, brass washer, and circlip

1шт.

5

K914557

SPRING

PIN, hatch pivot

1шт.

6

K942158

LEVER

hatch fastener

1шт.

K626956

WASHER

FIBRE WASHER, 7/16 in

1шт.

K626899

SHIM

BRASS WASHER, 7/16 in

1шт.

K621588

RING, SNAP

CIRCLIP, 7/16 in external

1шт.

7

K917749

FASTENER

SPRING, hatch fastener

1шт.

K11405

RIVET

1/8 x 3/8 in

2шт.

K19495

WASHER

1/8 in

2шт.

8

K915791

GRIP

FINGER GRIP

2шт.

9

K624911

SPRING

2шт.

10

K962333

HOOD

BONNET FRONT

1шт.

11

K915871

GRILLE

LOUVRE PLATE (outboard headlamps)

1шт.

K917051

PRODUCT GRAPHIC

TRANSFER, louvre plate, replaces K943865 (outboard headlamps)

1шт.

K915733

BUSHING

RETAINING BUSH, louvre plate (outboard headlamps)

1шт.

K627999

PLUG

bonnet side (inboard headlamp)

2шт.

K914804

PLUG

bonnet nose (inboard headlamp)

4шт.

12

K921172

SHIM

GROMMET, bonnet top location

2шт.

13

K947642

GUARD

LOUVRE, bonnet front, 16 3/8 wide x 17 3/8 high

1шт.

K921811

FASTENER

louvre

2шт.

K915764

BRACKET

AND SPRING, louvre fastener

2шт.

14

K951132

DECAL

MOTIF, replaces K947387

1шт.

Used on model 1212, S/N 1004296 and after

1шт.

Used on model 1210, S/N 729817 and after

1шт.

15

K916776

SPRING

RETAINER, Serial Range: motif-bonnet

1шт.

Used on model 1212, up to S/N 1004296

1шт.

Used on model 1210, up to S/N 729817

1шт.

16a

K926389

COVER

INSERT, 2-3/4 in dia., exhaust pipe aperture, replaces K914347

1шт.

16b

K965075

HOLDER

INSERT, 2-1/4 in dia., exhaust pipe aperture

1шт.

K915758

LOCK

bonnet, right-hand

1шт.

17

K915759

LOCK

bonnet, left-hand

1шт.

18

86625206

SCREW,Phillips Drive, Pan HD, #10 - 32 x 1/2"

No. 10 UNF x 1/2 in, locks to bonnet front

4шт.

K626310

WASHER

3/16 in, locks to bonnet front

4шт.

K626340

RING

SPRING WASHER, 3/16 in, locks to bonnet front

4шт.

K617080

NUT

No. 10 UNF, locks to bonnet front

4шт.

19

K915799

RUBBER

PACKING, lower, bonnet front to main frame

4шт.

20

K915800

MISC PACKAGING

PACKING, upper, bonnet front to main frame

4шт.

21

K608128

STUD

5/16 UNC x 1-3/8 in, bonnet front to main frame

4шт.

K626669

WASHER

PACKING WASHER, 5/16 in, bonnet front to main frame

1шт.

K626686

WASHER

1/2 in, bonnet front to main frame

4шт.

22

K915801

CLEVIS PIN

NUT, 5/16 UNC, special, bonnet front to main frame

4шт.
