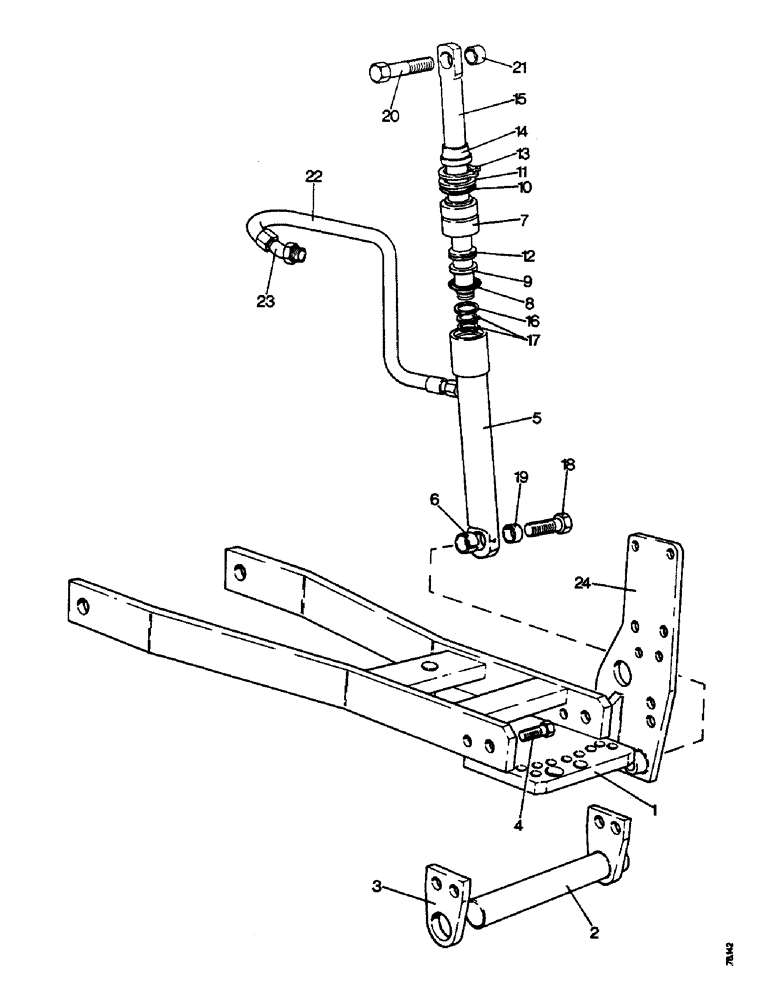

Запчасти Case IH 1210 (E50) - SELECTAMATIC HYDRAULIC SYSTEM, SUPPORT RAMS (07) - HYDRAULIC SYSTEM

K930884

SUPPORT

RAM (U1616) - 990, 995, 996, 1210 and 1212 Tractor Optional Equipment

1шт.

K922311

SUPPORT

RAM (U1190) - 990, 995, 996, 1210 and 1212 Tractor

1шт.

1

K924104

MODIFICATION DRAWING, drawbar support (U1190)

1шт.

2

K924105

SHAFT

CROSS SHAFT (U1190)

1шт.

3

K924107

SUPPORT

PLATE (U1190)

1шт.

4

K601465

BOLT

3/4 UNC x 2-1/4 in, cross shaft to drawbar support (U1190)

4шт.

K19476

WASHER

3/4 in, cross shaft to drawbar support (U1190)

2шт.

K607446

NUT

CLEVELOC NUT, 3/4 UNC, cross shaft to drawbar support (U1190)

4шт.

K924497

CYLINDER

RAM ASSEMBLY (U1190, U1616), Includes: Ref. 5 - 17

1шт.

5

K924634

CYLINDER

(U1190, U1616)

1шт.

6

K690720

BUSHING

TENSION BUSH (U1190, U1616)

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF (U1190, U1616) 1/4"-28 NPT x .54" lg

2шт.

7

K924639

SLEEVE

(U1190, U1616)

1шт.

8

K691287

O-RING,0.21" Thk x 1.725" ID, -327, Cl 6, 90 Duro

'O' RING, 1-3/4 in internal dia. (U1190, U1616)

1шт.

9

K691286

RING

ANTI-EXTRUSION RING (U1190, U1616)

1шт.

10

K24844

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

'O' RING, 2-1/4 in internal dia. (U1190, U1616)

1шт.

11

K623529

RING,56.95mm ID x 1.83mm OD x 3.3mm Thk

ANTI-EXTRUSION RING (U1190, U1616)

1шт.

12

K691285

SEAL

NU-LIP SEAL (U1190, U1616)

1шт.

13

K11735

RING, SNAP

CIRCLIP, 2-1/2 in internal (U1190, U1616)

1шт.

14

K691505

SEAL,44.45mm ID x 12.7mm Thk

SCRAPER SEAL (U1190, U1616)

1шт.

15

K924640

ROD

RAM ROD (U1190, U1616)

1шт.

16

K924643

STOP

RING (U1190, U1616)

1шт.

17

K11129

RING, SNAP

CIRCLIP, 1-1/4 in internal dia. (U1190, U1616)

2шт.

18

K601462

BOLT

3/4 UNC x 3 in, cylinder to cross shaft (U1190, U1616)

1шт.

K19486

WASHER, LOCK

SPRING WASHER, 3/4 in, cylinder to cross shaft (U1190, U1616)

1шт.

K19476

WASHER

3/4 in, cylinder to cross shaft (U1190, U1616)

1шт.

19

K901963

BUSHING

BUSH, cylinder to cross shaft (U1190, U1616)

1шт.

20

K601466

BOLT

3/4 UNC x 4 in, cylinder to lift arm (U1190, U1616)

1шт.

K19476

WASHER

3/4 in, cylinder to lift arm (U1190, U1616)

1шт.

21

K901963

BUSHING

BUSH, cylinder to lift arm (U1190, U1616)

1шт.

K607446

NUT

CLEVELOC NUT, 3/4 UNC (U1190, U1616)

1шт.

22

K924211

HOSE

PIPE, 3/4 UNF x 45 in (U1190, U1616)

1шт.

23

K691539

ELBOW

3/4 UNF (U1190, U1616)

1шт.

K962911

SEAL

SEAL PACK (U1190, U1616)

1шт.

24

K944983

HITCH ASSY

HITCH PLATE, right-hand, support ram (U1616)

1шт.
