Запчасти Case IH 1210 (8-24) - CONTROL MECHANISM (08) - HYDRAULICS

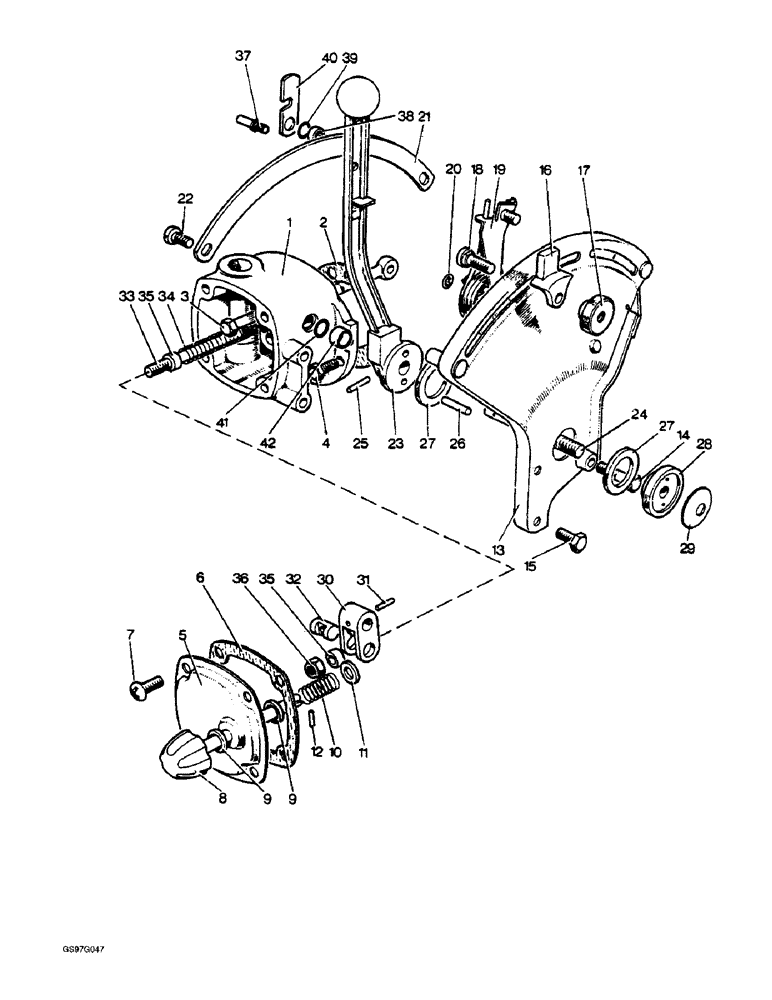

Схема запчастей Case IH 1210 - (8-24) - CONTROL MECHANISM (08) - HYDRAULICS
22
20
1
31
39
9
19
13
36
12
18
14
34
27
37
9
10
15
6
38
32
26
28
35
33
27
42
24
5
30
23
2
3
29
16
41
7
35
40
4
25
21
8
17
11

Артикул

Название

Примечание

Количество

1

K952503

BRACKET

ramshaft, no longer available (Replaces bracket K913756)

1шт.

2

K926386

GASKET

bracket to axle housing

1шт.

3

413-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

hex, bracket to axle housing, 1/2 NC x 6 inch (Replaces bolt K600826)

2шт.

4

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

hex, bracket to axle housing, 1/2 NC x 3-1/4 inch (Replaces bolt K600815)

2шт.

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, (Replaces washer K11518) Ext-Int Tooth, 1/2"

4шт.

5

K910859

COVER

ramshaft bracket

1шт.

6

K909558

GASKET,1.59mm Thk

, Serial Range: cover-bracket

1шт.

7

182-515

SCREW,Sl Pan Hd, 5/16" - 18 x 5/8"

machine, cover to bracket, No. 10 NC x 1/2 inch (Replaces screw K604477)

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , cover to bracket (Replaces washer K19481) 5/16"

4шт.

8

K910721

KNOB

ROD selector (Replaces control lever K919362)

1шт.

9

K24554

O-RING

3/8 inch ID

1шт.

10

K923237

SKID/SHOE

PAD breather, no longer available

1шт.

11

K909542

WASHER

PANEL selector

1шт.

12

K614943

SCREW

No. 10 NF, four used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors; two used with 1210, 1212, 1210G and 1212G tractors

1шт.

13

K947405

KNOB

POINTER control rod

1шт.

14

K623936

PIN, ROLL

1/8 x 3/4 inch

1шт.

15

K913160

SELECTOR

SHAFT

1шт.

16

211-1008

BALL,1/4" Dia

chrome alloy steel, 1/4 inch, grade 24 (Replaces ball K17063)

1шт.

17

K24563

SPRING

ramshaft bracket

1шт.

18

172529

PLUG

expansion, 5/8 inch (Replaces plug K24711)

2шт.

K923284

PLUG

9/16 inch

1шт.

19

K942417

SELECTOR

FORK

1шт.

20

438-11214

LOCK PIN,4.76mm OD x 22.23mm L, Slotted

Pin, (Replaces pin K623740) 3/16" x 7/8", Slotted

1шт.

21

K913119

ROCKER LEVER

SHAFT

1шт.

22

K602750

SCREW

retaining

1шт.

23

K909585

ROD

connecting

1шт.

24

K621562

RING, SNAP

3/8 inch

1шт.

25

K913088

ROCKER LEVER

1шт.

26

K909552

SCREW,3/16"

adjusting

1шт.

231-1444

NUT,1/4"-20, GB

NUT, LOCK, (Replaces nut K607300) 1/4"-20, GB

1шт.

27

K916362

GUIDE

BRACKET

1шт.

28

413-526

BOLT,Hex, 5/16" - 18 x 1-5/8", Gr 5

hex, guide bracket to ramshaft bracket, 5/16 NC x 1-5/8 inch (Replaces bolt K600206)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , guide bracket to ramshaft bracket (Replaces washer K19481) 5/16"

1шт.

29

13-530

BOLT,Hex, 5/16" - 18 x 1-7/8", Gr 5

hex, guide bracket to ramshaft bracket, 5/16 NC x 1-7/8 inch (Replaces bolt K600361)

1шт.

30

K627019

BUSHING

guide bracket to ramshaft bracket

1шт.

K626682

WASHER

flat, guide bracket to ramshaft bracket, 5/16 inch (Replaces washer K19471)

1шт.

31

K915033

LEVER

actuating, guide bracket to ramshaft bracket

1шт.

32

K912971

ROD

push, depth control

1шт.

33

138-38

LOCK PIN,3/32" x 9/16", Slotted

roll, 3/32 x 5/8 inch (Replaces pin K623973)

1шт.

34

K624922

SPRING

push rod

1шт.

35

K913776

SPRING

ANCHOR, no longer available

1шт.

36

K921723

ROD

push, height control

1шт.

37

K625196

SPRING

height control push rod

1шт.

38

K916587

CAM

control mechanism

1шт.

39

K608001

STUD

cam, 1/4 NC x 1-1/16 inch

2шт.

K626662

WASHER

flat, 1/4 inch (Replaces washer K19470)

2шт.

231-1444

NUT,1/4"-20, GB

NUT, LOCK, (Replaces nut K607300) 1/4"-20, GB

2шт.

40

K913758

BUSHING,57.19mm ID x 61.38mm OD x 28.83mm L

ramshaft bracket

1шт.

41

238-5331

O-RING,0.21" Thk x 2.225" ID, -331, Cl 5, 75 Duro

2-1/4 ID x 3/16 inch wide (Replaces O-ring K623579)

1шт.

42

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper (Replaces fitting K13176) 1/4"-28 NPT x .54" lg

1шт.

43

K608143

STUD

5/16 NC x 1-1/2 inch

2шт.

44

K24853

PIN

dowel, 1/4 x 11/16 inch

2шт.

45

K951305

ROD

EXTENSION control rod, no longer available

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

46

K624874

SPRING

CLIP

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

47

K949292

SUPPORT

panel, no longer available

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

48

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

hex, support to cab, 1/4 NC x 5/8 inch, (Replaces setscrew K602733)

2шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Support to cab (Replaces washer K19480) 1/4"

2шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

49

K909542

WASHER

PANEL indicator (Replaces panel K951967)

1шт.

Used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors.

1шт.

Выбрано товаров: 64
