Запчасти Case IH 1210 (8-22) - CONTROL LEVER AND QUADRANT, 1210, 1212, 1210G AND 1212G TRACTORS (08) - HYDRAULICS

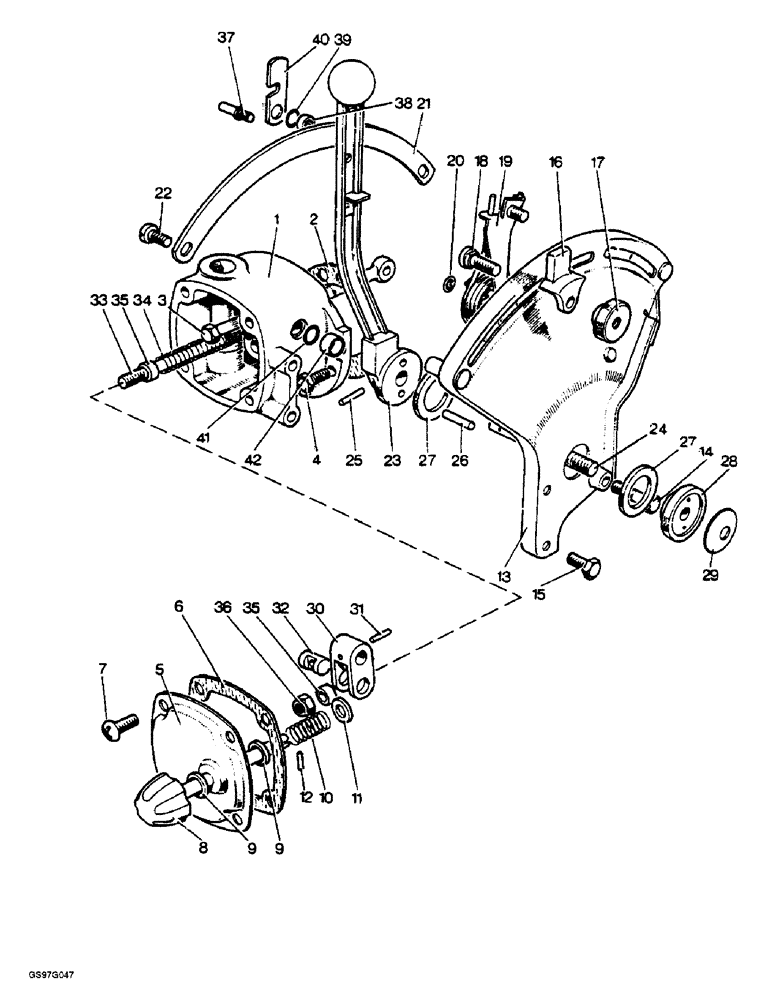

Схема запчастей Case IH 1210 - (8-22) - CONTROL LEVER AND QUADRANT, 1210, 1212, 1210G AND 1212G TRACTORS (08) - HYDRAULICS
9
3
13
28
10
4
35
38
2
14
8
31
16
5
41
1
35
25
6
37
20
24
36
9
27
27
17
30
11
7
12
42
29
15
22
33
19
32
18
23
40
39
21
34
26

Артикул

Название

Примечание

Количество

1

K929786

HOUSING

control lever, no longer available

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper (Replaces fitting K13176) 1/4"-28 NPT x .54" lg

1шт.

2

K903026

GASKET

housing to axle housing

1шт.

3

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

hex, housing to axle housing, 5/16 NC x 3 inch (Replacs bolt K600217)

2шт.

4

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

hex, housing to axle housing, 5/16 NC x 1 inch (Replaces screw K602805)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , housing to axle housing (Replaces washer K19481) 5/16"

3шт.

5

K910860

WASHER

COVER control lever housing

1шт.

6

K909559

GASKET,1.59mm Thk

housing cover

1шт.

7

182-515

SCREW,Sl Pan Hd, 5/16" - 18 x 5/8"

machine, cover to housing, No. 10 x 1/2 inch (Replaces screw K604477)

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , cover to housing (Replaces washer K19481) 5/16"

4шт.

8

K910721

KNOB

connecting rod

1шт.

9

K909573

DISC

friction

2шт.

10

K24887

SPRING

connecting rod

1шт.

11

K19472

WASHER

flat, 3/8 inch

2шт.

12

38-1812

LOCK PIN,1/8" x 3/4", Slotted

Pin, (replaces pin K623930) 1/8" x 3/4", Slotted

1шт.

13

K913263

QUADRANT

control lever, no longer available

1шт.

14

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

hex, quadrant to housing, 5/16 NC x 1-1/8 inch (Replaces setscrew K602844)

1шт.

15

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

set, special, quadrant to housing, 5/16 NC x3/4 inch

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , quadrant to housing (Replaces washer K19481) 5/16"

3шт.

16

K947403

BRACKET

GUIDE finger

2шт.

17

K921826

SERRATED NUT

hand, 5/16 inch NF

2шт.

18

K909577

STUD

special, 5/16 inch NF

2шт.

19

K262213

COIL SPRING

PLATE carrier (Replaces plate K913935)

1шт.

20

K624582

RETAINER

CLIP, carrier, Serial Range: plate-quadrant

1шт.

K626662

WASHER

flat, carrier plate to quadrant, 1/4 inch (Replaces washer K19470)

1шт.

K626682

WASHER

flat, carrier plate to quadrant, 5/16 inch

1шт.

425-105

NUT,5/16"-18, G5

- hex, carrier plate to quadrant, 5/16 inch NC (Replaces nut K607044)

1шт.

21

K913637

STOP

PLATE abutment

1шт.

22

K604575

SCREW

set, plate to quadrant, 5/16 NC x 5/8 inch

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , plate to quadrant (Replaces washer K19481) 5/16"

2шт.

23

K913268

LEVER

control

1шт.

24

K909581

SHAFT

control lever

1шт.

25

38-11020

LOCK PIN,5/32" x 1 1/4", Slotted

Pin, (Replaces pin K623942) 5/32" x 1 1/4", Slotted

1шт.

26

37-1316

DOWEL,3/16" x 1"

PIN, hardened , 3/16 x 1 inch (Replaces pin K621811)

1шт.

27

K262715

WASHER

friction (Replaces washer K909582)

2шт.

28

K950864

PLATE

friction

1шт.

29

K626740

WASHER

Belleville

1шт.

K626686

WASHER

flat, 1/2 inch

1шт.

425-148

JAM NUT,Jam, 1/2"-13, G5

(Replaces nut K607084) Jam, 1/2"-13, G5

1шт.

K607804

NUT

capped, 1/2 inch NC

1шт.

30

K909584

FORK

connecting rod

1шт.

31

38-31016

PIN,5/32" x 1", Coiled

(Replaces pin K623940) 5/32" x 1", Coiled

1шт.

32

K903370

PIN

connecting rod fork

1шт.

33

K909585

ROD

connecting

1шт.

34

K625161

SPRING

connecting rod

1шт.

35

K903367

COLLAR

connecting rod

1шт.

36

K964098

NUT

hex, self-locking, 5/16 inch NC (Replaces nut K607326)

1шт.

37

K961904

DECAL

STUD special, 1/4 inch NC, if used (Replaces stud K913834)

1шт.

K607514

NUT

hex, 1/4 inch NC, if used

1шт.

38

K914835

BUSHING

stud, if used

1шт.

39

238-5112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

If used (Replaces O-ring K900380) -112, 70 Duro, .487" ID x .103" Thk

1шт.

40

K914833

WASHER

CATCH abutment plate, if used

1шт.

K626682

WASHER

flat, 5/16 inch, if used

1шт.

41

K623424

RING

sealing, 1/2 inch ID

1шт.

42

K627068

BUSHING

SLEEVE plastic

1шт.

Выбрано товаров: 55
