Запчасти Case IH 1210 (8-10) - TANDEM PUMP HIGH PRESSURE PIPES (08) - HYDRAULICS

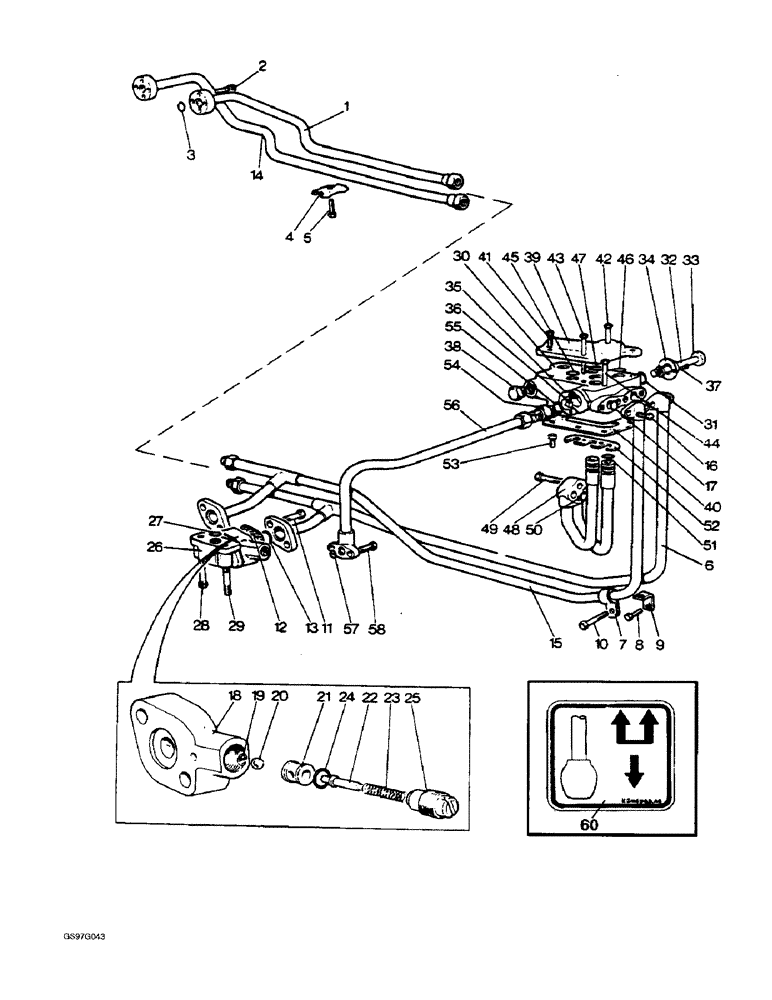

Схема запчастей Case IH 1210 - (8-10) - TANDEM PUMP HIGH PRESSURE PIPES (08) - HYDRAULICS
55
25
42
43
32
44
16
1
39
53
37
13
9
29
7
56
50
60
22
6
48
31
3
14
12
19
24
8
30
38
10
2
49
5
35
58
52
17
57
20
26
4
18
28
45
33
11
41
51
34
47
36
21
23
27
40
15
54
46

Артикул

Название

Примечание

Количество

1

K950128

PIPE

rear pump outlet

1шт.

2

61-32516

HEX SOC SCREW,1/4"-20 x 1"

BOLT hex socket, 1/4 NC x 1 inch (Replaces screw K606504)

8шт.

3

238-6114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

(Replaces O-ring K24676) -114, 90 Duro, .612" ID x .103" Thk

2шт.

4

K916899

BRACKET

outlet pipes

2шт.

5

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

hex, 5/16 NC x 1-1/8 inch (Replaces screw K602806)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer K19481) 5/16"

2шт.

6

K952534

PIPE

relief valve to combining valve, used with 1210 and 1212 tractors with serial number 11152576 and after; 1210Q, 1212Q, 1210Sk and 1212Sk tractors with serial number 11152617 and after

1шт.

6

K928526

PIPE

relief valve to combinng valve, used with 1210 and 1212 tractors with serial numbers prior to 11152576; 1210Q, 1212Q, 1210Sk and 1212Sk tractors with serial numbers, Serial Range: prior-11152617

1шт.

7

K621686

CLIP

pipe to right-hand hitch bracket

2шт.

K628240

STRIP

rubber, pipe to right-hand hitch bracket

2шт.

8

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

hex, pipe to right-hand hitch bracket, 3/8 NC x 1-1/4 inch (Replaces screw K602906)

1шт.

9

K949981

BRACKET

right-hand hitch, used with 1210 and 1212 tractors with serial number 11152576 and after; 1210Q, 1212Q, 1210Sk and 1212Sk tractors with serial number 11152617 and after, no longer available

1шт.

10

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, pipe to right-hand hitch bracket, 3/8 NC x 1-1/2 inch, used with 1210 and 1212 tractors with serial number 11152576 and after; 1210Q, 1212Q, 1210Sk and 1212Sk tractors with serial number 11152617 and after (Replaces setscrew K602908)

1шт.

492-11038

LOCK WASHER,3/8"

pipe to right-hand hitch bracket, used with bolt 413-624, item 10 above (Replaces washer K19482) 3/8"

1шт.

280136

NUT,3/8"-16, G8

Pipe to RH hitch bracket, 3/8 inch NC, used with bolt 413-624, item 10 above 3/8"-16, G8

1шт.

10

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch, Pipe to RH hitch bracket, Used with 1210 and 1212 tractors with serial numbers prior to 11152576; 1210Q, 1212Q, 1210Sk and 1212Sk tractors with S/N's prior to 11152617 (Replaces bolt K600410)

1шт.

K627040

BUSHING

SPACER pipe to right-hand hitch bracket, used with 1210 and 1212 tractors with serial number 11152576 and after; 1210Q, 1212Q, 1210Sk and 1212Sk tractors with serial number 11152617 and after

1шт.

K627046

BUSHING

SPACER pipe to right-hand hitch bracket, used with 1210 and 1212 tractors with serial numbers prior to 11152576; 1210Q, 1212Q, 1210Sk and 1212Sk tractors with serial numbers prior to 11152617, no longer available

1шт.

11

K692128

BOLT

hex, pipes to relief valve, 3/8 NC x 2-5/8 inch, used with 1210 and 1212 tractors with serial number 11152576 and after; 1210Q, 1212Q, 1210Sk and 1212Sk tractors with serial number 11152617 and after (Replaces bolt K600413)

2шт.

11

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Pipes to relief valve, used with 1210 and 1212 tractors with serial numbers prior to 11152576; 1210Q, 1212Q, 1210Sk and 1212Sk tractors with S/N's prior to 11152617 Hex, 3/8"-16 x 2", G5

2шт.

492-11038

LOCK WASHER,3/8"

pipes to relief valve (Replaces washer K19482) 3/8"

4шт.

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Pipes to relief valve Hex, 3/8"-16 x 1 1/8", G5, Full Thd

2шт.

K928522

SEAL

pipes to relief valve

1шт.

12

K928522

SEAL

bleed valve to relief valve, used with 1210 and 1212 tractors with serial number 11152576 and after; 1210Q, 1212Q, 1210Sk and 1212Sk tractors with serial number 11152617 and after

1шт.

12

K919415

SEAL

pipe flange, used with 1210 and 1212 tractors with serial numbers prior to 11152576; 1210Q, 1212Q, 1210Sk and 1212Sk tractors with serial numbers, Serial Range: prior-11152617

1шт.

13

K14509

O-RING,0.796" ID x 1.047" OD x 0.139"

13/16 inch ID

3шт.

14

K949975

PIPE

front pump outlet, used with 1210 and 1212 tractors with serial number 11152576 and after; 1210Q, 1212Q, 1210Sk and 1212Sk tractors with serial number 11152617 and after, no longer available

1шт.

14

K919532

PIPE

front pump outlet, used with 1210 and 1212 tractors with serial numbers prior to 11152576; 1210Q, 1212Q, 1210Sk and 1212Sk tractors with serial numbers, Serial Range: prior-11152617

1шт.

15

K952537

PIPE

relief valve to filter, used with 1210 and 1212 tractors with serial number 11152576 and after; 1210Q, 1212Q, 1210Sk and 1212Sk tractors with serial number 11152617 and after, no longer available, order pipes K954511 and K954512 below

1шт.

15

K919534

PIPE

relief valve to combining valve, used with 1210 and 1212 tractors with serial numbers prior to 11152576; 1210Q, 1212Q, 1210Sk and 1212Sk tractors with serial numbers, Serial Range: prior-11152617

1шт.

K954511

PIPE

union to bleed, Serial Range: valve-union

1шт.

K954512

PIPE

, Serial Range: union-filter

1шт.

16

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

hex, pipes to combining valve, 5/16 NC x 1 inch

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , pipes to combining valve 5/16"

4шт.

17

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

(Replaces O-ring K24852) -115, 90 Duro, .674" ID x .103" Thk

2шт.

K928525

VALVE

ASSEMBLY, bleed, Includes: Ref. 18 - 25

1шт.

18

K928518

HOUSING

BODY bleed valve, order valve assembly

1шт.

19

K924115

BALL

RETAINER, no longer available

1шт.

20

211-1009

BALL

chrome alloy steel, 9/32 inch, grade 24

1шт.

K626792

WASHER

special, 5/16 inch

1шт.

21

K924321

VALVE

SEAT

1шт.

22

K924117

PLUNGER

valve

1шт.

23

K625233

SPRING

valve

1шт.

24

K24554

O-RING

3/8 inch ID

1шт.

25

K924116

PLUG

special, 5/8 inch NF, no longer available

1шт.

26

K952323

VALVE

relief, pre-set assembly, used with 1210 and 1212 tractors with serial number 11152576 and after; 1210Q, 1212Q, 1210Sk and 1212Sk tractors with serial number 11152617 and after

2шт.

26

K919417

VALVE

relief, rear pump, used with 1210 and 1212 tractors with serial numbers prior to 11152576; 1210Q, 1212Q, 1210Sk and 1212Sk tractors with serial numbers prior to 11152617, no longer available

1шт.

26

K928524

VALVE

relief, pre-set assembly, front pump, used with 1210 and 1212 tractors with serial numbers prior to 11152576; 1210Q, 1212Q, 1210Sk and 1212Sk tractors with serial numbers, Serial Range: prior-11152617

1шт.

27

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

relief valve to main frame, 11/16 inch ID

2шт.

28

113-336

BOLT,Hex, 7/16" - 14 x 2-1/4", Gr 5

hex, relief valve to main frame, 7/16 NC x 2-1/4 inch

3шт.

29

K608315

STUD

relief valve to main frame, 7/16 NC x 2-3/4 inch, no longer available

1шт.

K626522

SEALING WASHER

sealing, relief valve to main frame, 7/16 inch

2шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, , Relief valve to main frame 7/16"

4шт.

425-107

NUT,7/16"-14, G5

hex, 7/16 inch NC, Relief valve to main frame

1шт.

30

K919808

VALVE

ASSEMBLY combining, no longer available, order valve K203624 and decal K204989, Refs. 59 and 60, Includes: Ref. 31 - 37, Screw, and Washer

1шт.

31

K625405

O-RING,0.549" ID x 0.103" Width

9/16 inch ID

2шт.

32

K919702

SPOOL

EXTENSION, no longer available

1шт.

33

K919703

KNOB

combining valve, no longer available

1шт.

34

K919704

CAP

end, no longer available

1шт.

35

K923484

CAP

ASSEMBLY end, no longer available, Includes: Ref. 36

1шт.

36

K915393

FOAM

PAD

1шт.

37

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

- machine, pan Phillips, No. 10 NF x 1/2 inch

2шт.

K614946

SCREW,Pan, #10 - 32 x 3/4"

hex, No. 10 NF x 3/4 inch

2шт.

92-3

LOCK WASHER,#10

WASHER, LOCK, (Replaces washer K19488) #10

4шт.

38

K619528

PLUG

7/8 inch NF

1шт.

K30085

GASKET

WASHER fibre, 7/8 inch

1шт.

39

K919242

COVER

PLATE

1шт.

40

K917387

GASKET

cover and valve to axle housing

1шт.

41

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, cover and valve to axle housing, 3/8 NC x 1 inch (Replaces screw K602904)

2шт.

42

413-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 5

hex, cover and valve to axle housing, 3/8 NC x 4-1/4 inch (Replaces bolt K600421)

1шт.

43

113-252

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

Cover and valve to axle housing (Replaces bolt K600419) Hex, 3/8"-16 x 3 3/4", G5

2шт.

44

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

hex, cover and valve to axle housing, 3/8 NC x 3-1/4 inch (Replaces bolt K600417)

1шт.

492-11038

LOCK WASHER,3/8"

cover and valve to axle housing (Replaces washer K19482) 3/8"

6шт.

45

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

Cover and valve to axle housing (Replaces O-ring K24852) -115, 90 Duro, .674" ID x .103" Thk

3шт.

46

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

Cover and valve to axle housing (Replaces O-ring K24556) -210, 70 Duro, .734" ID x .139" Thk

2шт.

47

K623588

O-RING,2.69mm Thk x 29.97mm ID, 75 Duro

cover and valve to axle housing, 1-3/16 inch ID

1шт.

48

K952224

PIPE

control valve to combining valve

1шт.

49

107-1618

PREV TORQUE BOLT,Locking, 3/8"-16 x 1 1/8", G8

BOLT hex, pipe to control valve, 3/8 NC x 1-5/8 inch (Replaces bolt K600405)

2шт.

492-11038

LOCK WASHER,3/8"

pipe to control valve (Replaces washer K19482) 3/8"

2шт.

50

K625408

O-RING

pipe to control valve, 7/16 inch ID (Replaces O-ring K24779)

2шт.

51

K625405

O-RING,0.549" ID x 0.103" Width

2-1/4 x 2-5/8 inch, class 5 (Replaces O-ring K623557)

2шт.

52

K915344

WASHER

PLATE locating, no longer available

1шт.

53

K604094

SCREW

set, 1/4 NC x 5/8 inch (Replaces screw K603662)

2шт.

54

K626026

FITTING

UNION, 7/8 inch NF

1шт.

K30085

GASKET

WASHER fibre, 7/8 inch

1шт.

55

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, (Replaces O-ring K623592)

1шт.

56

K919244

PIPE,16.375, 4.875" L

combining valve to ram cylinder

1шт.

57

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

11/16 inch ID

1шт.

58

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

hex, 5/16 NC x 1 inch (Replaces screw K602805)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer K19481) 5/16"

2шт.

59

K203624

VALVE

combining, not shown (Replaces valve assembly K919808)

1шт.

60

K204989

DECAL

combining valve

1шт.

Выбрано товаров: 92
