Запчасти Case IH 1210 (8-06) - SINGLE PUMP HIGH PRESSURE PIPES (08) - HYDRAULICS

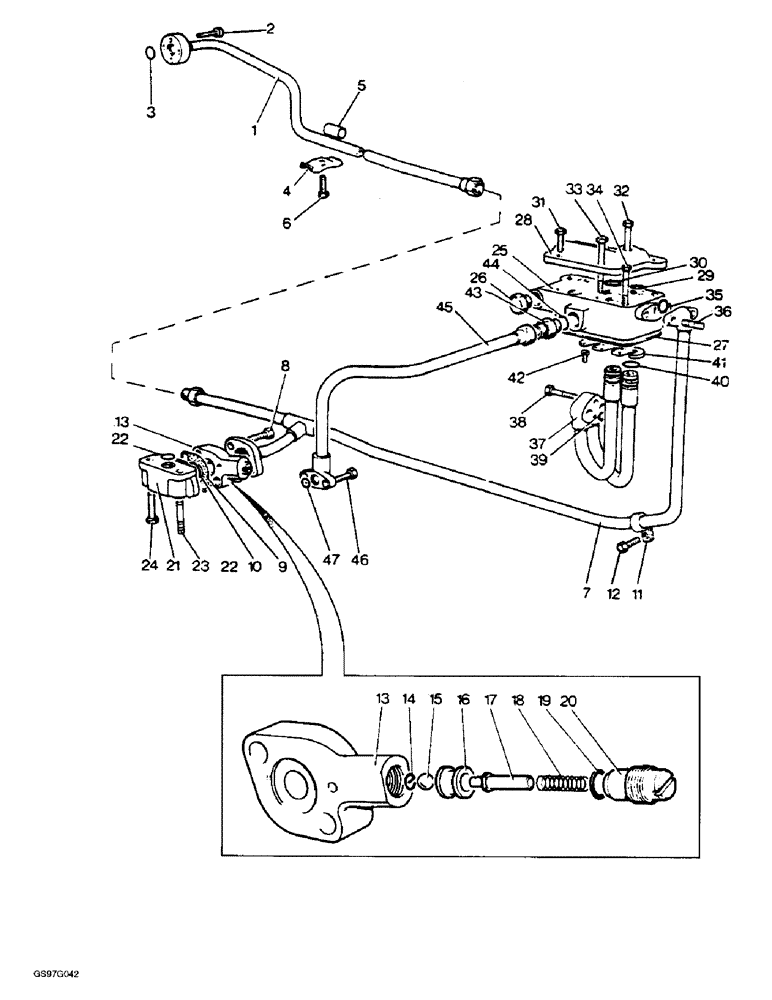

Схема запчастей Case IH 1210 - (8-06) - SINGLE PUMP HIGH PRESSURE PIPES (08) - HYDRAULICS
25
36
42
8
6
12
39
46
16
14
10
45
30
22
24
1
19
40
41
22
35
37
7
47
28
44
5
13
32
20
2
34
33
27
11
18
17
21
43
4
38
3
30
9
23
13
26
31
15

Артикул

Название

Примечание

Количество

1

K950128

PIPE

pump outlet

1шт.

2

61-32516

HEX SOC SCREW,1/4"-20 x 1"

BOLT hex socket, pipe to pump, 1/4 NC x 1 inch

4шт.

3

238-6114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

Pipe to pump (Replaces O-ring K24676) -114, 90 Duro, .612" ID x .103" Thk

1шт.

4

K916899

BRACKET

outlet pipes

2шт.

5

K919418

SUPPORT

BLOCK

2шт.

6

K602806

BOLT

SCREW set, 5/16 NC x 1-1/8 inch

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer K19481) 5/16"

2шт.

7

K952532

PIPE

valve to filter, tractor serial number 11200752 and after, no longer available, order pipes K203625, K203628 and K954510 below

1шт.

7

K928526

PIPE

valve to distribution block, tractor serial numbers, Serial Range: prior-11200752

1шт.

K203625

PIPE

union, bleed valve

1шт.

K203628

PIPE

, Serial Range: union-filter

1шт.

K954510

PIPE

union to bleed, Serial Range: valve-union

1шт.

8

K692128

BOLT

hex, pipe to relief valve, 3/8 NC x 2-5/8 inch, tractor serial number 11200752 and after (Replaces bolt K600413)

2шт.

8

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Pipe to relief valve, tractor S/N's prior to 11200752 (Replaces bolt K600408) Hex, 3/8"-16 x 2", G5

2шт.

492-11038

LOCK WASHER,3/8"

pipe to relief valve (Replaces washer K19482) 3/8"

2шт.

9

K928522

SEAL

pipe to relief valve

1шт.

10

238-5211

O-RING,0.139" Thk x 0.796" ID, -211, Cl 5, 75 Duro

(Replaces O-ring K14509) -211, 70 Duro, .796" ID x .139" Thk

2шт.

11

K621686

CLIP

pipe to hitch bracket

1шт.

K628240

STRIP

rubber, pipe to hitch bracket

1шт.

12

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Pipe to hitch bracket (Replaces setscrew K602906) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

492-11038

LOCK WASHER,3/8"

pipe to hitch bracket (Replaces washer K19482) 3/8"

1шт.

280136

NUT,3/8"-16, G8

Pipe to hitch bracket 3/8"-16, G8

1шт.

K928525

VALVE

ASSEMBLY bleed, Includes: Ref. 13 - 20

1шт.

13

K928518

HOUSING

BODY bleed valve, order valve assembly

1шт.

14

K924115

BALL

RETAINER, no longer available

1шт.

15

211-1009

BALL

chrome alloy steel, 9/32 inch, grade 24 (Replaces ball K620089)

1шт.

K626792

WASHER

special, 5/16 inch

1шт.

16

K924321

VALVE

SEAT, no longer available

1шт.

17

K924117

PLUNGER

valve

1шт.

18

K625233

SPRING

valve

1шт.

19

K24554

O-RING

3/8 inch ID

1шт.

20

K924116

PLUG

special, 5/8 inch NF, no longer available

1шт.

21

K952323

VALVE

relief, pre-set assembly, tractor serial number 11200752 and after

1шт.

21

K928524

VALVE

relief, pre-set assembly, tractor serial numbers, Serial Range: prior-11200752

1шт.

22

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

Valve to main frame (Replaces O-ring K24852) -115, 90 Duro, .674" ID x .103" Thk

1шт.

23

K608315

STUD

valve to main frame, 7/16 NC x 2-3/4 inch, no longer available

1шт.

425-107

NUT,7/16"-14, G5

hex, 7/16 inch NC, Valve to main frame (Replaces nut B90348)

1шт.

24

113-336

BOLT,Hex, 7/16" - 14 x 2-1/4", Gr 5

hex, valve to main frame, 7/16 NC x 2-1/4 inch (Replaces bolt K600608)

1шт.

K626522

SEALING WASHER

sealing, valve to main frame, 7/16 inch

2шт.

25

K919241

DISTRIBUTOR

BLOCK distribution, no longer available, order block K957148 and pipe K202493

1шт.

25

K957148

BLOCK

distribution

1шт.

25a

K202493

PIPE,0.625" OD

distribution block, not shown

1шт.

26

K619528

PLUG

7/8 inch NF

1шт.

K30085

GASKET

WASHER fibre, 7/8 inch

1шт.

27

K917387

GASKET

distribution block

1шт.

28

K919242

COVER

PLATE

1шт.

29

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

(Replaces O-ring K24852) -115, 90 Duro, .674" ID x .103" Thk

5шт.

30

K623588

O-RING,2.69mm Thk x 29.97mm ID, 75 Duro

1-3/16 inch ID

1шт.

31

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/16 NC x 1 inch (Replaces setscrew K602904)

2шт.

32

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

(Replaces bolt K600414) Hex, 3/8"-16 x 2 3/4", G5

1шт.

33

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

(Replaces bolt K600416) Hex, 3/8"-16 x 3", G5

2шт.

34

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

hex, 3/8 NC x 3-1/2 inch (Replaces bolt K600418)

1шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer K19482) 3/8"

6шт.

35

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

Pipe to distribution block (Replaces O-ring K24852) -115, 90 Duro, .674" ID x .103" Thk

1шт.

36

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

hex, pipe to distribution block, 5/16 NC x 1 inch, tractor serial number 11200752 and after (Replaces setscrew K602805)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , pipe to distribution block (Replaces washer K19481) 5/16"

2шт.

36

K608102

STUD

pipe to distributoin block, 5/16 NC x 1-1/4 inch, tractor serial numbers prior to 11200752, no longer available

2шт.

425-105

NUT,5/16"-18, G5

- hex, pipe to distribution block, 5/16 inch NC, tractor S/N's prior to 11200752 (Replaces nut K607001)

2шт.

37

K952224

PIPE

control valve to distribution block (Replaces pipe K928773)

1шт.

38

107-1618

PREV TORQUE BOLT,Locking, 3/8"-16 x 1 1/8", G8

BOLT hex, pipe to control valve, 3/8 NC x 1-5/8 inch (Replaces bolt K600405)

2шт.

492-11038

LOCK WASHER,3/8"

pipe to control valve (Replaces washer K19482) 3/8"

2шт.

39

K625408

O-RING

pipe to control valve, 7/16 inch ID (Replaces O-ring K24779)

2шт.

40

K625405

O-RING,0.549" ID x 0.103" Width

2-1/4 x 2-5/8 inch, class 5 (Replaces O-ring K623557)

2шт.

41

K915344

WASHER

PLATE locating, no longer available

1шт.

42

K604094

SCREW

set, 1/4 NC x 5/8 inch (Replaces screw K603662)

2шт.

43

K626026

FITTING

UNION, 7/8 inch NF

1шт.

44

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, (Replaces O-ring K623592)

1шт.

45

K919244

PIPE,16.375, 4.875" L

distribution block to ram cylinder

1шт.

46

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

hex, pipe to take-off valve, 5/16 NC x 1-1/8 inch (Replaces screw K602806)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , pipe to take-off valve (Replaces washer K19481) 5/16"

2шт.

47

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

Pipe to take-off valve (Replaces O-ring K24852) -115, 90 Duro, .674" ID x .103" Thk

1шт.

Выбрано товаров: 71
