Запчасти Case IH 1210 (7-08) - TRANSMISSION BRAKE, 1210G AND 1212G TRACTORS (07) - BRAKES

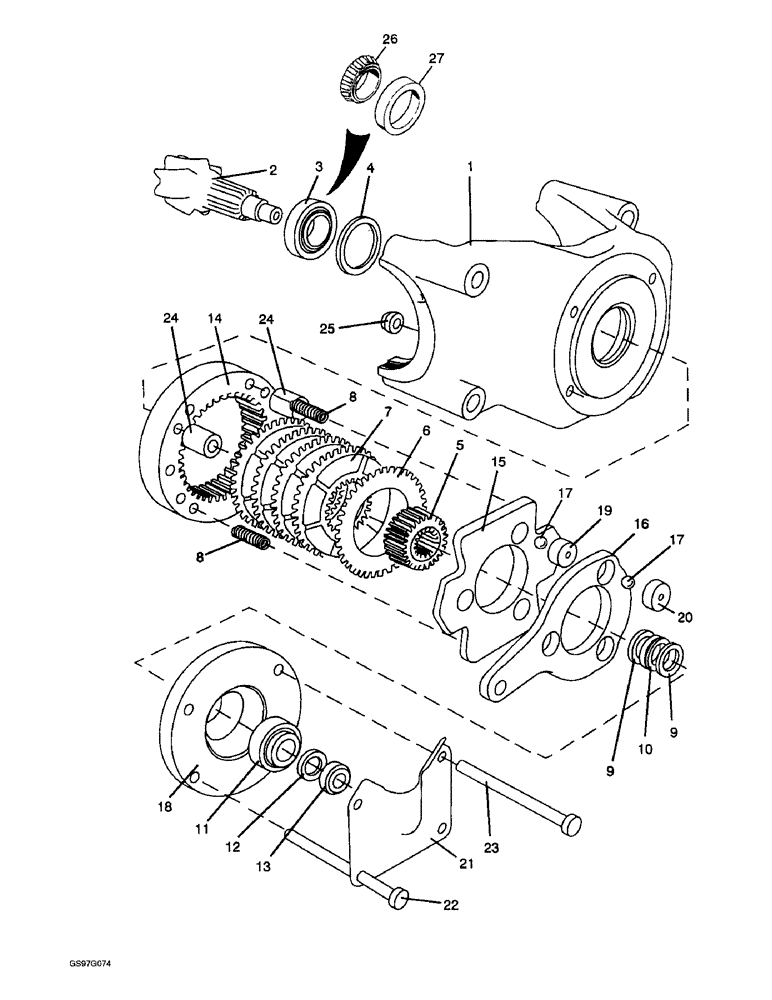

Схема запчастей Case IH 1210 - (7-08) - TRANSMISSION BRAKE, 1210G AND 1212G TRACTORS (07) - BRAKES
16
3
20
15
8
18
8
9
22
19
14
21
7
1
4
13
23
11
9
5
24
17
17
24
25
27
6
10
26
12
2

Артикул

Название

Примечание

Количество

1

K922866

SUPPORT

HOUSING brake, includes end plate, no longer available

1шт.

2

K922571

SHAFT ASSY.

PINION bevel, no longer available

1шт.

3

K620083

ROLLER

BEARING tapered roller, no longer available, order cup 453012R1 and bearing 453011R91, Ref. 26 and 27

1шт.

4

K626204

SHIM,.002" Thk

No longer available .002" Thk

1шт.

4

K626205

SHIM,.003" Thk

No longer available .003" Thk

1шт.

4

K626206

SHIM,.005" Thk

No longer available .005" Thk

1шт.

4

K626207

SHIM,.010" Thk

No longer available .010" Thk

1шт.

5

K922789

GEAR

driven, 30 tooth, no longer available

1шт.

6

K902394

PLATE

clutch, steel, no longer available

5шт.

7

K953162

LARGE PLATE

clutch, bronze, no longer available (Replaces plate K902393)

4шт.

8

K13226

SPRING

clutch ring

6шт.

9

K626733

WASHER

special, 1 inch, no longer available

2шт.

10

K626200

SHIM,.002" Thk

1шт.

10

K626201

SHIM,.003" Thk

1шт.

10

K626202

SHIM,.005" Thk

1шт.

10

K626203

SHIM,.010" Thk

1шт.

11

K620084

BEARING, ROLLER

tapered roller, no longer available

1шт.

12

K626912

WASHER

special, no longer available

1шт.

13

K617592

NUT

hex, left-hand, 3/4 inch NF, no longer available

1шт.

14

K918712

CLUTCH

RING, no longer available

1шт.

15

K918714

BLOCK

thrust, no longer available

1шт.

16

K923223

PLATE

operating

1шт.

17

211-1016

BALL,12.7mm OD, Gr 24

chrome alloy steel, 1/2 inch, grade 24 (Replaces steel ball K30112)

6шт.

18

K918717

HOUSING

bearing, no longer available

1шт.

19

K962552

BUTTON

thrust, operating plate (Replaces button K918871)

3шт.

20

K962551

BUTTON

thrust, bearing housing (Replaces button K918870)

3шт.

21

K922632

COVER bearing housing, no longer available

1шт.

22

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

hex, 1/2 NC x 4-1/2 inch (Replaces bolt K600820)

2шт.

23

K600879

BOLT

hex, fitted, 1/2 NC x 4-1/2 inch, no longer available

2шт.

24

K627069

BUSHING

SPACER clutch ring, no longer available

4шт.

25

231-1448

NUT,1/2"-13, GB

hex, self-locking, 1/2 inch NC (Replaces nut K607304)

4шт.

26

453011R91

ROLLER BEARING,1.5" ID x 2.717" OD x 0.75"

tapered roller

1шт.

27

453012R1

BEARING CUP

tapered roller bearing

1шт.

Выбрано товаров: 33
