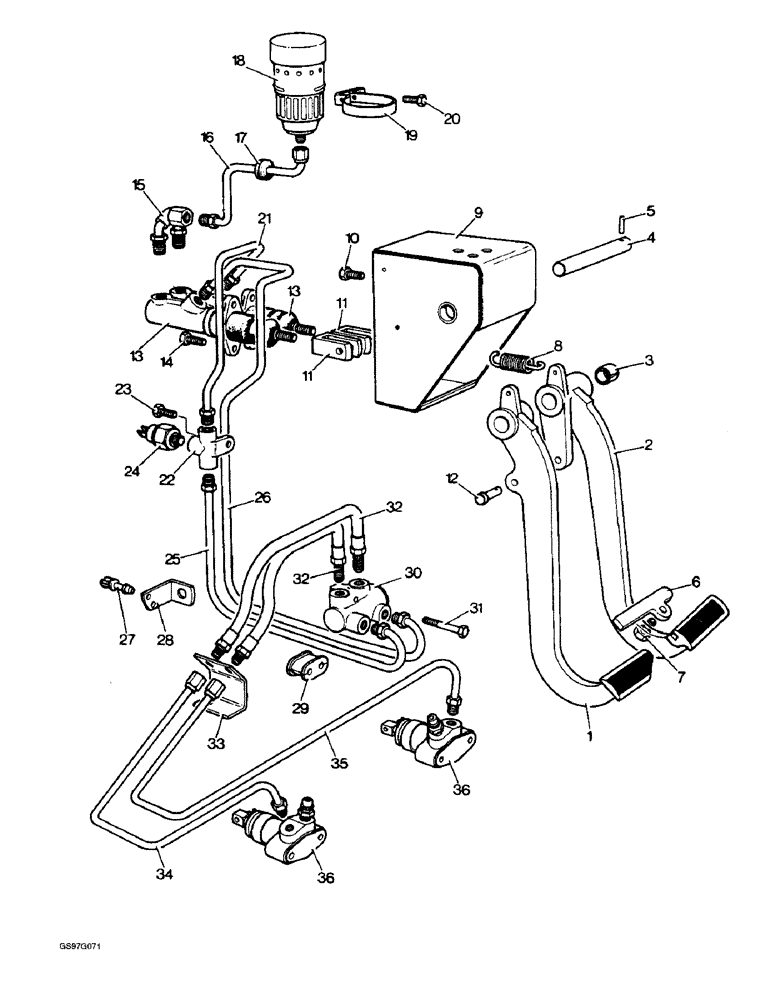

Запчасти Case IH 1210 (7-02) - HYDRAULIC BRAKING SYSTEM, 1210Q, 1212Q, 1210SK AND 1212SK TRACTORS FOR EUROPE ONLY (07) - BRAKES

1

K949254

BRAKE

PEDAL, left-hand, no longer available

1шт.

2

K949255

BRAKE

PEDAL, right-hand, no longer available

1шт.

3

K628754

BUSHING

brake pedals

4шт.

4

K950568

PIN

pivot, pedals, no longer available

1шт.

5

K19552

GROOVED PIN,1/8" x 1 1/8", Type A

1/8" x 1 1/8", Type A

1шт.

6

K948974

LATCH

locking, brake pedals (Replaces latch K940670)

1шт.

7

K600500

SCREW

BOLT special, 3/8 NC

1шт.

K626700

WASHER

lock, 3/8 inch

1шт.

8

K624947

SPRING

return

2шт.

9

K949253

SUPPORT

BRACKET, pedals, no longer available

1шт.

10

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

set, bracket to cab, 5/16 NC x 3/4 inch, used with 1210Q and 1212Q tractors

2шт.

10

K602846

SCREW,5/16" - 18 x 5/8", Gr S

set, 5/16 NC x 5/8 inch, bracket to cab, used with 1210Sk and 1212Sk tractors

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , bracket to cab (Replaces washer K19481) 5/16"

2шт.

11

K622205

FORK

END, 5/16 NC

2шт.

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF (Replaces nut K616981)

2шт.

12

K625954

PIN

clevis, 5/16 x 1-3/16 inch, no longer available

2шт.

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), (Replaces pin K623605) 1/16" x 1/2"

2шт.

13

K950544

CYLINDER,36.32mm Stroke

master, Girling 73067017

2шт.

14

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

hex, cylinders to cab, 5/16 NC x 1-1/8 inch

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , cylinders to cab (Replaces washer K19481) 5/16"

4шт.

15

K951958

PIPE

master cylinder inlet, no longer available

1шт.

16

K951369

PIPE

reservoir to master cylinders, used with 1210Q and 1212Q tractors, no longer available

1шт.

16

K954504

PIPE

reservoir to master cylinders, used with 1210Sk and 1212Sk tractors, no longer available

1шт.

17

K627748

GROMMET

7/8 inch split, no longer available

1шт.

17

K627736

GROMMET

5/8 inch split, used with 1210Q and 1212Q tractors, no longer available

1шт.

18

K951526

RESERVOIR

ASSEMBLY brake, Includes: Cap and Cover

1шт.

K964488

CAP

filler

1шт.

K964813

COVER

blue, no longer available

1шт.

19

K624873

CLIP

reservoir, no longer available

1шт.

20

K614946

SCREW,Pan, #10 - 32 x 3/4"

set, No. 10 NF x 3/4 inch

1шт.

93-2

WASHER lock, No. 10 (Replaces washer K19488)

1шт.

225-14210

NUT,#10-32

(Replaces nut K617080) #10-32

1шт.

21

K951959

BRAKE LINE

PIPE master cylinder to tee, no longer available

1шт.

22

K652091

FITTING

TEE special, no longer available

1шт.

23

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

set, 5/16 NC x 3/4 inch

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer K19481) 5/16"

1шт.

24

K951976

LIGHT SWITCH

stop lamps, Lucas 30874A

1шт.

25

K954390

PIPE

tee to balance valve, used with 1210Q and 1212Q tractors, no longer available

1шт.

25

K954502

BRAKE

PIPE tee to balance valve, used with 1210Sk and 1212Sk tractors, no longer available

1шт.

26

K954391

BRAKE

PIPE master cylinder to balance valve, used with 1210Q and 1212Q tractors, no longer available

1шт.

26

K954501

BRAKE

PIPE master cylinder to balance valve, used with 1210Sk and 1212Sk tractors, no longer available

1шт.

27

K625008

CLIP

brake pipes

2шт.

28

K954007

BRACKET clips, used with 1210Q and 1212Q tractors

1шт.

29

K952209

PIPE

BLOCK packing, brake pipes, no longer available

2шт.

30

K950547

VALVE

balance, Girling 73067018, no longer available

1шт.

31

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Valve to cab floor (Replaces bolt K600152) Hex, 1/4"-20 x 2", G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Valve to cab floor (Replaces washer K626341) 1/4"

1шт.

32

K952451

PIPE

flexible, 12 mm x 22 inch (559 mm) long, no longer available

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer K626345) 1/2"

2шт.

K652100

LOCK NUT

lock, 12 mm

2шт.

33

K951919

BRACKET

brake pipes, no longer available

1шт.

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

(Replaces bolt K602903) Hex, 3/8"-16 x 7/8", G5, Full Thd

1шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer K19482) 3/8"

1шт.

34

K951963

PIPE

left-hand slave cylinder, no longer available

1шт.

35

K951962

PIPE

right-hand slave cylinder, no longer available

1шт.

36

K950549

CYLINDER

slave, Girling 73067021, no longer available

2шт.

37

K964534

SCREW,M12 x 1

bleed, metric, slave cylinder, not shown

2шт.

K964572

SEAL KIT

mineral oil seal, master cylinder

2шт.

K964574

KIT

mineral oil seal, slave cylinder

2шт.

38

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Cylinders to mounting brackets, Not shown (Replaces bolt K600321) Hex, 5/16"-18 x 2", G5

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , cylinders to mounting brackets (Replaces washer K19481) 5/16"

4шт.

425-105

NUT,5/16"-18, G5

- hex, cylinders to mounting brackets, 5/16 inch NC (Replaces nut K607044)

4шт.
