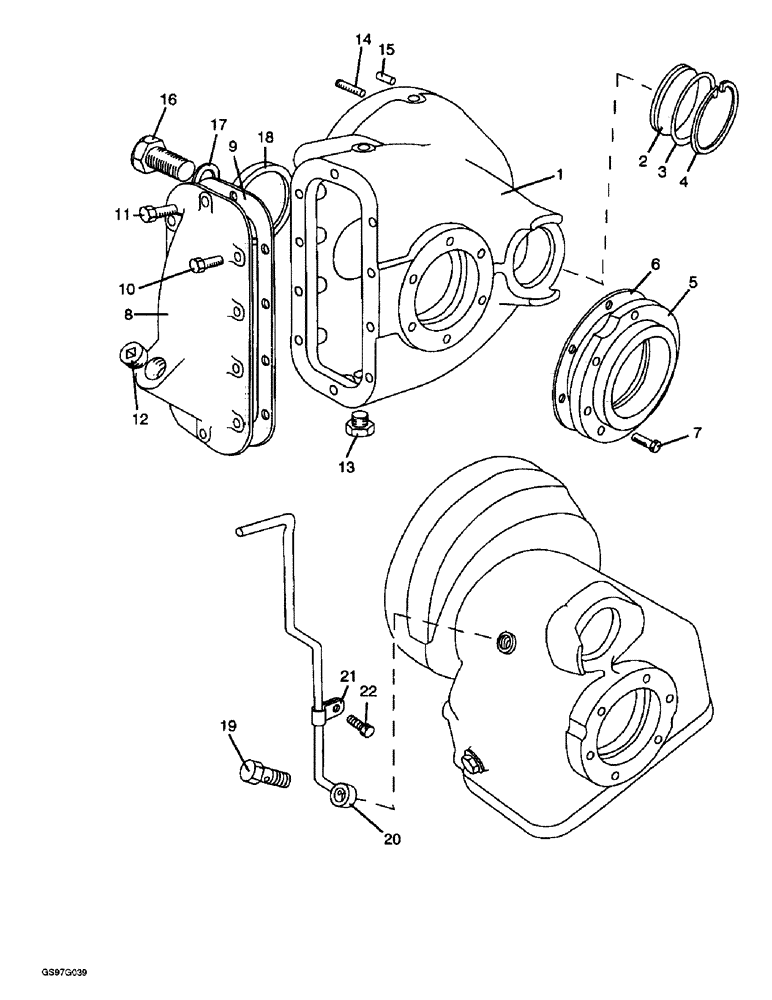

Запчасти Case IH 1210 (6-60) - FINAL DRIVE, HOUSING AND COVERS (06) - POWER TRAIN

1

K954072

GEAR

HOUSING standard clearance, right-hand

1шт.

Used with 1210, 1212, 1210G and 1212G tractors.

1шт.

K954071

GEAR

HOUSING standard clearance, left-hand

1шт.

Used with 1210, 1212, 1210G and 1212G tractors.

1шт.

1

K948379

GEAR

HOUSING right-hand, used with 1210 and 1210G four-wheel drive tractors

1шт.

K948378

GEAR

HOUSING left-hand, used with 1210 and 1210G four-wheel drive tractors, no longer available

1шт.

1

K951989

GEAR

HOUSING right-hand, used with 1210Q and 1210Sk four-wheel drive tractors, no longer available

1шт.

K951988

GEAR

HOUSING left-hand, used with 1210Q and 1210Sk four-wheel drive tractors, no longer available

1шт.

1

K954074

GEAR

HOUSING standard clearance, right-hand, used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors, no longer available

1шт.

K954073

GEAR

HOUSING standard clearance, left-hand, used with 1210Q, 1212Q, 1210Sk and 1212Sk tractors, no longer available

1шт.

1

K944890

GEAR

HOUSING high clearance, right-hand

1шт.

Used with 1210, 1212, 1210G and 1212G tractors.

1шт.

1

K944889

GEAR

HOUSING high clearance, left-hand

1шт.

Used with 1210, 1212, 1210G and 1212G tractors.

1шт.

2

K929045

COVER

end

2шт.

3

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

(Replaces O-ring K623545) -234, 70 Duro, 2.984" ID x .139" Thk

2шт.

4

K13042

RING, SNAP

3-1/4 inch

4шт.

5

K944516

HOUSING

oil seal, right-hand

1шт.

K944517

HOUSING

oil seal, left-hand

1шт.

6

K910404

GASKET

oil seal housing

2шт.

7

413-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

hex, oil seal housing to final drive housing, 7/16 NC x 1-1/2 inch (Replaces bolt K600602)

12шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, , Oil seal housing to final drive housing (Replaces washer K19483) 7/16"

12шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper (Replaces fitting K13176) 1/4"-28 NPT x .54" lg

2шт.

8

K901556

COVER

final drive housing

2шт.

9

K923221

GASKET,0.51mm Thk

housing cover

2шт.

10

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Eighteen used with housing K954072, K954071, K954074 and K954073; twenty used with all other housing Hex, 3/8"-16 x 1 1/8", G5, Full Thd

1шт.

492-11038

LOCK WASHER,3/8"

sixteen used with housing K951989, K951988, K954074 and K954073; eighteen used with all other housing 3/8"

1шт.

11

K600502

BOLT

breather, standard clearance, 3/8 NC, used with 1210, 1212, 1210G, 1212G, 1210Q, 1212Q, 1210Sk and 1212Sk tractors, no longer available

2шт.

K626521

SEALING WASHER

WASHER, 3/8 inch, four used with 1210Q four-wheel drive, 1210Sk four-wheel drive, 1210Q, 1212Q, 1210Sk and 1212Sk tractors; two used with all other models

1шт.

12

K12362

PLUG

taper, 1 inch BSP

2шт.

13

K623825

PLUG

flanged, 1/2 inch BSP, no longer available, order plug K623849 and washer K626317

2шт.

13

K623849

PLUG

flanged, 1/2 BSP

2шт.

K952129

BREATHER

PLUG, 1/2 inch BSP, used with 1210, 1210G, 1210Q and 1210Sk four-wheel drive tractors

2шт.

K626317

WASHER

sealing, 27/32 inch, four used with 1210, 1210G, 1210Q and 1210Sk four-wheel drive tractors; two used with all other models

1шт.

14

K608411

STUD

1/2 NC x 4-3/16 inch, twelve used with housing K944890 and K944889, twenty used with all other housing

1шт.

14

K608416

STUD

1/2 NC x 4-5/8 inch, high clearance, used with housing K944890 and K944889

8шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer K626345) 1/2"

20шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, (Replaces nut K607047) 1/2"-13, G5

20шт.

15

K11482

PIN

dowel, 7/16 x 1-1/4 inch

8шт.

353-11

PLUG,Cap, .610" OD

5/8 inch tapered, stabilizer bracket holes, used with 1210Q four-wheel drive, 1210Sk four-wheel drive, 1210Q, 1212Q, 1210Sk and 1212Sk tractors (Replaces plug K628084)

6шт.

353-7

PLUG,Cap, .458" OD

plastic, 1/2 inch, stabilizer bracket holes, used with 1210, 1212, 1210G, 1212G, 1210 four-wheel drive and 1210G four-wheel drive tractors (Replaces plug K628085)

6шт.

16

K611264

SCREW

adjusting, 3/4 NF

2шт.

17

K910401

SHIM,.003" Thk

1шт.

17

K910400

WASHER

SHIM, 0.005 inch

1шт.

17

K910399

SHIM,.015" Thk

(Replaces 0.030 inch shim K910398) .015" Thk

1шт.

18

K910396

PLATE

thrust

2шт.

19

K620360

BANJO BOLT

BOLT banjo, high clearance, 1/8 BSP

2шт.

Used with 1210, 1212, 1210G and 1212G tractors.

1шт.

K19504

WASHER,9.92mm ID x 14.29mm OD x 2mm Thk

fibre, reduction case, 3/8 inch

2шт.

Used with 1210, 1212, 1210G and 1212G tractors.

1шт.

20

K946147

TUBE

CONNECTOR banjo, breather

2шт.

Used with 1210, 1212, 1210G and 1212G tractors.

1шт.

21

K621638

CLIP

breather

4шт.

Used with 1210, 1212, 1210G and 1212G tractors.

1шт.

22

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Breather (Replaces setscrew K602743) Hex, 1/4"-20 x 1/2", G5, Full Thd

4шт.

Used with 1210, 1212, 1210G and 1212G tractors.

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer K626341) 1/4"

4шт.

Used with 1210, 1212, 1210G and 1212G tractors.

1шт.

K19591

PLUG

1/8 BSP

2шт.

Used with 1210, 1212, 1210G and 1212G tractors.

1шт.
