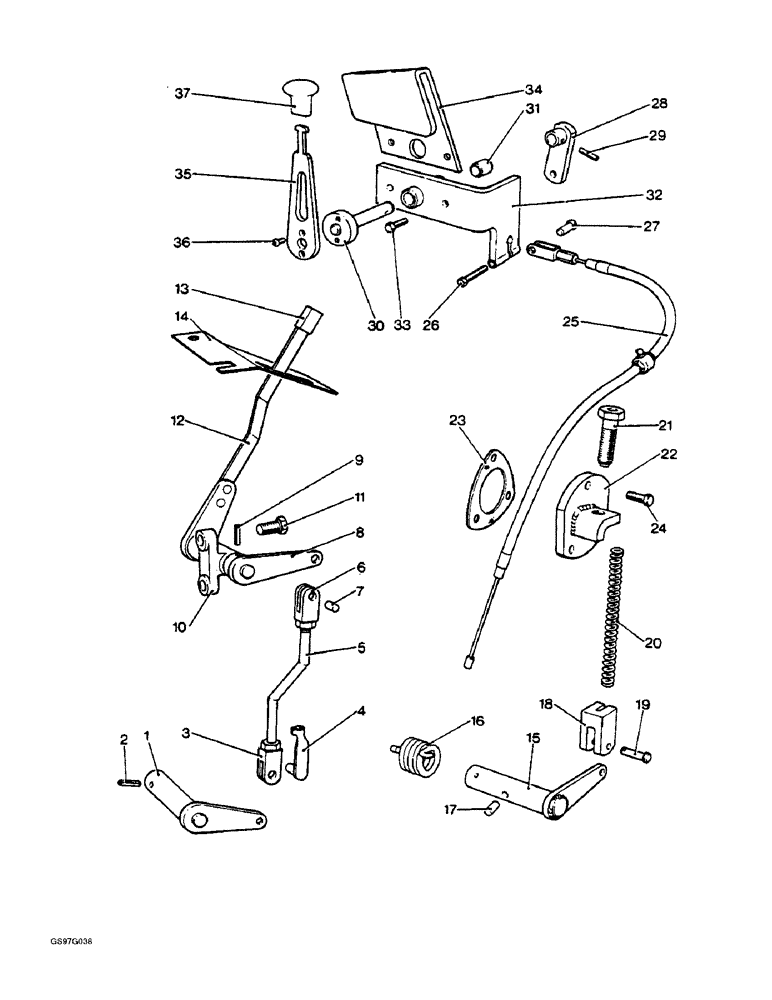

Запчасти Case IH 1210 (6-48) - ENGAGEMENT LEVER FOR TRANSFER GEARBOX, 1210, 1210G AND 1210Q FOUR-WHEEL DRIVE TRACTORS (06) - POWER TRAIN

K954329

SELECTOR

LEVER ASSEMBLY engagement, Kramer 1024100033, no longer available, Includes: Ref. 1 - 14

1шт.

Used with 1210 and 1210G four-wheel drive tractors.

1шт.

1

K964032

ROD

LEVER engagement (Replaces lever K951713)

1шт.

Used with 1210 and 1210G four-wheel drive tractors.

1шт.

2

K964118

SPLIT PIN

engagement lever (Replaces pin K950808)

1шт.

Used with 1210 and 1210G four-wheel drive tractors.

1шт.

3

K964145

YOKE

END fork (Replaces end K951716)

1шт.

Used with 1210 and 1210G four-wheel drive tractors.

1шт.

4

K963957

PIN

retaining (Replaces pin K951717)

1шт.

Used with 1210 and 1210G four-wheel drive tractors.

1шт.

5

K964043

SHAFT

ROD fork (Replaces rod K951715)

1шт.

Used with 1210 and 1210G four-wheel drive tractors.

1шт.

K964096

NUT

lock (Replaces nut K951725)

1шт.

Used with 1210 and 1210G four-wheel drive tractors.

1шт.

6

K964145

YOKE

END fork (Replaces end K951716)

1шт.

Used with 1210 and 1210G four-wheel drive tractors.

1шт.

7

K963994

fork end (Replaces pin K951730)

1шт.

Used with 1210 and 1210G four-wheel drive tractors.

1шт.

8

K964035

attaches to hand lever (Replaces lever K951723)

1шт.

Used with 1210 and 1210G four-wheel drive tractors.

1шт.

9

K954332

PIN

lever, Kramer 7514682183, no longer available

1шт.

Used with 1210 and 1210G four-wheel drive tractors.

1шт.

10

K964044

anchor (Replaces bracket K951718)

1шт.

Used with 1210 and 1210G four-wheel drive tractors.

1шт.

K964141

grease (Replaces fitting K951721)

1шт.

Used with 1210 and 1210G four-wheel drive tractors.

1шт.

11

K954330

SCREW

set, Kramer 7248677506, no longer available

2шт.

Used with 1210 and 1210G four-wheel drive tractors.

1шт.

K954331

WASHER

Kramer 7482682014, no longer available

2шт.

Used with 1210 and 1210G four-wheel drive tractors.

1шт.

12

K964034

LEVER

hand (Replaces lever K951722)

1шт.

Used with 1210 and 1210G four-wheel drive tractors.

1шт.

13

K963974

KNOB hand lever (Replaces knob K951727)

1шт.

Used with 1210 and 1210G four-wheel drive tractors.

1шт.

14

K954333

SELECTOR

GATE hand lever, Kramer 1024150164, no longer available

1шт.

Used with 1210 and 1210G four-wheel drive tractors.

1шт.

15

K952315

SHAFT

LEVER engagement, no longer available

1шт.

Used with 1210Q four-wheel drive tractors.

1шт.

16

K624890

COIL

SPRING return, engagement lever, no longer available

1шт.

Used with 1210Q four-wheel drive tractors.

1шт.

17

K691163

PIN

8 x 35 mm, no longer available

1шт.

Used with 1210Q four-wheel drive tractors.

1шт.

18

K622207

FORK

END

1шт.

Used with 1210Q four-wheel drive tractors.

1шт.

19

K69984

SPLIT PIN/SAFETY PIN

clevis, no longer available, order ring K621562 and pin K950269 below

1шт.

Used with 1210Q four-wheel drive tractors.

1шт.

K19472

WASHER

flat, 3/8 inch

1шт.

Used with 1210Q four-wheel drive tractors.

1шт.

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), (Replaces pin K19528) 3/32" x 3/4"

1шт.

Used with 1210Q four-wheel drive tractors.

1шт.

K621562

RING, SNAP

1шт.

K950269

PIN

pivot

1шт.

20

K625291

SPRING

return, cable, no longer available

1шт.

Used with 1210Q four-wheel drive tractors.

1шт.

21

K949629

ADJUSTER

cable

1шт.

Used with 1210Q four-wheel drive tractors.

1шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

hex jam, 5/8 inch NC (Replaces nut K607056)

1шт.

Used with 1210Q four-wheel drive tractors.

1шт.

22

K951124

PLATE

BRACKET anchor, no longer available

1шт.

Used with 1210Q four-wheel drive tractors.

1шт.

23

K916652

GASKET

bracket to main frame

1шт.

Used with 1210Q four-wheel drive tractors.

1шт.

24

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Bracket to main frame, 5/16 NC x 3/4 inch (Replaces setscrew K602803)

3шт.

Used with 1210Q four-wheel drive tractors.

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , bracket to main frame 5/16"

3шт.

Used with 1210Q four-wheel drive tractors.

1шт.

25

K951130

CABLE

flexible, inner and outer

1шт.

Used with 1210Q four-wheel drive tractors.

1шт.

26

K600154

BOLT

hex, 1/4 NC x 1-3/4 inch

1шт.

Used with 1210Q four-wheel drive tractors.

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer K626341) 1/4"

1шт.

Used with 1210Q four-wheel drive tractors.

1шт.

425-104

NUT,1/4"-20, Cl 5

1шт.

Used with 1210Q four-wheel drive tractors.

1шт.

27

K625941

PIN

clevis

1шт.

Used with 1210Q four-wheel drive tractors.

1шт.

K626682

WASHER

flat, 5/16 inch

1шт.

Used with 1210Q four-wheel drive tractors.

1шт.

K19528

PIN

cotter, 3/32 x 3/4 inch

1шт.

Used with 1210Q four-wheel drive tractors.

1шт.

28

K952260

LEVER

operating

1шт.

Used with 1210Q four-wheel drive tractors.

1шт.

29

438-11214

LOCK PIN,4.76mm OD x 22.23mm L, Slotted

Pin, (Replaces pin K623740) 3/16" x 7/8", Slotted

1шт.

Used with 1210Q four-wheel drive tractors.

1шт.

30

K952257

SHAFT

hand lever

1шт.

Used with 1210Q four-wheel drive tractors.

1шт.

31

K628759

BUSHING

pivot bracket

2шт.

Used with 1210Q four-wheel drive tractors.

1шт.

32

K952255

BRACKET

pivot, no longer available

1шт.

Used with 1210Q four-wheel drive tractors.

1шт.

33

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Hex, 5/16"-18 x 7/8", G5, Bracket to cab (Replaces setscrew K602849)

2шт.

Used with 1210Q four-wheel drive tractors.

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , bracket to cab (Replaces washer K19481) 5/16"

2шт.

Used with 1210Q four-wheel drive tractors.

1шт.

34

K952263

PLATE

GATE hand lever, no longer available

1шт.

Used with 1210Q four-wheel drive tractors.

1шт.

35

K952264

LEVER

hand

1шт.

Used with 1210Q four-wheel drive tractors.

1шт.

36

K605632

SCREW

hex, 1/4 NC x 3/8 inch

2шт.

Used with 1210Q four-wheel drive tractors.

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer K626341) 1/4"

2шт.

Used with 1210Q four-wheel drive tractors.

1шт.

37

K901738

KNOB

hand lever

1шт.

Used with 1210Q four-wheel drive tractors.

1шт.
