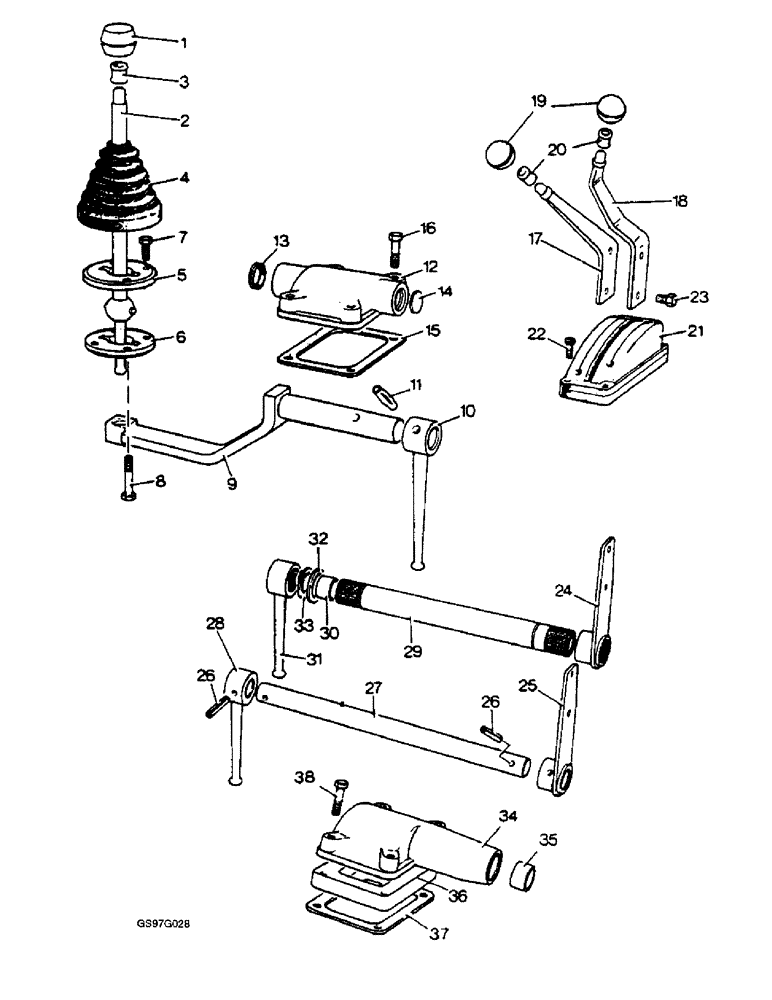

Запчасти Case IH 1210 (6-42) - GEAR SHIFT LEVERS, 1210Q, 1210SK AND 1210SKG TRACTORS FOR EUROPE ONLY (06) - POWER TRAIN

1

K950690

BALL KNOB

gear lever, no longer available

1шт.

2

K955595

SELECTOR

LEVER gear, used with tractor serial number 11158600 and after, no longer available

1шт.

2

K950696

SELECTOR

LEVER gear, used with tractor serial numbers prior to 11158600, no longer available

1шт.

3

D38662

RING

retaining, knob to lever (Replaces ring K628474)

1шт.

4

K950494

RUBBER

GAITER gear lever

1шт.

5

K950490

BALL

HOUSING, upper, no longer available

1шт.

6

K950489

BALL

HOUSING, lower, no longer available

1шт.

7

K613988

SCREW

set, No. 10 NF x 3/4 inch

1шт.

92-3

LOCK WASHER,#10

WASHER, LOCK, (Replaces washer K19488) #10

1шт.

8

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

(Replaces setscrew K602737) Hex, 1/4"-20 x 1", G5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, (Replaces washer K626341) 1/4"

2шт.

9

K950414

SELECTOR

SHAFT, no longer available

1шт.

10

K950623

SELECTOR

LEVER, no longer available

1шт.

11

38-32022

PIN,5/16" x 1 3/8", Coiled

5/16 x 1-1/2 inch (Replaces pin K623775)

1шт.

12

K950243

HOUSING

selector shaft

1шт.

13

K623630

SEAL

oil, 7/8 x 1-1/8 x 1/8 inch

1шт.

14

41-16

PLUG,Exp, 1"

expansion, housing (Replaces plug K623810)

1шт.

15

K950543

GASKET,0.2mm Thk

housing

1шт.

16

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

hex, 5/16 NC x 1-1/2 inch (Replaces bolt K602809)

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer K19481) 5/16"

4шт.

17

K953812

LEVER

hand, upper, high-low, used with 1210Q tractors with serial numbers prior to 11158600, no longer available

1шт.

17

K955254

LEVER

hand, upper, high-low, used with 1210Sk and 1210SkG tractors with serial number 11158600 and after, no longer available

1шт.

18

K953810

LEVER

hand, upper, slow-normal, no longer available

1шт.

19

K950690

BALL KNOB

KNOB hand levers

2шт.

20

D38662

RING

retaining, knobs to levers (Replaces ring K28474)

2шт.

21

K950822

RUBBER

GAITER hand levers, no longer available

1шт.

22

K614950

SCREW

set, No. 10 NF x 1 inch, no longer available (Replaces screw K615408)

4шт.

K626310

WASHER

flat, 3/16 inch, no longer available

4шт.

23

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

hex, 51/6 NC x 1/2 inch, four used with 1210Q tractors, two used with 1210Sk and 1210SkG tractors (Replaces setscrew K602840)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer K19481) 5/16"

4шт.

23

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

hex, 5/16 NC x 1-1/2 inch, used with 1210Sk and 1210SkG tractors (Replaces bolt K600365)

2шт.

K955255

BUSHING

SPACER hand lever, used with 1210Sk and 1210SkG tractors, no longer available

1шт.

24

K950429

LEVER

hand, lower, high-low

1шт.

25

K950436

LEVER

hand, lower, slow-normal, no longer available

1шт.

26

435-5824

GROOVED PIN,1/4" x 1 1/2", Type E

PIN, GROOVED, (Replaces pin K623726) 1/4" x 1 1/2", Type E

2шт.

27

K950003

SELECTOR

SHAFT

1шт.

28

K950370

SELECTOR

LEVER

1шт.

29

K950001

SELECTOR

TUBE

1шт.

30

K621303

BUSHING

selector tube

2шт.

31

K950371

SELECTOR

LEVER, high-low

1шт.

32

K950002

BUSHING

WASHER, 1 inch

1шт.

33

K11128

CIRCLIP

1 inch external

2шт.

34

K950000

HOUSING

selector

1шт.

35

K628750

BUSHING

housing

1шт.

36

K950754

BUSHING

SPACER, housing to gearbox cover

1шт.

37

K950543

GASKET,0.2mm Thk

housing to gearbox cover

1шт.

38

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

hex, housing to gearbox cover, 5/16 NC x 3 inch

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , housing to gearbox cover 5/16"

4шт.
