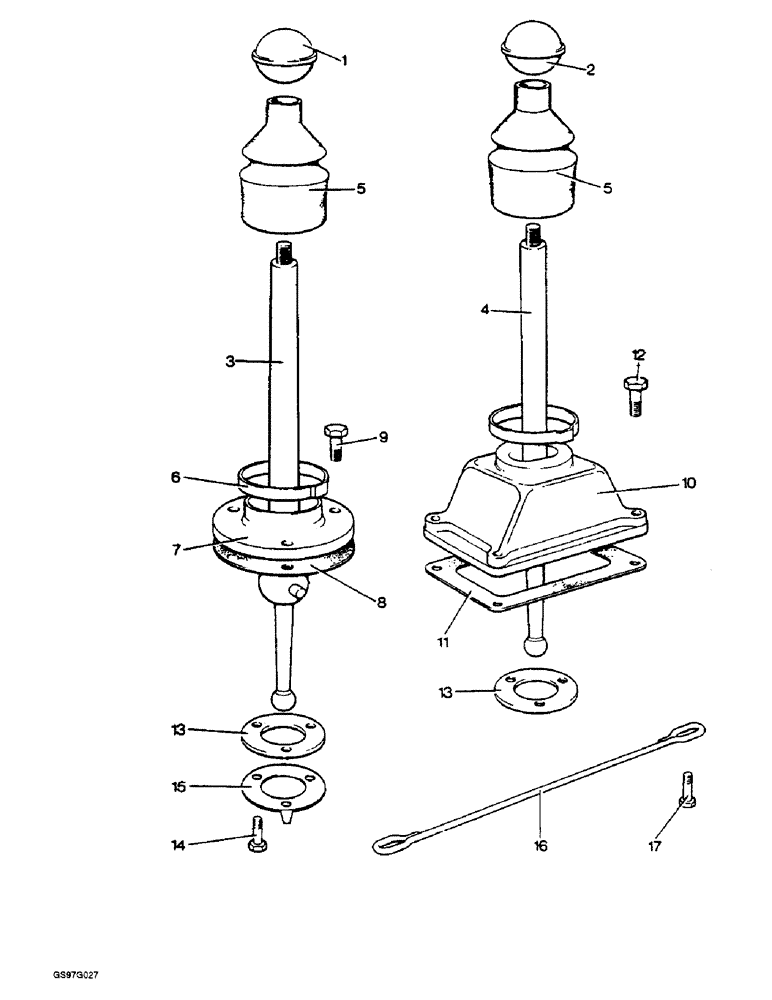

Запчасти Case IH 1210 (6-40) - GEAR SHIFT LEVERS, 1210 AND 1210G TRACTORS (06) - POWER TRAIN

1

K902270

KNOB

gear lever (Replaces knob K920787)

1шт.

2

K902270

KNOB

range lever

1шт.

3

K915598

SELECTOR

LEVER gear, first, second, third and reverse

1шт.

4

K943843

SELECTOR

LEVER range, high-low, no longer available

1шт.

5

K929631

BOOT

EXCLUDER dirt

2шт.

6

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

CLAMP, HOSE, , Adjustable (Replaces clip K621957) #28, 1.31/2.25 Type F Worm

2шт.

7

K929630

HOUSING

ball, gear lever

1шт.

8

K901835

GASKET

housing to bearbox cover

1шт.

9

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Housing to gearbox cover (Replaces setscrew K602705) Hex, 1/4"-20 x 1", G5

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Housing to gearbox cover (Replaces washer K19480) 1/4"

3шт.

10

K929629

BALL

HOUSING, range lever

1шт.

11

K915597

GASKET,0.2mm Thk

housing to gearbox cover

1шт.

12

13-418

BOLT,Hex, 1/4" - 20 x 1-1/8", Gr 5

Housing to gearbox cover (Replaces setscrew K602706) Hex, 1/4"-20 x 1 1/8", G5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Housing to gearbox cover (Replaces washer K19480) 1/4"

4шт.

13

K903074

SUPPORT

PLATE

2шт.

14

163-18

SCREW,Hex, #10 - 24 x 3/8"

machine, hex head, No. 10 NC x 3/8 inch, plates to housing (Replaces setscrew K603630)

6шт.

15

K904386

WASHER

tab, Serial Range: plates-housing

2шт.

16

K914348

SPRING

range lever

1шт.

17

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Spring to gearbox cover Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

234-10025

NUT,Crown, 1/4"-20

dome, spring to gearbox cover, 1/4 inch NC (Replaces nut K607251)

2шт.
