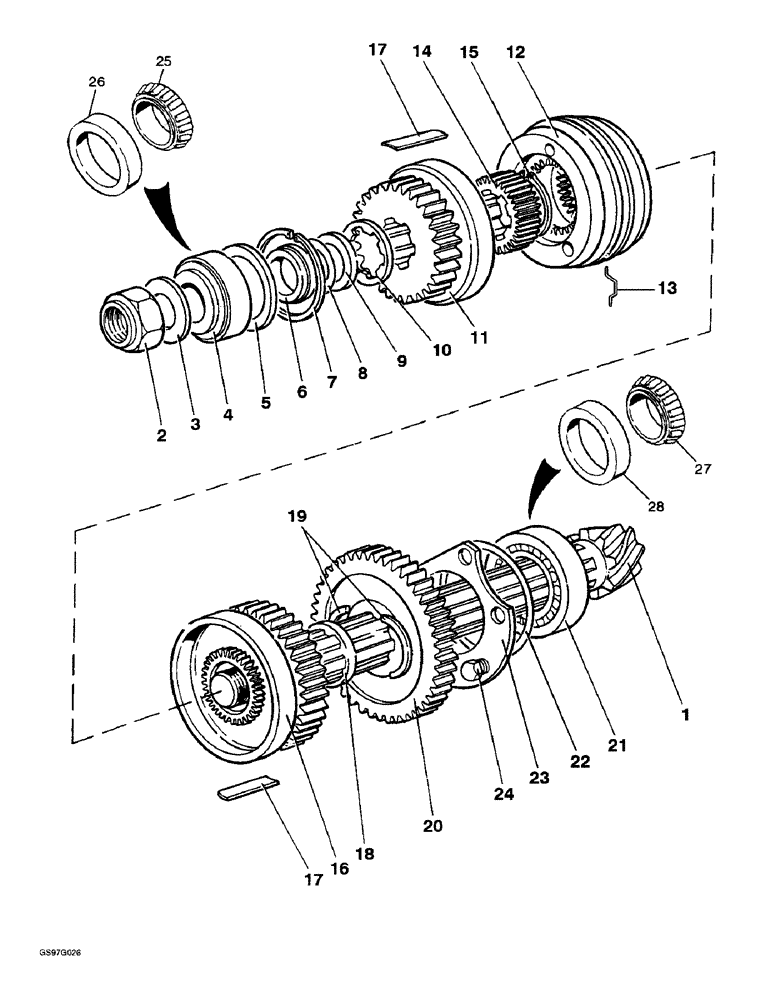

Запчасти Case IH 1210 (6-38) - BEVEL PINION SHAFT (06) - POWER TRAIN

1

K964873

GEAR-SET

PINION bevel, includes spiral gear, 7/43 tooth

1шт.

Used with 1210, 1210Q, 1210G and 1210Sk tractors.

1шт.

1

K964872

WHEEL

PINION bevel, includes spiral gear, 7/43 tooth

1шт.

Used with 1210, 1210Q and 1210G four-wheel drive tractors.

1шт.

2

K623317

LOCK NUT

special, left-hand (Replaces nut K622803)

1шт.

2

K921817

NUT

special, 1-3/8 inch

1шт.

Used with 1210, 1210Q and 1210G four-wheel drive tractors.

1шт.

3

K14687

WASHER

special, 1-1/8 inch

1шт.

Used with 1210, 1210Q, 1210G and 1210Sk tractors.

1шт.

3

K921819

WASHER

special, 1-3/8 inch

1шт.

Used with 1210, 1210Q and 1210G four-wheel drive tractors.

1шт.

K921818

WASHER

tab

1шт.

Used with 1210, 1210Q and 1210G four-wheel drive tractors.

1шт.

4

K620061

BEARING, ROLLER

tapered, no longer available, order cup 197608R1 and bearing 197609R91, Ref. 25 and 26

1шт.

5

K627253

BUSHING

SPACER tapered roller bearing

1шт.

6

K17023

CIRCLIP

RING snap, 3 inch internal

1шт.

7

K917844

BUSHING

SPACER distance

1шт.

8

K917845

SHIM,35.32mm ID x 50.8mm OD x 0.05mm Thk

0.002 inch

1шт.

8

K917846

SHIM

0.005 inch

1шт.

8

K917847

SHIM

0.010 inch

1шт.

8

K917848

SHIM

0.030 inch

1шт.

9

K940969

BUSHING

SPACER distance

1шт.

10

K940975

DISC

WASHER special

1шт.

11

K942816

GEAR

high, 28 tooth

1шт.

12

K207796

GEAR

sliding, includes cones (Replaces gear K923223)

1шт.

13

K926266

SPRING

sliding gear

6шт.

14

K206501

GEAR

dog clutch (Replaces gear K943435)

2шт.

15

K621865

RING, SNAP

1-3/4 inch external

1шт.

16

K942817

GEAR

medium, 35 tooth

1шт.

17

K940989

PLATE

PAD bearing

12шт.

18

K948670

WASHER

special

1шт.

19

K945962

PACKING RING

split, two halves

2шт.

20

K942461

GEAR

low, 41 tooth

1шт.

21

K620062

BEARING, ROLLER

tapered roller, no longer available, order cup 107577R1 and bearing 107576R91, Ref. 27 and 28

1шт.

22

K910457

SHIM,.002" Thk

1шт.

22

K910456

SHIM,.005" Thk

1шт.

22

K910455

SHIM

0.010 inch

1шт.

22

K910454

SHIM,.030" Thk

1шт.

23

K940982

COVER

PLATE, rear bearing

1шт.

24

K603043

SCREW

set, 7/16 NC x 1 inch, no longer available

5шт.

25

197609R91

BEARING ASSY,1.375" ID x 3" OD x 1.125"

tapered roller

1шт.

26

197608R1

BEARING ASSY,1.375" ID x 3" OD x 1.1562"

BEARING CUP, Tapered roller

1шт.

27

107576R91

ROLLER BEARING,2" ID x 4.125" OD x 1.375"

tapered roller

1шт.

28

107577R1

BEARING, CUP

tapered roller

1шт.
