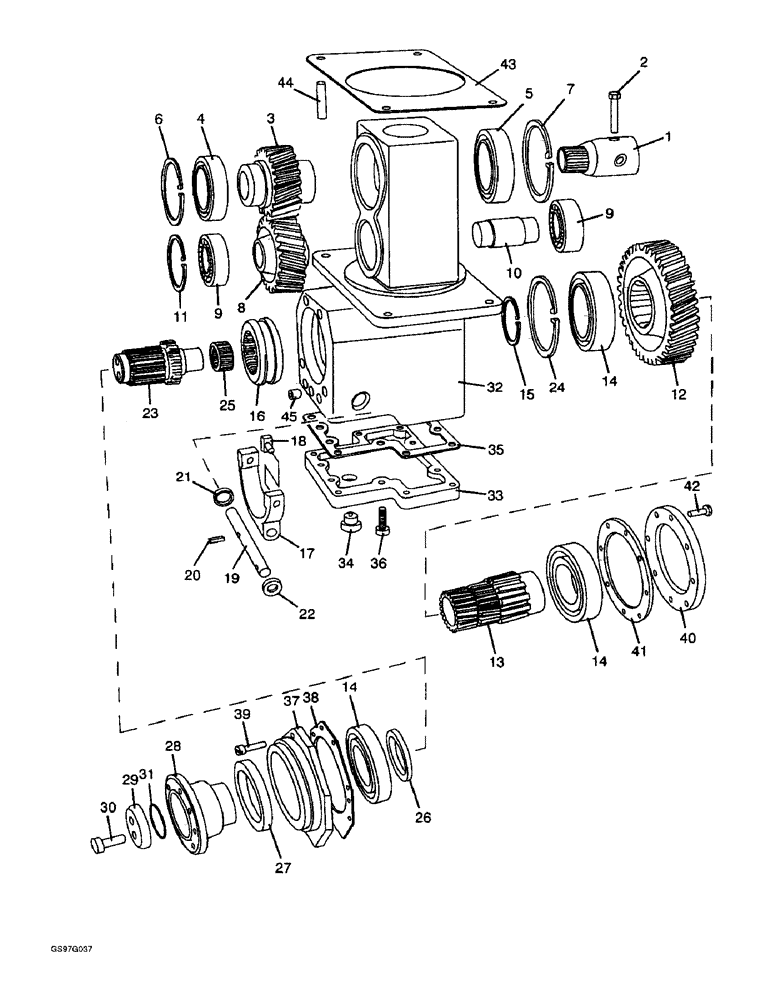

Запчасти Case IH 1210 (6-34) - TRANSFER GEARBOX, 1210 AND 1210Q FOUR-WHEEL DRIVE TRACTORS (06) - POWER TRAIN

1

K950796

COUPLING, BREAK AWAY

gearbox pinion shaft, Kramer 1024100126, no longer available

1шт.

2

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

hex, 5/16 NC x 2-1/4 inch (Replaces bolt K600211)

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer K19481) 5/16"

1шт.

K964098

NUT

hex, 5/16 inch NC (Replaces nut K607326)

1шт.

K949355

TRANSMISSION

GEARBOX ASSEMBLY transfer, no longer available, Includes: Ref. 3 - 42

1шт.

3

K950780

DRIVE

GEAR drive, 22 tooth, Kramer 1024150314

1шт.

4

K950782

BEARING

ball, Kramer 7611062011

1шт.

5

K950781

BEARING

ball, Kramer 7611062012

1шт.

6

K964112

(Replaces ring K950784)

1шт.

7

K950783

RING, SNAP

108 mm internal, Kramer 749682100

1шт.

8

K950785

GEAR

intermediate, 25 tooth, Kramer 1024150414

1шт.

9

K950786

ROLLER

BEARING, Kramer 7622000068

2шт.

10

K950787

SHAFT

intermediate, Kramer 1024150521

1шт.

11

P36245

CIRCLIP

RING snap (Replaces ring K950788)

2шт.

12

K950789

GEAR

driven, 40 tooth, Kramer 1024150514

1шт.

13

K950790

SHAFT

driven, Kramer 1024151021, no longer available

1шт.

14

K950791

BEARING

ball, Kramer 7611062013, no longer available

3шт.

15

K964109

(Replaces ring K950794)

1шт.

16

K950306

sliding (Replaces clutch K9508061)

1шт.

17

K964065

selector (Replaces fork K950805)

1шт.

18

K963995

trunnion, selector fork (Replaces pin K951690)

2шт.

19

K950807

SELECTOR

SHAFT, Kramer 1024150121

1шт.

20

K964118

SPLIT PIN

roll, 8 x 28 mm (Replaces pin K950808)

1шт.

21

K964101

PLUG

core, 30 mm diameter (Replaces plug K950809)

1шт.

22

K964125

OIL SEAL

18 x 30 x 7 mm (Replaces seal K954328)

1шт.

23

K950797

SHAFT

output, Kramer 1024150621

1шт.

24

K951720

110 mm internal, Kramer 7491682110

2шт.

25

K963968

needle roller (Replaces bearing K607326)

1шт.

26

K964020

output shaft (Replaces spacer K950799)

1шт.

27

K963979

OIL SEAL

(Replaces seal K950800)

1шт.

28

K954373

FLANGE

driving, Kramer 1002295495, no longer available

1шт.

29

K964066

retaining (Replaces plate K950802)

1шт.

30

K964084

(Replaces screw K950803)

2шт.

31

K951758

O-RING

42 mm ID, Kramer 0009961307, no longer available

1шт.

32

K951706

GEAR

HOUSING transfer gearbox, Kramer 1024150404, no longer available

1шт.

33

K964038

base (Replaces plate K950775)

1шт.

34

K963955

PLUG

magnetic (Replaces plug K950778)

1шт.

K964123

OIL SEAL

WASHER seating, plug (Replaces washer K950779)

1шт.

35

K951707

GASKET

Kramer 0009961011

1шт.

36

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

hex, full threads, 10 - 1.5 x 35 mm (Replaces screw K950776)

12шт.

K964104

WASHER spring, 9 mm (Replaces washer K950777)

12шт.

37

K953264

COVER

front, Kramer 1024150508, no longer available

1шт.

38

K951826

GASKET

front cover, Kramer 0009961811

1шт.

39

K964088

SCREW cap, Kramer 7252677082

6шт.

K964102

WASHER spring (Replaces washer K951692)

6шт.

40

K964051

COVER rear (Replaces cover K950814)

1шт.

41

K951898

GASKET

rear cover, Kramer 0009961711

1шт.

42

K950815

SCREW

set, Kramer 7236677133

8шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer K19481) 5/16"

8шт.

43

K946451

GASKET

laminated, transfer box to tractor main frame, no longer available

1шт.

44

K608611

STUD

transfer box to tractor main frame, 5/8 NC x 1-3/4 inch, no longer available

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , Transfer box to tractor main frame (Replaces washer K19485) 5/8"

4шт.

425-1010

NUT,5/8"-11, G5

Transfer box to tractor main frame (Replaces nut K607006) 5/8"-11, G5

4шт.

45

K951893

SCREW

locating, M10 x 1 mm, Kramer 7330670001

1шт.
