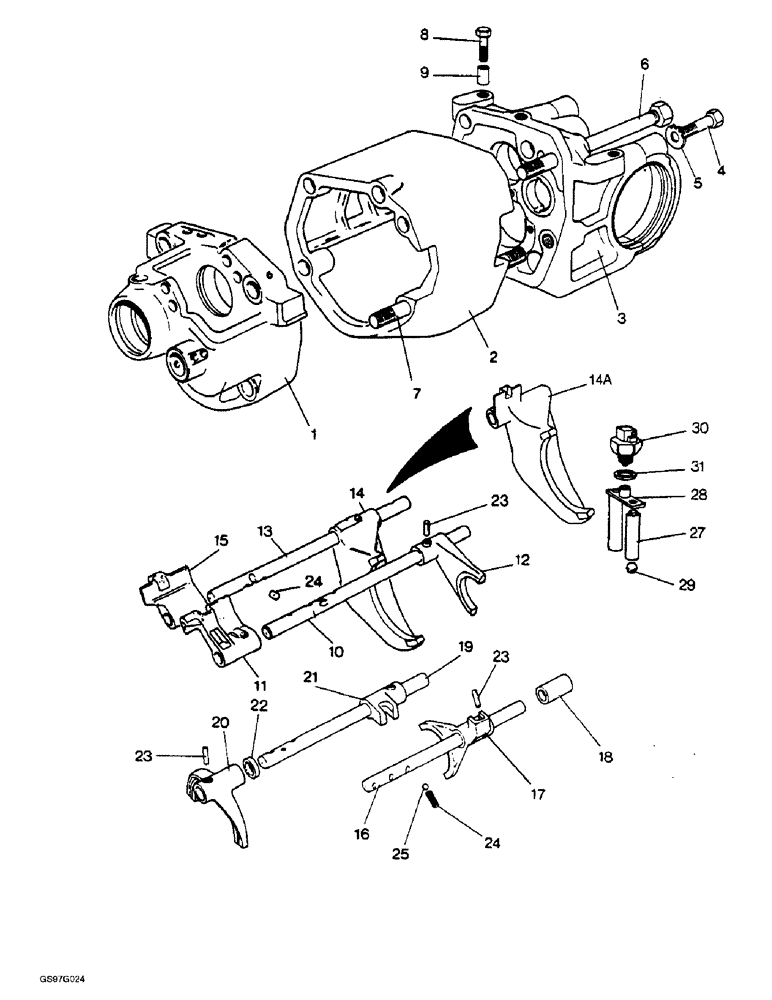

Запчасти Case IH 1210 (6-30) - GEARBOX ASSEMBLIES, HOUSING & SELECTOR MECHANISM, 1210Q, 1210SK & 1210Q 4WD TRACTORS FOR EUROPE ONLY (06) - POWER TRAIN

K941661

GEARBOX

complete, 12 speed synchromesh, used with 1210Q and 1210Sk tractors, no longer available

1шт.

K941662

GEARBOX

complete, 12 speed synchromesh, used with 1210Q four-wheel drive tractors, no longer available

1шт.

1

K917726

PLATE

end, front, housing and selector mechanism

1шт.

2

K949893

BUSHING

SPACER end plates, housing and selector mechanism

1шт.

3

K955020

PLATE

ASSEMBLY end, rear, with bearing caps, no longer available, order Ref. 32 - 34, housing and selector mechanism

1шт.

4

26-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 8

hex, 5/8 NC x 3-3/4 inch (Replaces bolt K601242), housing and selector mechanism

4шт.

5

K626389

BEARING WASHER

WASHER tab, housing and selector mechanism

4шт.

6

K940990

STUD

BOLT hex, 5/8 NC x 14-1/4 inch, housing and selector mechanism

2шт.

7

K940991

STUD

5/8 NC x 14-1/4 inch, housing and selector mechanism

2шт.

K607331

NUT

hex, self-locking, 5/8 inch NC, housing and selector mechanism

4шт.

8

K601306

BOLT

special, 5/8 NC x 2-1/2 inch, no longer available, housing and selector mechanism

2шт.

9

K920656

BUSHING

BUSHING end plate, housing and selector mechanism

2шт.

K626239

SHIM,.010" Thk

Housing and selector mechanism .010" Thk

1шт.

10

K949895

SELECTOR

ROD , first and reverse, housing and selector mechanism

1шт.

11

K954125

SELECTOR

JAW, first and reverse, housing and selector mechanism

1шт.

12

K942472

SELECTOR

FORK, first and reverse, housing and selector mechanism

1шт.

13

K207164

SELECTOR

ROD, second and third (Replaces rod K949896), housing and selector mechanism

1шт.

14

K940986

SHIFTER FORK

selector, second and third, no longer available, order one-piece fork K206543, Ref. 14A, housing mechanism

1шт.

14a

K206543

FORK

selector, second and third, one-piece (Replaces two-piece fork K940986), housing mechanism

1шт.

15

K950359

SELECTOR

JAW, second and third, used with fork K940986, order fork K206543, Ref. 14A, housing and selector mechanism

1шт.

16

K949898

SELECTOR

ROD, high-low, no longer available, housing and selector mechanism

1шт.

17

K950260

SELECTOR

FORK, high-low, housing and selector mechanism

1шт.

18

K953526

BUSHING

SLEEVE high-low, housing and selector mechanism

1шт.

19

K949897

SELECTOR

ROD, slow-normal, no longer available, housing and selector mechanism

1шт.

20

K928567

SELECTOR

FORK, slow-normal, housing and selector mechanism

1шт.

21

K950259

SELECTOR

JAW, slow-normal, housing and selector mechanism

1шт.

22

K953530

BUSHING

SPACER slow-normal, housing and selector mechanism

1шт.

23

K623887

PIN,5.21mm OD x 25.4mm L

3/16 x 1-1/8 inch (Replaces pin K623748), housing and selector mechanism

7шт.

24

K13507

SPRING

selector rod, housing mechanism

4шт.

25

K13506

BALL

steel, 3/8 inch, housing and selector mechanism

4шт.

26

K30430

LOCKING DEVICE

gear, first, second, third and reverse, housing and selector mechanism

1шт.

27

K945208

PLUNGER

safety switch, no longer available, housing and selector mechanism

1шт.

28

K945204

PLUNGER

PLATE includes plunger, housing and selector mechanism

1шт.

29

K13506

BALL

steel, 3/8 inch, housing and selector mechanism

2шт.

30

K262714

SWITCH

safety, starter (Replaces switches K940288 and K262714), housing and selector mechanism

1шт.

31

K626895

SHIM,.002" Thk

Housing and selector mechanism .002" Thk

1шт.

31

K626858

SHIM,.005" Thk

Housing and selector mechanism .005" Thk

1шт.

31

K626894

SHIM,.010" Thk

Housing and selector mechanism .010" Thk

1шт.

32

K200516

PLATE

end, rear, with bearing caps, not shown, housing and selector mechanism

1шт.

33

K620158

TAPERED BEARING

tapered, not shown, housing and selector mechanism

1шт.

34

K626983

SHIM,.002" Thk

Bevel pinion, Not shown, Housing and selector mechanism .002" Thk

1шт.

34

K626984

SHIM,.005" Thk

Bevel pinion, Not shown, Housing and selector mechanism .005" Thk

1шт.

34

K626985

SHIM

bevel pinion, 0.015 inch thick, not shown, housing and selector mechanism

1шт.

34

K626986

SHIM,.030" Thk

Bevel pinion, Not shown, Housing and selector mechanism .030" Thk

1шт.
