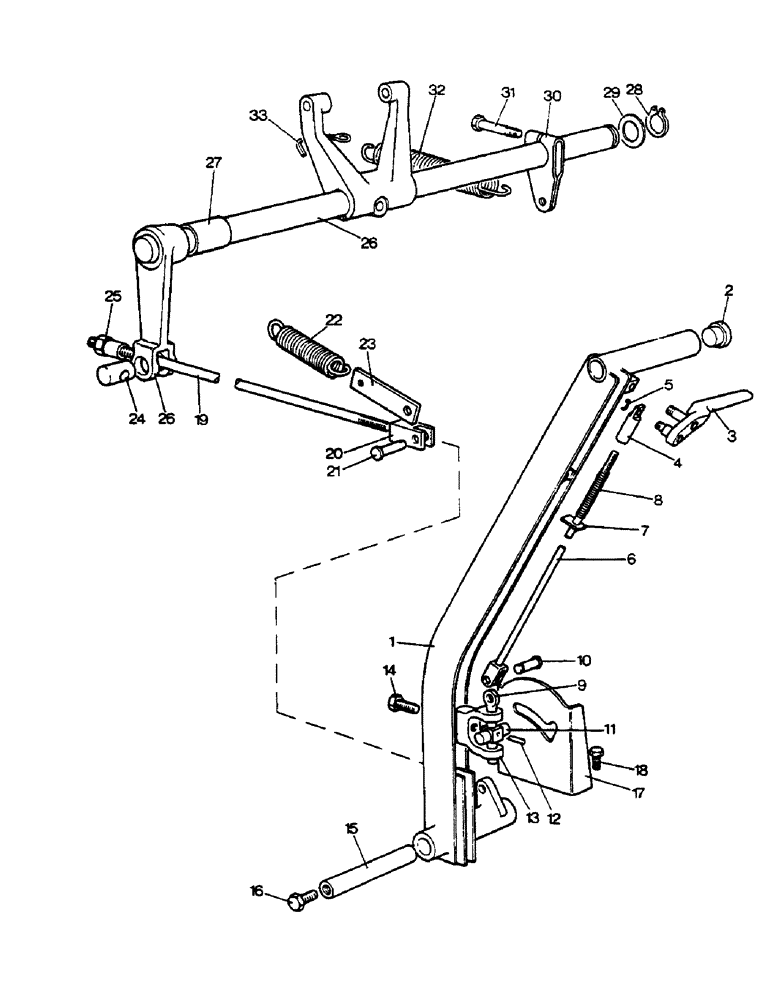

Запчасти Case IH 1210 (6-22) - HAND LEVER FOR POWER TAKE-OFF CLUTCH, 1210, 1210G, 1212 AND 1212G TRACTORS (06) - POWER TRAIN

1

K952638

LEVER

hand, no longer available

1шт.

2

K628081

PLUG

plastic, 7/8 inch

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper (Replaces fitting K13176) 1/4"-28 NPT x .54" lg

1шт.

K626662

WASHER

flat, 1/4 inch (Replaces washer K19470)

1шт.

3

K919403

LATCH

LEVER release

1шт.

4

K919395

ROD

YOKE, 5/16 inch NF

1шт.

5

100-3321

SNAP RING,#X21, .185" Dia, E-Type

Ring, Retaining, (Replaces clip K621592) #X21, .185" Dia, E-Type

3шт.

6

K928613

ROD

latch

1шт.

7

K918897

SHIM

PLATE stop, no longer available

1шт.

8

K625207

SPRING

latch, no longer available

1шт.

9

K918899

PLUNGER

latch

1шт.

10

K919396

CLEVIS

PIN, 1/4 x 3/8 inch

1шт.

11

K200240

PIN

LATCH hand lever, tractor serial number 11159092 and after, no longer available

1шт.

11

K962576

LEVER

LATCH hand lever, tractor serial numbers, Serial Range: prior-11159092

1шт.

12

38-1811

LOCK PIN,1/8" x 11/16", Slotted

Pin, , replaces pin K623931 1/8" x 11/16", Slotted

1шт.

13

K918898

BRACKET

anchor

1шт.

14

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

hex, bracket to lever, 5/16 NC x 1 inch

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , bracket to lever (Replaces washer K19481) 5/16"

1шт.

15

K916674

LUG

SHAFT pivot, hand lever

1шт.

16

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch (Replaces bolt K600475)

1шт.

492-11038

LOCK WASHER,3/8"

NC (Replaces washer K19482) 3/8"

1шт.

K962576

LEVER

KIT and guide bracket, tractor serial numbers prior to 11159092 (Replaces left-hand bracket K919401 and right-hand bracket K919402), Includes: Ref. 17 and Pin

1шт.

17

K956402

BRACKET

left-hand, tractor serial number 11159092 and after, no longer available

1шт.

17

K956403

BRACKET

right-hand, tractor serial number 11159092 and after

1шт.

K200240

PIN

guide brackets

1шт.

18

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Brackets to frame platform

4шт.

K262682

WASHER flat, brackets to frame platform, 5/16 inch

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , brackets to frame platform 5/16"

4шт.

19

K918906

ROD

hand lever to cross shaft

1шт.

280136

NUT,3/8"-16, G8

1шт.

20

K916677

FORK

END, 3/8 NC

1шт.

21

K14227

PIN

clevis, 3/8 x 1-1/16 inch, no longer available

1шт.

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), (Replaces pin K19528) 3/32" x 3/4"

1шт.

22

K624935

SPRING

return, hand lever

1шт.

23

K924167

SPRING

PLATE anchor

1шт.

24

K14744

PIN

3/4 x 1-1/2 inch

1шт.

25

K607525

NUT

adjusting, 3/8 inch NC (Replaces nut K607504)

1шт.

280136

NUT,3/8"-16, G8

1шт.

26

K915996

ARM

SHAFT AND ARM cross

1шт.

27

K627170

BUSHING

SPACER cross-shaft

1шт.

28

K11128

CIRCLIP

1 inch

1шт.

29

K626749

WASHER

Belleville, 1 inch

1шт.

30

K916477

LEVER

return spring

1шт.

31

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Lever to cross shaft Hex, 3/8"-16 x 2", G5

1шт.

K19472

WASHER

flat, lever to cross-shaft, 3/8 inch

1шт.

492-11038

LOCK WASHER,3/8"

lever to cross-shaft 3/8"

1шт.

280136

NUT,3/8"-16, G8

Lever to cross-shaft 3/8"-16, G8

1шт.

32

K624909

SPRING

return, cross-shaft

1шт.

33

K916478

SPRING

ANCHOR return

1шт.
