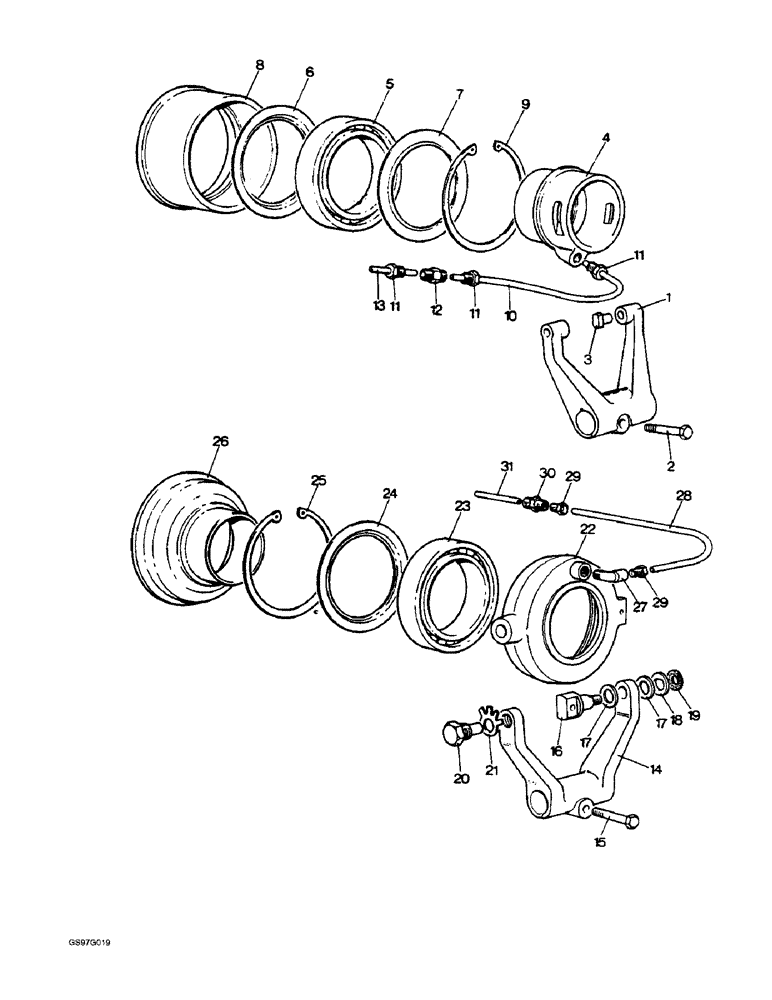

Запчасти Case IH 1210 (6-20) - RELEASE MECHANISM FOR POWER TAKE-OFF CLUTCH (06) - POWER TRAIN

1

K928940

FORK

Laycock clutch

1шт.

Used with 1210, 1210G, 1210Q and 1210Sk tractors with serial number 11154230 and after.

1шт.

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

Woodruff, No. 608, fork to cross shaft

2шт.

Used with 1210, 1210G, 1210Q and 1210Sk tractors with serial number 11154230 and after.

1шт.

2

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Fork to cross shaft (Replaces K600406) Hex, 3/8"-16 x 1 3/4", G5

1шт.

Used with 1210, 1210G, 1210Q and 1210Sk tractors with serial number 11154230 and after.

1шт.

492-11038

LOCK WASHER,3/8"

fork to cross shaft 3/8"

1шт.

Used with 1210, 1210G, 1210Q and 1210Sk tractors with serial number 11154230 and after.

1шт.

280136

NUT,3/8"-16, G8

Fork to cross shaft 3/8"-16, G8

1шт.

Used with 1210, 1210G, 1210Q and 1210Sk tractors with serial number 11154230 and after.

1шт.

3

K84748

TRUNNION

PIN, clutch fork

2шт.

Used with 1210, 1210G, 1210Q and 1210Sk tractors with serial number 11154230 and after.

1шт.

4

K928939

CARRIER

HOUSING release bearing

1шт.

Used with 1210, 1210G, 1210Q and 1210Sk tractors with serial number 11154230 and after.

1шт.

5

K19177

BALL BEARING,76.2mm ID x 114.3mm OD x 19.05mm W

ball, clutch release

1шт.

Used with 1210, 1210G, 1210Q and 1210Sk tractors with serial number 11154230 and after.

1шт.

6

K928741

RETAINER,76.33mm ID x 111.13mm OD x 0.79mm Thk

SHIELD dirt, front

1шт.

Used with 1210, 1210G, 1210Q and 1210Sk tractors with serial number 11154230 and after.

1шт.

7

K928742

RETAINER

SHIELD dirt, rear

1шт.

Used with 1210, 1210G, 1210Q and 1210Sk tractors with serial number 11154230 and after.

1шт.

8

K928938

SLEEVE,104.78mm ID x 139.7mm OD x 55.56mm L

thrust, release bearing

1шт.

Used with 1210, 1210G, 1210Q and 1210Sk tractors with serial number 11154230 and after.

1шт.

9

K12777

RING, SNAP

4-1/2 inch ID

1шт.

Used with 1210, 1210G, 1210Q and 1210Sk tractors with serial number 11154230 and after.

1шт.

10

K926410

TUBE,0.122" ID x 0.187" OD

plastic (Replaces tube K928740)

1шт.

Used with 1210, 1210G, 1210Q and 1210Sk tractors with serial number 11154230 and after.

1шт.

11

K617956

NUT

union, 3/8 inch NF

3шт.

Used with 1210, 1210G, 1210Q and 1210Sk tractors with serial number 11154230 and after.

1шт.

K622407

FERRULE

OLIVE, 1/4 inch

2шт.

Used with 1210, 1210G, 1210Q and 1210Sk tractors with serial number 11154230 and after.

1шт.

12

K626045

FITTING

UNION, 3/8 inch NF

1шт.

Used with 1210, 1210G, 1210Q and 1210Sk tractors with serial number 11154230 and after.

1шт.

222-651

SLEEVE,3/16" Tube, Comp

Tapered (Replaces olive K19588) 3/16" Tube, Comp

1шт.

Used with 1210, 1210G, 1210Q and 1210Sk tractors with serial number 11154230 and after.

1шт.

13

K926411

TUBE,0.187" OD x 2.625" L

PIPE main frame, 3/16 x 2-7/8 inch (73 mm) long

1шт.

Used with 1210, 1210G, 1210Q and 1210Sk tractors with serial numbers prior to 11154230; 1212, 1212G, 1212Q and 1212Sk tractors.

1шт.

14

K915832

CLUTCH FORK

Borg and Beck clutch

1шт.

Used with 1210, 1210G, 1210Q and 1210Sk tractors with serial numbers prior to 11154230; 1212, 1212G, 1212Q and 1212Sk tractors.

1шт.

K19162

KEY Woodruff, No. 608, fork to cross shaft, no longer available

2шт.

Used with 1210, 1210G, 1210Q and 1210Sk tractors with serial numbers prior to 11154230; 1212, 1212G, 1212Q and 1212Sk tractors.

1шт.

15

K600406

BOLT

hex, 3/8 NC x 1-3/4 inch, fork to cross shaft

1шт.

Used with 1210, 1210G, 1210Q and 1210Sk tractors with serial numbers prior to 11154230; 1212, 1212G, 1212Q and 1212Sk tractors.

1шт.

492-11038

LOCK WASHER,3/8"

fork to cross shaft 3/8"

1шт.

Used with 1210, 1210G, 1210Q and 1210Sk tractors with serial numbers prior to 11154230; 1212, 1212G, 1212Q and 1212Sk tractors.

1шт.

280136

NUT,3/8"-16, G8

Fork to cross shaft 3/8"-16, G8

1шт.

Used with 1210, 1210G, 1210Q and 1210Sk tractors with serial numbers prior to 11154230; 1212, 1212G, 1212Q and 1212Sk tractors.

1шт.

16

K925323

TRUNNION,14.27mm OD x 57.15mm L

right-hand

1шт.

Used with 1210, 1210G, 1210Q and 1210Sk tractors with serial numbers prior to 11154230; 1212, 1212G, 1212Q and 1212Sk tractors.

1шт.

B88459

SPLIT PIN

cotter, 3/16 x 1-3/8 inch (Replaces pin K26230)

1шт.

Used with 1210, 1210G, 1210Q and 1210Sk tractors with serial numbers prior to 11154230; 1212, 1212G, 1212Q and 1212Sk tractors.

1шт.

17

K262720

WASHER,15mm ID x 25mm OD x 2mm Thk

WASHER friction, 3/8 inch (Replaces washer K84749)

2шт.

Used with 1210, 1210G, 1210Q and 1210Sk tractors with serial numbers prior to 11154230; 1212, 1212G, 1212Q and 1212Sk tractors.

1шт.

18

K925338

BEARING WASHER

special, 3/8 inch

1шт.

Used with 1210, 1210G, 1210Q and 1210Sk tractors with serial numbers prior to 11154230; 1212, 1212G, 1212Q and 1212Sk tractors.

1шт.

19

K626723

BELLEVILLE WASHER

Belleville, 3/8 inch

6шт.

Used with 1210, 1210G, 1210Q and 1210Sk tractors with serial numbers prior to 11154230; 1212, 1212G, 1212Q and 1212Sk tractors.

1шт.

232-1446

NUT,3/8"-16, GC

NUT, LOCK, (Replaces nut K607302) 3/8"-16, GC

1шт.

Used with 1210, 1210G, 1210Q and 1210Sk tractors with serial numbers prior to 11154230; 1212, 1212G, 1212Q and 1212Sk tractors.

1шт.

20

K915833

PIN

trunnion, left-hand

1шт.

Used with 1210, 1210G, 1210Q and 1210Sk tractors with serial numbers prior to 11154230; 1212, 1212G, 1212Q and 1212Sk tractors.

1шт.

21

K626399

WASHER

tab, trunnion pin

1шт.

Used with 1210, 1210G, 1210Q and 1210Sk tractors with serial numbers prior to 11154230; 1212, 1212G, 1212Q and 1212Sk tractors.

1шт.

22

K915837

BEARING HOUSING

thrust bearing

1шт.

Used with 1210, 1210G, 1210Q and 1210Sk tractors with serial numbers prior to 11154230; 1212, 1212G, 1212Q and 1212Sk tractors.

1шт.

23

K19177

BALL BEARING,76.2mm ID x 114.3mm OD x 19.05mm W

thrust, PTO clutch

1шт.

Used with 1210, 1210G, 1210Q and 1210Sk tractors with serial numbers prior to 11154230; 1212, 1212G, 1212Q and 1212Sk tractors.

1шт.

24

K84745

SEAL,88.01mm ID x 114.17mm OD x 0.56mm Thk

SHIELD chip

1шт.

Used with 1210, 1210G, 1210Q and 1210Sk tractors with serial numbers prior to 11154230; 1212, 1212G, 1212Q and 1212Sk tractors.

1шт.

25

K621431

RING, SNAP

RING SNAP, 4-1/2 inch

1шт.

Used with 1210, 1210G, 1210Q and 1210Sk tractors with serial numbers prior to 11154230; 1212, 1212G, 1212Q and 1212Sk tractors.

1шт.

26

K84740

THRUST PLATE

1шт.

Used with 1210, 1210G, 1210Q and 1210Sk tractors with serial numbers prior to 11154230; 1212, 1212G, 1212Q and 1212Sk tractors.

1шт.

27

222-2101

ELBOW,90 Degree, Flareless, 5/16"-24 x 1/8 NPT

90 degree, male, 5/16 inch tube (Replaces elbow K19587)

1шт.

Used with 1210, 1210G, 1210Q and 1210Sk tractors with serial numbers prior to 11154230; 1212, 1212G, 1212Q and 1212Sk tractors.

1шт.

28

K926410

TUBE,0.122" ID x 0.187" OD

plastic, 1/8 x 14-1/2 inch (368 mm) long

1шт.

Used with 1210, 1210G, 1210Q and 1210Sk tractors with serial numbers prior to 11154230; 1212, 1212G, 1212Q and 1212Sk tractors.

1шт.

29

K617956

NUT

union, 3/8 inch NF

3шт.

Used with 1210, 1210G, 1210Q and 1210Sk tractors with serial numbers prior to 11154230; 1212, 1212G, 1212Q and 1212Sk tractors.

1шт.

K622407

FERRULE

OLIVE, 1/4 inch

1шт.

Used with 1210, 1210G, 1210Q and 1210Sk tractors with serial numbers prior to 11154230; 1212, 1212G, 1212Q and 1212Sk tractors.

1шт.

30

K626045

FITTING

UNION, 3/8 inch NF

1шт.

Used with 1210, 1210G, 1210Q and 1210Sk tractors with serial numbers prior to 11154230; 1212, 1212G, 1212Q and 1212Sk tractors.

1шт.

K19588

FERRULE

OLIVE, 3/16 inch

1шт.

Used with 1210, 1210G, 1210Q and 1210Sk tractors with serial numbers prior to 11154230; 1212, 1212G, 1212Q and 1212Sk tractors.

1шт.

31

K926411

TUBE,0.187" OD x 2.625" L

PIPE main frame, 3/16 x 2-7/8 inch (18 mm) long

1шт.

Used with 1210, 1210G, 1210Q and 1210Sk tractors with serial numbers prior to 11154230; 1212, 1212G, 1212Q and 1212Sk tractors.

1шт.
