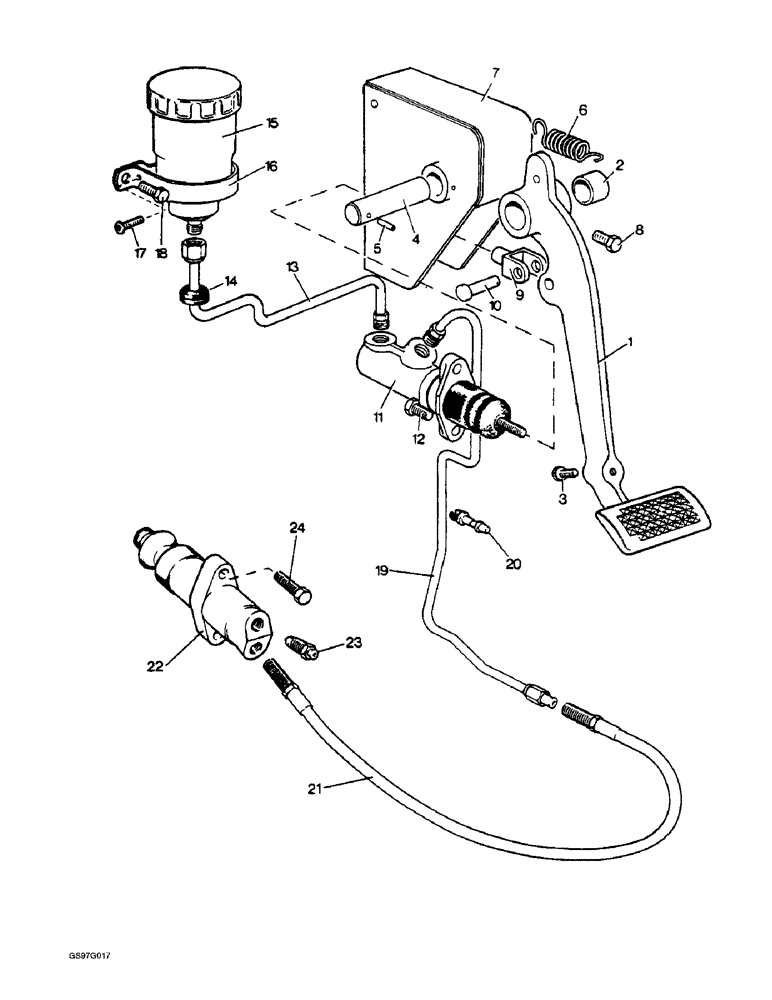

Запчасти Case IH 1210 (6-16) - RELEASE MECHANISM FOR TRANSMISSION CLUTCH, HYDRAULIC COMPONENTS, TRACTORS FOR EUROPE ONLY (06) - POWER TRAIN

1

K965160

CLUTCH

PEDAL, includes bushing, used with 1210Q and 1212Q tractors with serial number 1159092 and after; 1210Sk, 1210SkG, 1212Sk and 1212SkG tractors with serial number 11158048 and after, no longer available

1шт.

1

K954318

PEDAL

ASSEMBLY clutch, used with 1210Q and 1212Q tractors with serial numbers prior to 1159092; 1210Sk, 1210SkG, 1212Sk and 1212SkG tractors with serial numbers prior to 11158048, Includes: Ref. 2

1шт.

2

K628754

BUSHING

clutch pedal

1шт.

3

K609206

SCREW

hex, 1/4 NC x 1 inch, pedal stop

1шт.

4

K950569

PIN

pivot, clutch pedal, no longer available

1шт.

5

K19552

GROOVED PIN,1/8" x 1 1/8", Type A

pivot pin to bracket 1/8" x 1 1/8", Type A

1шт.

6

K624947

SPRING

pedal return

1шт.

7

K954831

SUPPORT

BRACKET, clutch pedal, used with 1210Q and 1212Q tractors with serial number 1159092 and after; 1210Sk, 1210SkG, 1212Sk and 1212SkG tractors with serial number 11158048 and after, no longer available

1шт.

7

K949098

SUPPORT

BRACKET, clutch pedal, used with 1210Q and 1212Q tractors with serial numbers prior to 1159092; 1210Sk, 1210SkG, 1212Sk and 1212SkG tractors with serial numbers prior to 11158048, no longer available

1шт.

8

K602846

SCREW,5/16" - 18 x 5/8", Gr S

set, 5/16 NC x 5/8 inch, Serial Range: bracket-cab

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , bracket to cab 5/16"

2шт.

9

K622205

FORK

END, 5/16 NF

1шт.

10

K625954

PIN

clevis, 5/16 x 1-3/16 inch, no longer available

1шт.

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), (Replaces pin K11934) 1/16" x 1/2"

1шт.

425-115

NUT,5/16"-24, G5

lock, 5/16 inch NF (Replaces nut K616981)

1шт.

11

K950544

CYLINDER,36.32mm Stroke

ASSEMBLY master, mineral oil seals

1шт.

K964572

SEAL KIT

seal, mineral oil

1шт.

12

K602858

SCREW

set, 5/16 NC x 3-3/4 inch, used with 1210Q and 1212Q tractors with serial number 1159092 and after; 1210Sk, 1210SkG, 1212Sk and 1212SkG tractors with serial number 11158048 and after, no longer available

1шт.

B90396

HARDWARE

NUT lock, 5/16 inch, used with 1210Q and 1212Q tractors with serial number 1159092 and after; 1210Sk, 1210SkG, 1212Sk and 1212SkG tractors with serial number 11158048 and after (Replaces nut K607081)

1шт.

12

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

hex, cylinder to cab, 5/16 NC x 1-1/8 inch, used with 1210Q and 1212Q tractors with serial numbers prior to 1159092; 1210Sk, 1210SkG, 1212Sk and 1212SkG tractors with serial numbers prior to 11158048

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , cylinder to cab 5/16"

2шт.

13

K951343

PIPE

reservoir to master cylinder, used with 1210Q and 1212Q tractors, no longer available

1шт.

13

K954504

PIPE

reservoir to master cylinder, used with 1210Sk and 1212Sk tractors, no longer available

1шт.

14

K627748

GROMMET

7/8 inch, no longer available

1шт.

15

K951526

RESERVOIR

ASSEMBLY clutch, Includes: Cap and Cover

1шт.

K964488

CAP

filler, reservoir

1шт.

K964813

COVER

filler cap, blue, no longer available

1шт.

16

K624873

CLIP

reservoir, no longer available

1шт.

17

K614946

SCREW,Pan, #10 - 32 x 3/4"

set, No. 10 NF x 3/4 inch

1шт.

92-3

LOCK WASHER,#10

WASHER, LOCK, (Replaces washer K19488) #10

1шт.

225-14210

NUT,#10-32

(Replaces nut K617080) #10-32

1шт.

18

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

set, 5/16 NC x 3/4 inch

1шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer K19481) 5/16"

1шт.

19

K954405

PIPE

master cylinder to flexible, used with 1210Q and 1212Q tractors, no longer available

1шт.

19

K954503

PIPE

master cylinder to flexible, used with 1210Sk and 1212Sk tractors, no longer available

1шт.

20

K625008

CLIP

pipe, used with 1210Q and 1212Q tractors

1шт.

20

K621728

PIPE

CLIP, used with 1210Sk and 1212Sk tractors, no longer available

1шт.

K603925

SCREW,Pan, 1/4" - 20 x 5/8"

hex, 1/4 NC x 5/8 inch, used with 1210Sk and 1212Sk tractors, no longer available

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Used with 1210Sk and 1212Sk tractors (Replaces washer K626341) 1/4"

1шт.

425-104

NUT,1/4"-20, Cl 5

(Replaces nut K607043) 1/4"-20, G5

1шт.

21

K952511

PIPE

flexible, M12 x 16-3/8 inch (416 mm) long, no longer available

1шт.

K652100

LOCK NUT

lock, M12

1шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer K626345) 1/2"

2шт.

22

K950550

CYLINDER

ASSEMBLY slave, mineral oil seals, no longer available, Includes: Ref. 23 and Kit

1шт.

K964576

SEAL KIT

seal

1шт.

23

K964534

SCREW,M12 x 1

bleed, M12

1шт.

24

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

hex, 5/16 NC x 1-1/8 inch, cylinder to cab mounting bracket (Replaces setscrew K602844)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , cylinder to cab mounting bracket (Replaces washer K19481) 5/16"

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, cylinder to cab mounting bracket (Replaces nut K607044)

2шт.
