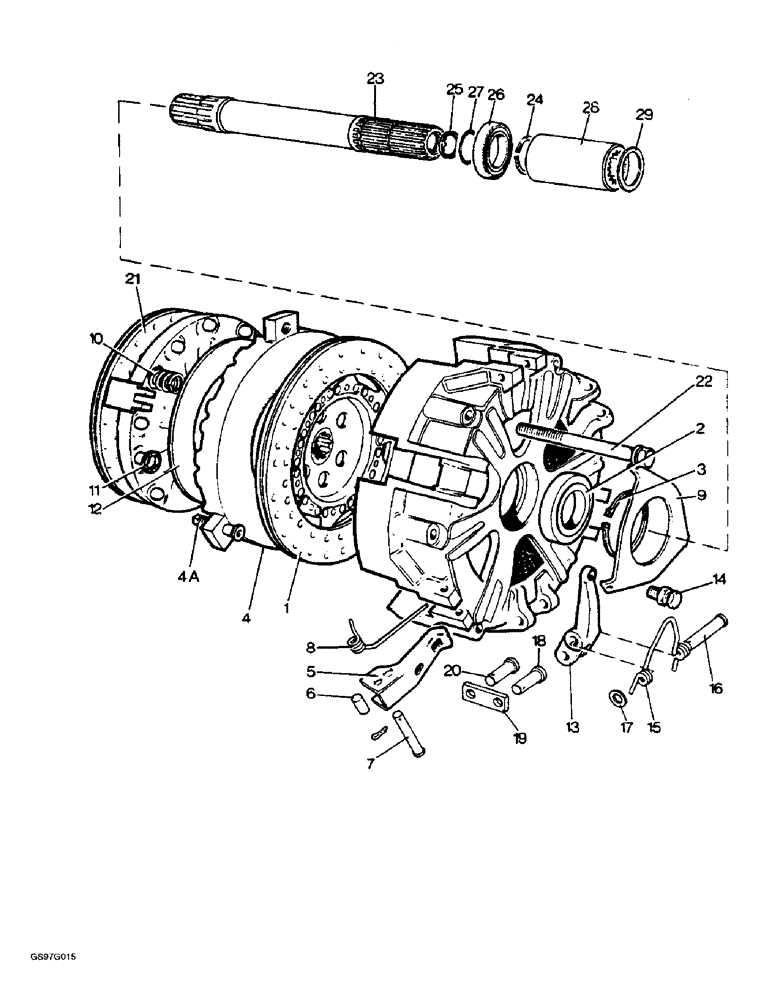

Запчасти Case IH 1210 (6-10) - DUAL CLUTCH UNIT, LAYCOCK (06) - POWER TRAIN

K954992

CLUTCH ASSEMBLY

12 inch, Laycock (Replaces clutch assembly K951600), Includes: Ref. 1 - 20 and Pin

1шт.

Used with 1210, 1210Q, 1210G and 1210Sk tractors with S/N 11154230 and after.

1шт.

1

1539027C1

CLUTCH DISC

PLATE ASSEMBLY driven, transmission, 12 inch (Replaces plate assembly K950877), Includes: Facings

1шт.

K963632

FACING

Thermoid, includes rivets, order plate assembly

1шт.

2

554553R91

BALL BEARING,45mm ID x 75mm OD x 16mm W

clutch cover (Replaces bearing K947051)

1шт.

3

800-2175

SNAP RING,M75, Int

clutch cover (Replaces ring K947052)

1шт.

4

K955007

PLATE, THRUST

pressure, transmission

1шт.

4a

K947045

BOLT

SCREW adjusting, set of three (Replaces screw K964946)

1шт.

K947042

NUT

lock, adjusting screw

3шт.

5

K206748

LEVER

release, transmission, set of three (Replaces lever K964945)

1шт.

6

K947046

ROLLER

release lever

3шт.

7

K947044

PIN

pivot, roller

3шт.

K947036

WASHER

pivot pin

3шт.

K947035

COTTER PIN

split, pivot

3шт.

8

K947049

SPRING

anti-rattle, transmission lever, order three K206749 springs and one K206750 release plate

3шт.

8

K206749

SPRING

transmission lever

3шт.

9

K206750

PLATE

transmission release lever (Replaces plate K947050)

1шт.

10

K951917

SPRING

thrust, pink

12шт.

11

1539029C1

WASHER

WASHER insulating, thrust springs (Replaces washer K947039)

24шт.

12

K952509

BELLEVILLE SPRING

Belleville thrust

1шт.

13

K947057

LEVER

release, PTO, (Replaces lever K964948)

1шт.

14

K963626

LOCK NUT,M10 x 1.25 x 30mm, Cl 10.9

adjusting, includes locknut, no longer available, order screw K943732 and nut K947054 below

3шт.

K943732

TUBE

SCREW adjusting

3шт.

K947054

NUT lock, adjusting screw

3шт.

15

K947037

SPRING

anti-rattle, PTO lever

3шт.

16

K947058

PIVOT PIN

pivot, PTO lever

3шт.

17

K947036

WASHER

pivot pin

6шт.

K947035

COTTER PIN

split, pivot

3шт.

18

K947060

PIN

pivot, PTO lever

3шт.

K947038

PIN

split, pivot

3шт.

19

K947059

LINK

PTO release, set of three (Replaces link K964947)

1шт.

20

K947041

PIN

pivot, PTO pressure plate

3шт.

432-68

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), (Replaces pin K947038) 3/32" x 1/2"

3шт.

21

1539018C1

CLUTCH DISC

PLATE ASSEMBLY driven, PTO, 12 inch (Replaces plate assembly K947089), Includes: Facings

1шт.

1539018C1R

REMAN-CLUTCH DISC

1210 & 1212 David Brown Diesel, Both S/N 11150001 & AFTER, N.A. Only

1шт.

21

1539018C1C

CORE-CLUTCH DISC

Return Number, For N.A. Only

1шт.

1539047C1

FACING, CLUTCH

F30C, includes rivets (Replaces facing K963633)

1шт.

22

413-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 5

hex, clutch to flywheel, 3/8 NC x 4-1/4 inch

6шт.

492-11038

LOCK WASHER,3/8"

clutch to flywheel (Replaces washer K19482) 3/8"

6шт.

K965818

CLUTCH

KIT clutch driveshaft, no longer available as a kit, order components, Includes: Ref. 23, Snout, and Seal

1шт.

Used with 1210, 1210G, 1210Q, 1210Sk and 1210SkG tractors with S/N 11161564 and after.

1шт.

23

K200498

SHAFT

drive, clutch

1шт.

K200487

SUPPORT

SNOUT, no longer available

1шт.

K623430

OIL SEAL

oil, support snout, 45 x 65 x 8 mm

1шт.

23

K928941

CLUTCH

SHAFT drive, used with 1210, 1210G, 1210Q, 1210Sk and 1210SkG tractors with serial numbers prior to 11161564, no longer available, order shaft K200498, snout K200487, seal K623430 and O-ring K268864 below

1шт.

24

100-11175

SNAP RING,#175, Ext

Ring, Snap, (Replaces circlip K12922) #175, Ext

2шт.

25

K262744

RING

sealing (Replaces ring K628123)

1шт.

26

554553R91

BALL BEARING,45mm ID x 75mm OD x 16mm W

ball, clutch driveshaft (Replaces bearing K620190)

1шт.

27

K628864

O-RING

1-1/2 inch ID, used with 1210, 1210G, 1210Q, 1210Sk and 1210SkG tractors with serial numbers, Serial Range: prior-11161564

1шт.

28

K945961

COUPLING, BREAK AWAY

muff

1шт.

29

K902106

SHIM,.032" Thk

1шт.
