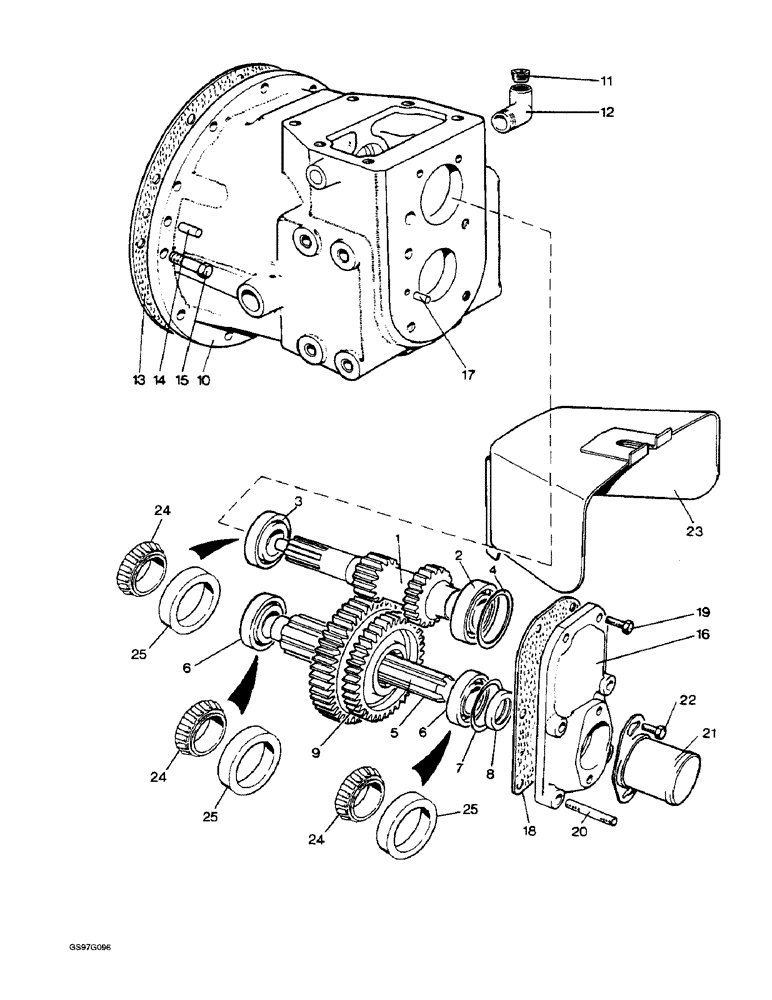

Запчасти Case IH 1210 (6-04) - MULTI-SPEED POWER TAKE-OFF (06) - POWER TRAIN

K918682

PTO

UNIT- PTO, complete, does not include operating lever, no longer available

1шт.

Used with 1210, 1212, 1210Q, 1212Q, 1210Sk, 1212Sk, 1210SkG and 1212SkG tractors.

1шт.

K922793

PTO

UNIT-PTO, complete, does not include operating lever and arm, used with 1210G and 1212G tractors, no longer available

1шт.

1

K202433

SHAFT

drive, multi-speed PTO, also order gear K202434, Ref. 9 (Replaces shaft K915556)

1шт.

2

K690766

TAPERED BEARING

tapered roller

1шт.

3

K620046

BEARING

tapered roller, no longer available, order cup 618024R1 and bearing 618023R91, Ref. 24 and 25 on Figure 6-4

1шт.

4

K626976

SHIM,.003" Thk

(Replaces shim K962848) .003" Thk

1шт.

4

K626977

SHIM,.005" Thk

(Replaces shim K962849) .005" Thk

1шт.

4

K626978

SHIM,.007" Thk

(Replaces shim K962850) .007" Thk

1шт.

4

K626979

SHIM,.010" Thk

(Replaces shim K962851) .010" Thk

1шт.

4

K626980

SHIM

0.028 inch (Replaces shim K962852)

1шт.

5

K915562

SHAFT

driven, multi-speed PTO

1шт.

6

K620046

BEARING

tapered roller, no longer available, order cup 618024R1 and bearing 618023R91, Ref. 24 and 25 on Figure 6-4

2шт.

7

K915557

SHIM,53.98mm ID x 64.29mm OD x 0.05mm Thk

(.002") 0.05mm Thk

1шт.

7

K915558

SHIM,53.98mm ID x 64.29mm OD x 0.08mm Thk

(0.003") 0.076mm Thk

1шт.

7

K915559

SHIM,53.98mm ID x 64.29mm OD x 0.13mm Thk

(0.005") 0.127mm Thk

1шт.

7

K915560

SHIM

0.010 inch, no longer available

1шт.

7

K915561

SHIM

0.028 inch

1шт.

8

K15177

OIL SEAL

oil, 1-3/8 x 2-1/8 x 3/8 inch (Replaces K1577)

1шт.

9

K202434

GEAR

38-44 tooth (Replaces gear K915563)

1шт.

10

K952697

CASE

HOUSING, SG Iron, multi-speed PTO, used with 1210G and 1212G tractors, no longer available

1шт.

10

K948930

CASE

HOUSING, multi-speed PTO

1шт.

Used with 1210, 1212, 1210Q, 1212Q, 1210Sk, 1212Sk, 1210SkG and 1212SkG tractors.

1шт.

41-1616

PLUG,Cup, 1", Stainless

Used with 1210 and 1212 tractors (Replaces plug K623789) Cup, 1", Stainless

1шт.

11

K12362

PLUG

taper, 1 BSP

1шт.

12

K622126

ELBOW oil filler, used with 1210Q, 1212Q, 1210Sk, 1212Sk, 1210SkG and 1212SkG tractors

1шт.

13

K205398

GASKET

PTO housing (Replaces gasket K922591)

1шт.

14

K61412

PIN

dowel, 7/16 x 1-1/4 inch

1шт.

15

413-722

BOLT,Hex, 7/16" - 14 x 1-3/8", Gr 5

hex, 7/16 NC x 1-3/8 inch (Replaces bolt K603006)

12шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, (Replaces washer K19483) 7/16"

12шт.

16

K915595

COVER

end

1шт.

17

K25360

PIN

dowel, 1/4 x 9/16 inch (Replaces pin K14577)

2шт.

18

K924217

GASKET

end cover

1шт.

19

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

hex, 5/16 NC x 1 inch (Replaces setscrew K602805)

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, (Replaces washer K19481) 5/16"

2шт.

20

K608311

STUD

7/16 NC x 2-5/16 inch

4шт.

Used with 1210, 1212, 1210Q, 1212Q, 1210Sk, 1212Sk, 1210SkG and 1212SkG tractors.

1шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, (Replaces washer K19483) 7/16"

4шт.

Used with 1210, 1212, 1210Q, 1212Q, 1210Sk, 1212Sk, 1210SkG and 1212SkG tractors.

1шт.

425-107

NUT,7/16"-14, G5

hex, 7/16 inch NC (Replaces nut K607003)

4шт.

Used with 1210, 1212, 1210Q, 1212Q, 1210Sk, 1212Sk, 1210SkG and 1212SkG tractors.

1шт.

20

K907546

STUD

special, 7/16 NC x 3-3/8 inch, used with 1210G and 1212G tractors

4шт.

K627060

BUSHING

PIECE distance, used with 1210G and 1212G tractors

4шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, , Used with 1210G and 1212G tractors 7/16"

4шт.

425-107

NUT,7/16"-14, G5

hex, 7/16 inch NC, Used with 1210G and 1212G tractors (Replaces nut K607046)

4шт.

21

K909111

COVER

PTO shaft

1шт.

22

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

hex, 5/16 NC x 1/2 inch (Replaces setscrew K602840)

2шт.

K626682

WASHER

flat, 5/16 inch

2шт.

23

K906893

GUARD

PTO

1шт.

24

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

tapered roller

3шт.

25

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Tapered roller

3шт.
