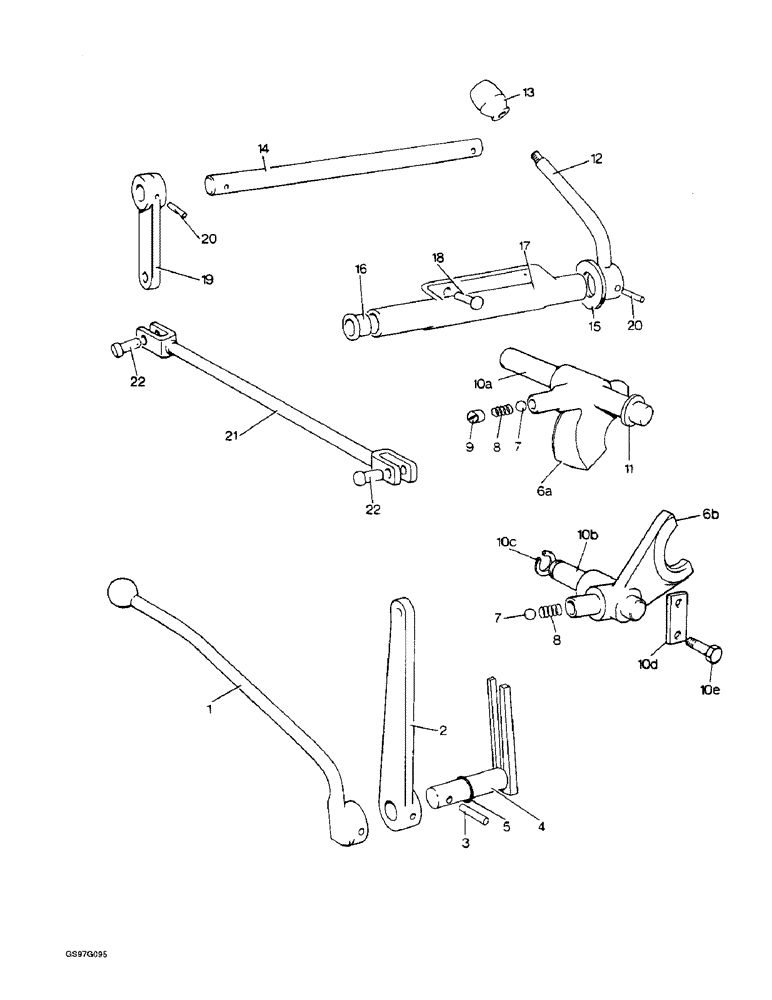

Запчасти Case IH 1210 (6-02) - POWER TAKE-OFF CONTROLS (06) - POWER TRAIN

1

K943716

LEVER

hand, multi-speed PTO, used with 1210, 1212, 1210G and 1212G tractors (Replaces lever K916574)

1шт.

1

K948404

LEVER

hand, reversible shaft PTO, used with 1210 and 1212 tractors

1шт.

425-148

JAM NUT,Jam, 1/2"-13, G5

Reversible shaft PTO, Used with 1210 and 1212 tractors (Replaces nut K607054) Jam, 1/2"-13, G5

1шт.

K948403

LEVER

BOSS hand, reversible shaft PTO, used with 1210 and 1212 tractors

1шт.

2

K951271

LEVER

operating, multi-speed PTO, used with 1210Q, 1212Q, 1210Sk, 1212Sk, 1210SkG and 1212SkG tractors, no longer available

1шт.

2

K951272

LEVER

operating, reversible shaft PTO, used with 1210Q, 1212Q, 1210Sk, 1212Sk, 1210SkG and 1212SkG tractors

1шт.

3

435-5824

GROOVED PIN,1/4" x 1 1/2", Type E

PIN, GROOVED, , Center (Replaces pin K623726) 1/4" x 1 1/2", Type E

1шт.

4

K915569

SELECTOR

LEVER

1шт.

K15499

WASHER

special, 3/4 inch

3шт.

4

K948401

SELECTOR

LEVER, reversible shaft PTO

1шт.

Used with 1210, 1212, 1210Q, 1212Q, 1210Sk, 1212Sk, 1210SkG and 1212SkG tractors.

1шт.

K19476

WASHER

selector lever, 3/4 inch, reversible shaft PTO

1шт.

Used with 1210, 1212, 1210Q, 1212Q, 1210Sk, 1212Sk, 1210SkG and 1212SkG tractors.

1шт.

K627461

WASHER

special, 3/4 inch, reversible shaft PTO, no longer available

1шт.

Used with 1210, 1212, 1210Q, 1212Q, 1210Sk, 1212Sk, 1210SkG and 1212SkG tractors.

1шт.

5

K625405

O-RING,0.549" ID x 0.103" Width

9/16 inch ID (Replaces O-ring K623557)

1шт.

6

K915568

SELECTOR

FORK, multi-speed PTO

1шт.

6

K948398

SHIFTER FORK

selector, reversible shaft PTO

1шт.

Used with 1210, 1212, 1210Q, 1212Q, 1210Sk, 1212Sk, 1210SkG and 1212SkG tractors.

1шт.

7

211-1008

BALL,1/4" Dia

chrome alloy steel, 1/4 inch, grade 24 (Replaces ball K17063)

1шт.

8

K24831

SPRING

selector fork

1шт.

9

81-3315

SET SCREW,5/16"-18 x 5/16", Slotted

set, slotted headless, 5/16 NC x 5/16 inch, multi-speed PTO (Replace screw K606021)

1шт.

10a

K915567

SELECTOR

ROD, multi-speed PTO

1шт.

K621470

RING, SNAP

CLIP circular, 12 mm, external, multi-speed PTO

1шт.

10b

K948399

SELECTOR

ROD, reversible shaft PTO

1шт.

Used with 1210, 1212, 1210Q, 1212Q, 1210Sk, 1212Sk, 1210SkG and 1212SkG tractors.

1шт.

10c

K11290

RING, SNAP

3/4 inch, external, reversible shaft PTO

1шт.

Used with 1210, 1212, 1210Q, 1212Q, 1210Sk, 1212Sk, 1210SkG and 1212SkG tractors.

1шт.

10d

K948400

PLATE

retaining, selector rod, reversible shaft PTO

1шт.

Used with 1210, 1212, 1210Q, 1212Q, 1210Sk, 1212Sk, 1210SkG and 1212SkG tractors.

1шт.

10e

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

hex, 1/4 NC x 5/8 inch, reversible shaft PTO (Replaces screw K602702)

2шт.

Used with 1210, 1212, 1210Q, 1212Q, 1210Sk, 1212Sk, 1210SkG and 1212SkG tractors.

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Reversible shaft PTO 1/4"

2шт.

Used with 1210, 1212, 1210Q, 1212Q, 1210Sk, 1212Sk, 1210SkG and 1212SkG tractors.

1шт.

11

K626890

WASHER

special, selector rod, multi-speed PTO, used with rod K915567, Ref. 10A

1шт.

12

K951627

LEVER

hand, no longer available

1шт.

Used with 1210Q, 1212Q, 1210Sk, 1212Sk, 1210SkG and 1212 SkG tractors.

1шт.

13

K950493

KNOB

hand lever

1шт.

Used with 1210Q, 1212Q, 1210Sk, 1212Sk, 1210SkG and 1212 SkG tractors.

1шт.

14

K951263

SHAFT

cross, no longer available

1шт.

Used with 1210Q, 1212Q, 1210Sk, 1212Sk, 1210SkG and 1212 SkG tractors.

1шт.

15

K952800

SEAL

support bracket

1шт.

Used with 1210Q, 1212Q, 1210Sk, 1212Sk, 1210SkG and 1212 SkG tractors.

1шт.

16

K628757

BUSHING

support bracket

2шт.

Used with 1210Q, 1212Q, 1210Sk, 1212Sk, 1210SkG and 1212 SkG tractors.

1шт.

17

K951640

SUPPORT

BRACKET, cross-shaft, no longer available

1шт.

Used with 1210Q, 1212Q, 1210Sk, 1212Sk, 1210SkG and 1212 SkG tractors.

1шт.

18

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

(Replaces setscrew K602983) Hex, 3/8"-16 x 7/8", G5, Full Thd

3шт.

Used with 1210Q, 1212Q, 1210Sk, 1212Sk, 1210SkG and 1212 SkG tractors.

1шт.

492-11038

LOCK WASHER,3/8"

(Replaces washer K19482) 3/8"

3шт.

Used with 1210Q, 1212Q, 1210Sk, 1212Sk, 1210SkG and 1212 SkG tractors.

1шт.

425-106

NUT,3/8"-16, Cl 5

(Replaces nut K607045) 3/8"-16, G5

3шт.

Used with 1210Q, 1212Q, 1210Sk, 1212Sk, 1210SkG and 1212 SkG tractors.

1шт.

19

K951267

SHAFT

LEVER cross-shaft, no longer available

1шт.

Used with 1210Q, 1212Q, 1210Sk, 1212Sk, 1210SkG and 1212 SkG tractors.

1шт.

20

K623746

PIN

3/16 x 1-1/4 inch, no longer available

2шт.

Used with 1210Q, 1212Q, 1210Sk, 1212Sk, 1210SkG and 1212 SkG tractors.

1шт.

21

K951268

ROD

operating

1шт.

Used with 1210Q, 1212Q, 1210Sk, 1212Sk, 1210SkG and 1212 SkG tractors.

1шт.

22

K14227

PIN

clevis, 3/8 x 1-1/16 inch, no longer available

2шт.

Used with 1210Q, 1212Q, 1210Sk, 1212Sk, 1210SkG and 1212 SkG tractors.

1шт.

132-380

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), (Replaces pin K623607) 3/32" x 3/4"

2шт.

Used with 1210Q, 1212Q, 1210Sk, 1212Sk, 1210SkG and 1212 SkG tractors.

1шт.
